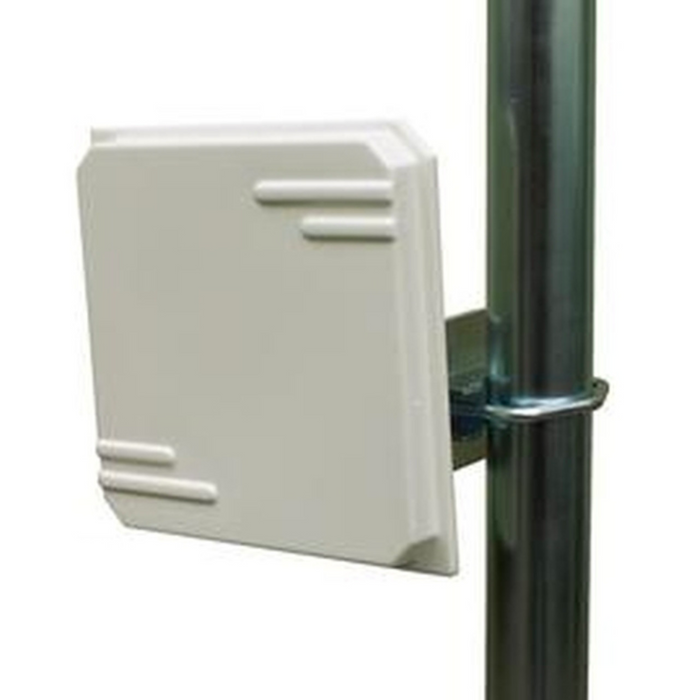

ITElite 3.5GHz 14dBi Outdoor Panel Antenna [PAT3514XP]

PAT3514XP by Itelite
Original price $44.00
Original price $44.00 - Original price $44.00
Original price $44.00
Current price $43.00
$43.00 - $43.00
Current price $43.00

Panel antenna working in 3.5 GHz frequency with full 2x14dBi gain in cross polarization. Designed for operation under severe weather conditions. Mounting hardware includes aluminum bracket and zinc galvanized U-bolt clamps which allows operation in salt water environments without corrosion. Heavy-duty mounting elements guarantee an easy elevation adjust as well as rock-stable operation. It can be used as client stations and as a small base station.

Product Features:

  • 2 x 14dBi Directional Gain
  • Cross Polarization
  • Highest Ingress Protection IP 66
  • High Quality Construction
  • Heavy-Duty Mounting Elements
  • Easy Elevation and Tilt Adjustment
  • 5 Year Warranty
  • Designed for All Weather Operation

Product Specifications

  • Frequency: 3.4 - 3.6 GHz
  • Gain: 2 x 14dBi
  • Polarization: Cross
  • Beam width degree horizontal: 20°
  • Beam width degree vertical: 20°
  • VSWR: <1.8
  • Impedance: 50Ω
  • Front to back ratio: > 35db
  • Input Connector: N-type / female
  • Operating Temperature: -40°F to 176°F (-40°C to 80°C )
  • Dimensions: 169 x 169 x 20 mm / 6.65" x 6.65" x 0.78"
  • Weight: 0.6 kg / 1.3 lbs

Product Includes

  • (1) Panel Antenna
  • (1) Mounting hardware kit (includes aluminum bracket and zinc galvanized U-bolt clamps and screw-pack)
