The Tycon Solar UPSPro UPAL48-14-900 outdoor backup power system is designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.

Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or over discharging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45°C.

There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

Applications

Wireless Base Stations and Clients
Surveillance Cameras
Wireless Bridge and Repeaters
Remote Sensors
Mission critical outdoor power
Backup Power Systems

Product Features

7 Gigabit 802.3at/ 24V Passive PoE Input
Weatherproof, UV resistant, outdoor enclosure
Powered from AC mains power and/or Solar
Interior space for customer electronics
Ground Mounting
Isolates Customer Equipment from Power Line Surges
High Quality GEL Sealed Lead Acid Batteries
Advanced battery charge controller protects against overcharge and over discharge

Product Specifications

Battery Voltage (DC): 48VDC
Input Voltage (AC): 120/240VAC, 50/60Hz, 5A Max.
Capacities (Amp Hour): 1440Ah
Avail. Storage Capacity (Watt Hour): 17,7280Whr
Max. Output Power: 900W
Suggested Maximum Load: 750W
Maximum Instantaneous Load: 30A 500msec
Battery Type: Valve Regulated Sealed Lead Acid / GEL
Battery Life: 5+ years
Battery Cable Fuse: 40A 250V Blade Fuse
Controller Type: 60A MPPT Solar Controller with Status Display and 30A Load with on/off switch
Maximum Solar Panel Size: 1560W @ 24V Battery Config, 3120W @ 48V Battery Config
Controller Display Status: Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
Bulk Charge: 28.8V / 57.6V
Float Charge: 27.5V / 55.2V
Over-discharge protection: 22V / 44V
Over-discharge recovery voltage: 25.2V / 50.4V
Controller Self Consumption: <1W

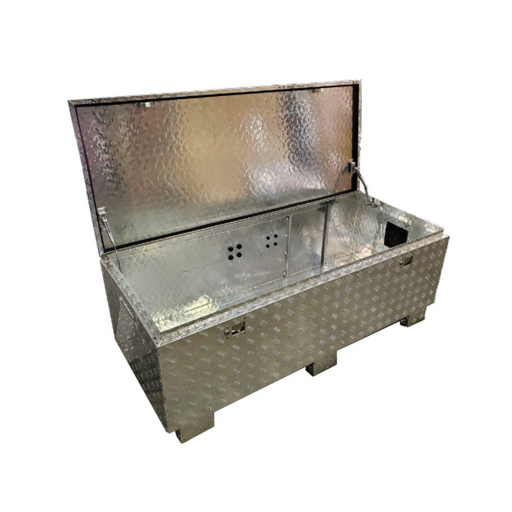

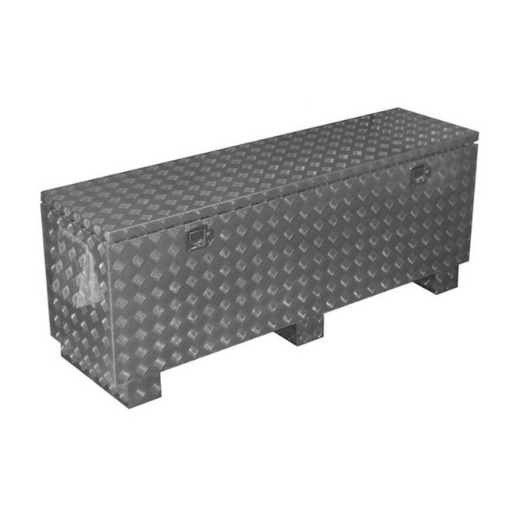

Enclosure Type: Ground Mount, Key Lock, Aluminum Diamond Plate
Enclosure Size: 65” x 28” x 18” (1651 x 711 x 457mm)
Operating Temperature: -40°C to +65°C (-40°F to 149°F)
System Weight (without batteries): 85lbs (35kg)
Battery Weight: 8 x 127lbs (58kg)
Certifications: Individual components used have CE Certifications.
Warranty: 3 Years

Product Includes
(1) Aluminum Enclosure

(8) Batteries

(1) MPPT Solar Charge Controller

(1) Power Supply
