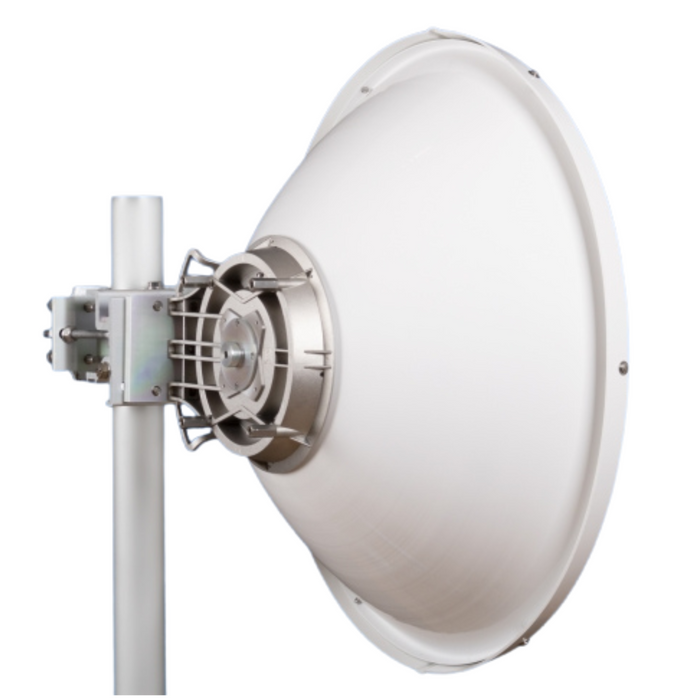

Jirous JRMC-680-10/11 11GHz Parabolic Dish Antenna New Generation with JDMW-900-AR Precision Mount

Jirous antenna JRMC – 680 – 10/11 is designed for microwave links at the frequency band 10 and 11 GHz. JRMC-680-10/11 comes with a deep reflector dish design with a massive holder. . The antenna is supplied with a holder that allows easy mounting on a mast. The holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with microwave unit into it. The holder allows precise adjustment in both directions. Ready for right and left side mounting. In the areas with the expected occurrence of the strong winds mounting on the mast with minimal ø 50 mm is recommended.

• Deep parabola for better parameters
• Easy to assembly: first the holder and then the antenna only by 2 screws
• Fine setting elevation (of gradient) and azimuth ± 20°
• Extreme wind stability

• Frequency range 10.0 – 12.0 GHz
• Gain – Low frequency 33.6 ± 1 dBi
• Gain – High frequency 35.5 ± 1 dBi
• Front to back ratio ≥ 55.5 dB
• Beamwidth-3 dB 3° ± 0.5°
• Return loss ≥ 18 dB/10.3 – 11.7 GHz
• Polarization Linear, vertical/horizontal
• Electrical Compliance
      US FCC Part 101A | 10.550 – 10.680 GHz
      US FCC Part 101B | 10.7 – 11.7 GHz
      Class 2 ETSI EN 302-217-4-2

Mechanical Parameters:

• Parabola ø 68 cm, Aluminum alloy
• Radome UV steady plastic ABS
• Input/output Circle waveguide Ø 19 mm
• Installation on mast ø 40 - 120 mm
• Operating wind load 180 km/h (112 mph)
• Survival wind load 240 km/h (149 mph)
• Weight of antenna of holder
      5.7kg (12.5)
      3.2 kg (7.0 lbs.)
• Shipping dimension
      Antenna 800 x 800 x 435 mm/ 9.4 kg (20.7 lbs.)
      Holder 180 x 170 x 165 mm/ 3.5 kg (7.7 lbs.)

Product Includes:

• (1) Jirous JRMC-680-10/11Ra NG
• (1) Radome
• (1) JDMW-900 AR Precision Mount
• (1) User Guide
