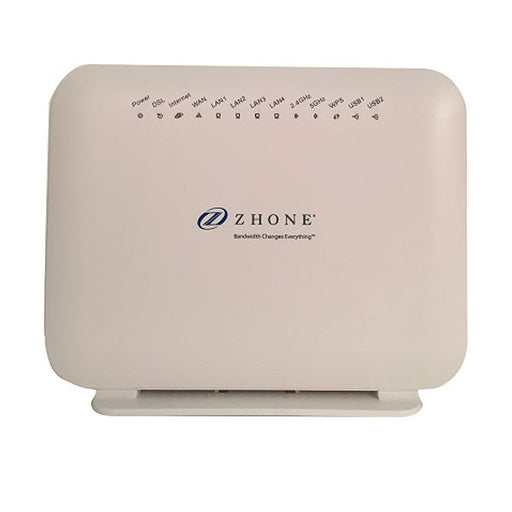

DZS VDSL2/ADSL2 4-Port 2.4GHz 2x2 MIMO WiFi 802.11 Wireless Gateway

6718-W1-NA by DZS
Sold out
Original price $295.00 - Original price $295.00
Original price
$295.00
$295.00 - $295.00
Current price $295.00

This product has a lead time of 4-7 business days.

DZS VDSL2/ADSL2 4-Port 2.4GHz 2x2 MIMO WiFi 802.11 wireless gateway is a versatile Broadband gateway for service provider that are seeking a single hardware that can support ultra-high bandwidth application. VDSL2 technology providing up to 100Mbps downstream and 50Mbps upstream (profile 17a) can be used to provide video/data services or triple-play services. ISP can use the same gateway for FTTx deployment by using the Gigabit Ethernet WAN to a GPON device.

Product Features:

  • VDSL2 with Profiles 8a/b/c/d, 12a/b, 17a or ADSL2+
  • Supports falls back to ADSL2+ if VDSL2 training fails
  • G.INP and G.Vector
  • Integrated Gig-E Ethernet port for WAN uplink for GPON development
  • Supports IEEE 802.11b/g/n WiFi with 2 transmitter and receiver antenna
  • USB 2.0 Host For DLNA (File and Printer Sharing)
  • TR-069 and TR-104
Product Specifications:
  • Dimensions: 6.75" (H) x 8.5" (W) x 2.75" (D), 17.15 cm (H) x 21.59 cm (W) x 6.03cm (D)
  • Weight: 0.75lbs, 440 grams
  • Power: Input: 120- 240 VAC 50/60 Hz, Output: 12VDC 1.5A
  • Interface: RJ11 VDSL2/ADSL2+, RJ45 Gigabit Ethernet WANn 4 x RJ45 10/100-Base-TX Ethernet LAN, USB Host 2.0, Reset Button, 802.11b/g/n built-in antenna, ON/OFF Power Button, WiFi On/Off Button, WPS Button
  • Wireless Support:  IEEE 802.11b/g/n, Frequency: 2.4GHz, Antenna configuration: 2x2 (Built-in), 4 SSIDs, 128 Clients, External On/Off Button, WPS (Wireless Protected Setup) with button, Supports 802.1x, WEP, WEP2, WPA; WPA2;, TKIP; AES; 802.11i, Hidden SSID, WDS Bridge, WMM for advance Quality of Service
  • Management: Local Management via Web/HTTP, TR-069, TR-098 Remote Management, SNMP GETs, SETs and TRAPs for four groups in MIB-II, Embedded Syslog, Firmware upgrade using HTTP, FTP, TFTP, TR-069, Command line Interpreter (CLI), Multiple admin/user access
  • Operating Temperature: 0º C - 40º C
  • Operating Humidity: 5% - 95% (non-condensing)
  • Storage Temperature: -20º C - 70º C
  • Storage Humidity: 5% - 95% (non-condensing)

Product Includes:
(1) DZS 6718-W1 Wireless Gateway
(1) User Manual
