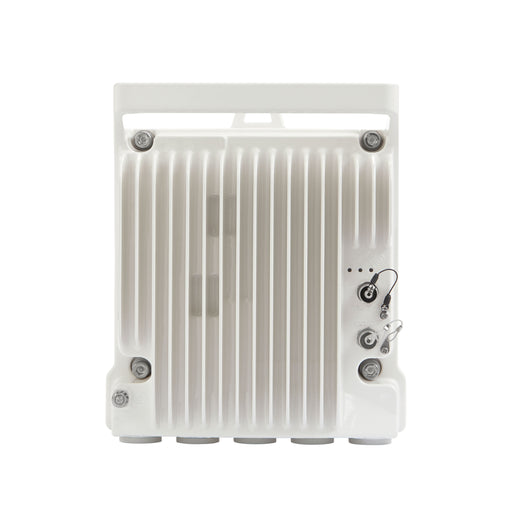

Cambium PTP 820C Radio 6LGHz TR252A Ch3W6 Hi 6238.715 - 6363.315MHz

This product has been discontinued by Cambium.

Cambium PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.

Product Features:

• Multi-gigabits radio capacity with high spectral efficiency
• TDM and/or packet supporting legacy services and evolution to all-packet
• Integrated Ethernet Switch, MEF Carrier Ethernet 2.0 compliant, MPLS-TP-ready
• Intelligent service-centric management utilizing Hierarchical
• Lowest power consumption with adaptive green mode
• Industry leading system Gain

• Supported Frequency: 6 GHz
• Role in the Network: Compact all outdoor w/multi-core
• Transport Technology: All packet
• TDM Interface: None
• Modulation: QPSK to 2048 QAM w/ACM
• Channel Size: 28,56,30,40,50,60,80 MHz
• Capacity (Layer 2): 1.21 Gbps
• Capacity with Multi-Layer Compression: 1.66 Gbps
• Configuration: 1+0 to 4+0, 1+1/2+2 HSB, 1+0 E/W
• LOS MIMO: Yes, 4x4 or 2x2
• XPIC: Yes
• Ethernet Interface: 1x10/100/1000Base-T and 1x1000base-X or 10/100/1000Base-T
• Management Interface: 1 x 10/100 Base-T
• External Alarm: None
• Dimensions: 230 x 233 x 98
• Environmental: -33C to +55C (-45C to +60C extended)
• Power Input: -48VDC
• PoE Injector Power Input: -48VDC or +24VDC
• Maximum Power Consumption: Mutli-Core Operating: 6 GHz: 70W, 7-11GHz: 65W, 13-42 GHz:55W

(1) PTP 820C Radio

(1) User Manual
