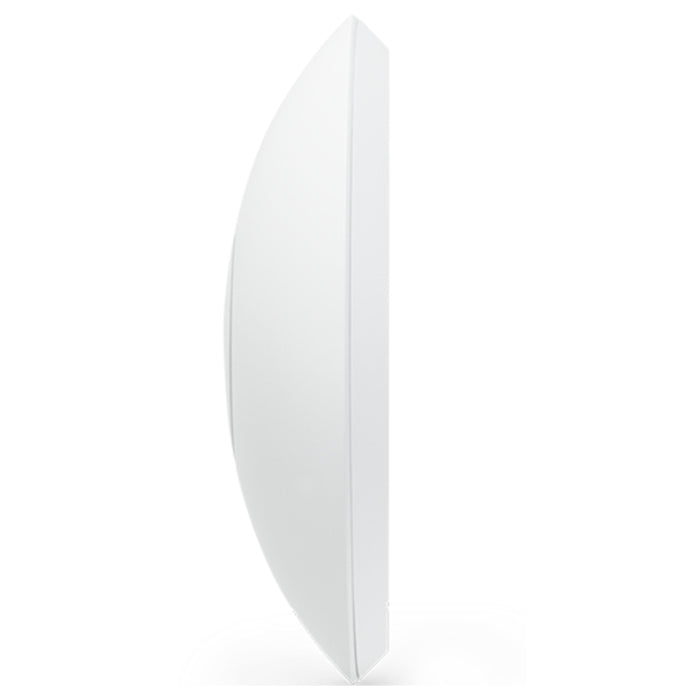

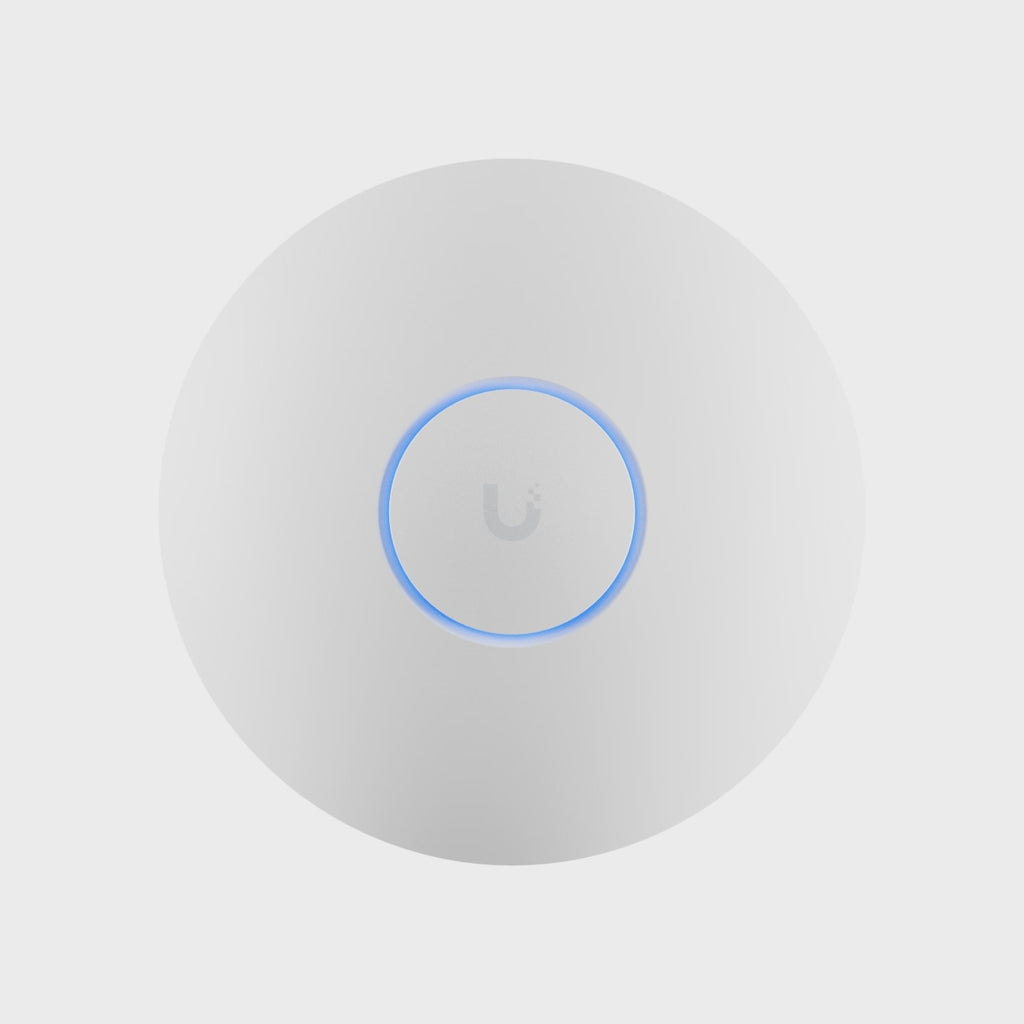

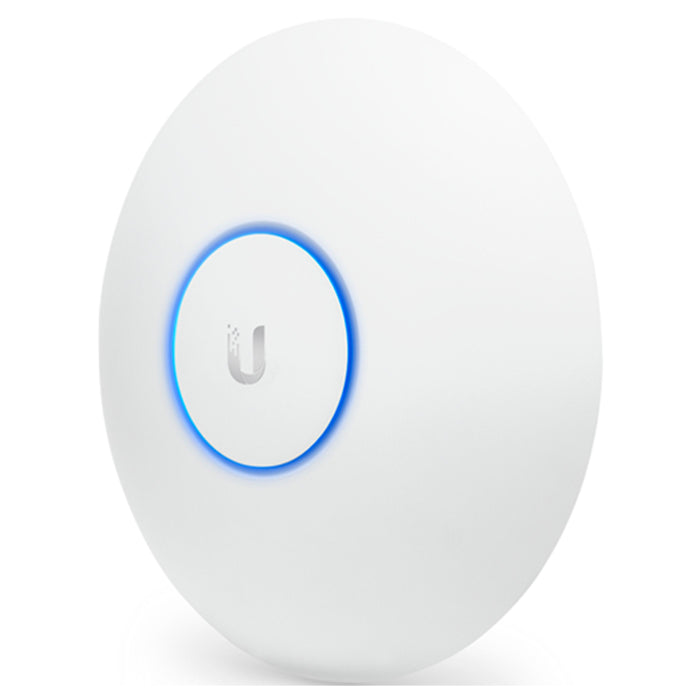

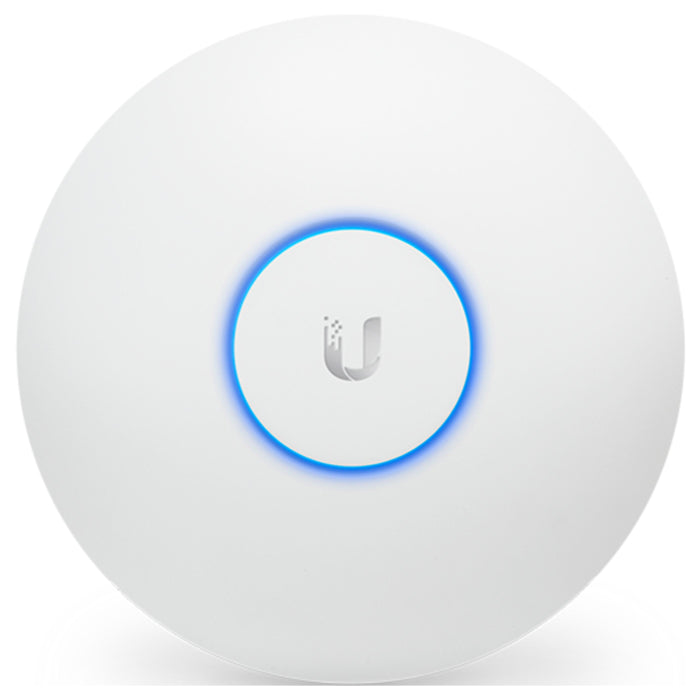

Ubiquiti UniFi 802.11ac Long Range Indoor Access Point 2.4GHz / 5GHz US

UAP-AC-LR-US by Ubiquiti Networks
Sold out
Original price $152.00 - Original price $152.00
Original price
$152.00 - $152.00
Current price $152.00
Innovative Antenna Design

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Scalable Enterprise Wi-Fi Management

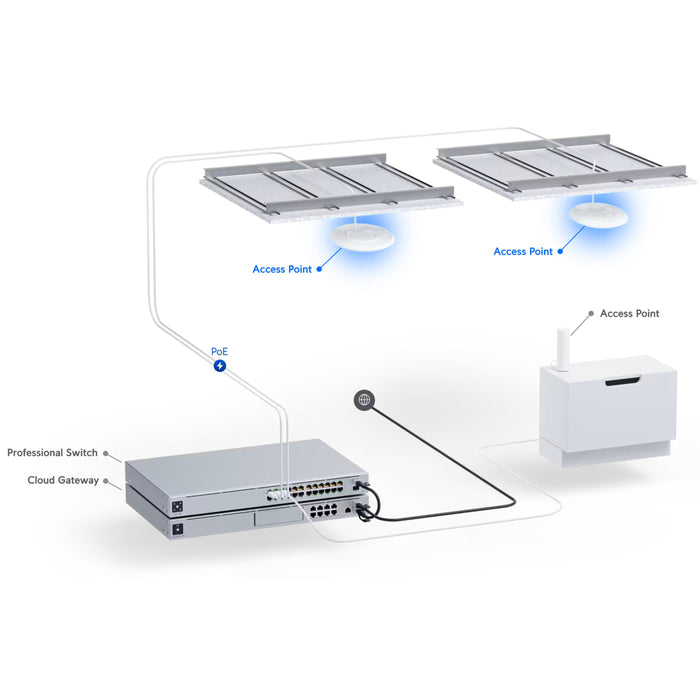

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Technical Specifications:

  • Networking Interface: (1) 10/100/1000 Ethernet Ports
  • Antennas: (1) Dual-Band Antenna, Tri-Polarity, 3dBi
  • Max TX Power: 2.4GHz: 24dBm - 5GHz: 22dBm
  • Buttons: Reset
  • WiFi Standards: 802.11 a/b/g/n/ac
  • Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter
  • Maximum Power Consumption: 6.5W
  • BSSID: Up to Four Per Radio
  • Power Save: Supported
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • Certifications: CE, FCC, IC

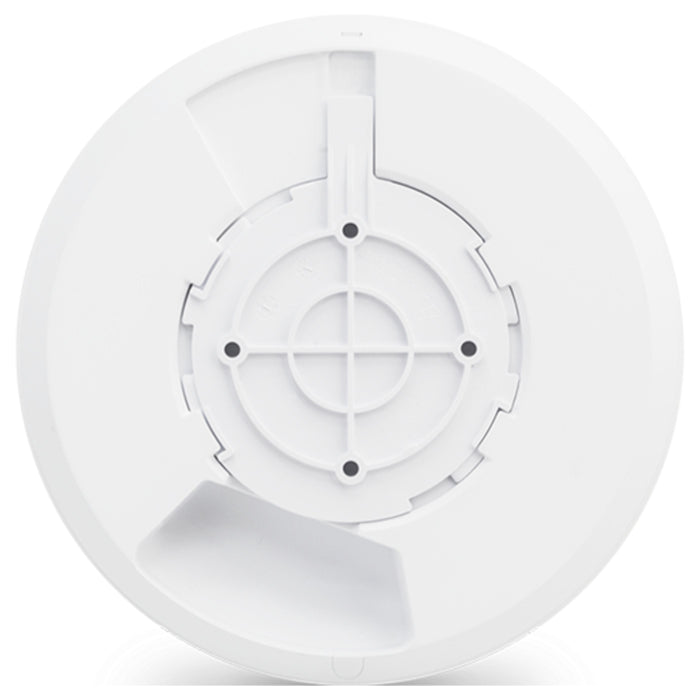

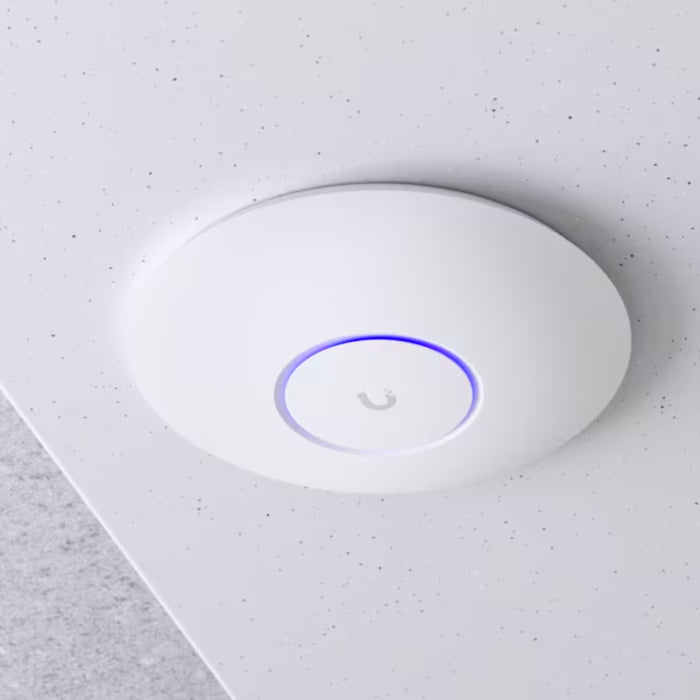

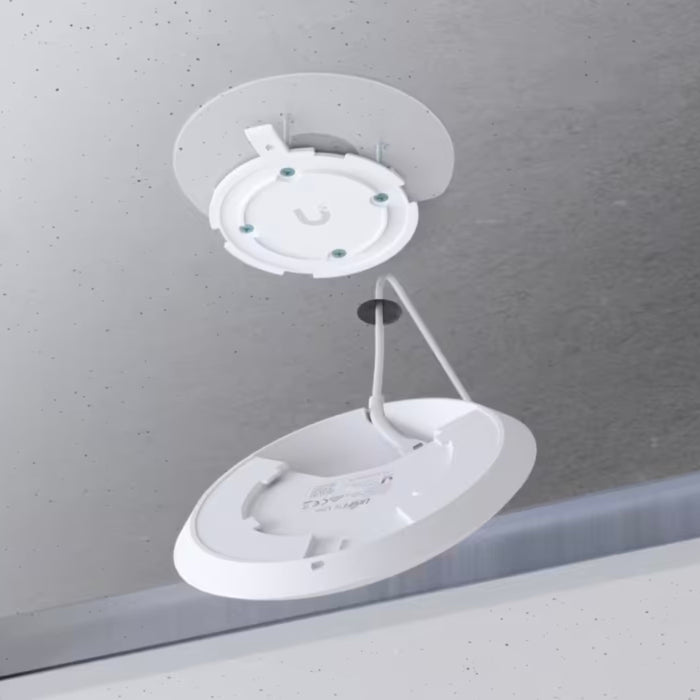

  • Mounting: Wall and Ceiling
  • Operating Temperature: -10 to 70°C (14 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
Advanced Traffic Management
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort and Background
  • Concurrent Clients: 200
Product Includes:
(1) UniFi AP AC LR
(1) Mounting Bracket
(1) Ceiling Backing Plate
(4) Flat Head Screws (M3x50)
(4) Nuts (M3)
(4) Screws (M2.9x20)
(4) Screw Anchors (M3x20)
(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
(1) Power Cord
(1) Quick Start Guide
