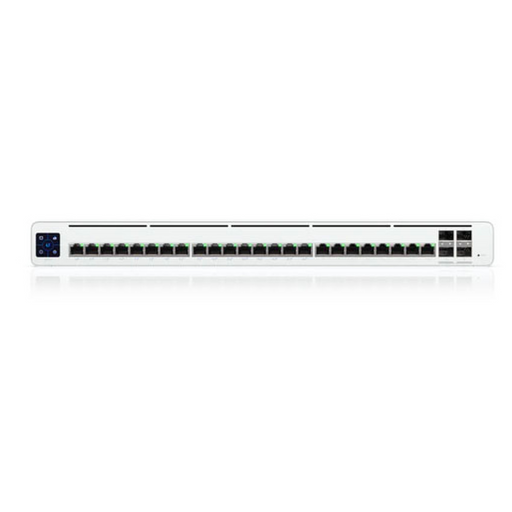

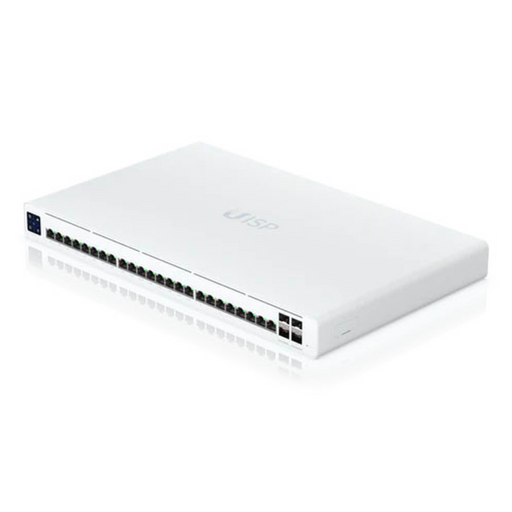

Ubiquiti UISP Switch Pro [UISP-S-Pro]

UISP-S-Pro by Ubiquiti Networks
Save 7% Save 7%
Original price $667.00
Original price $667.00 - Original price $667.00
Original price $667.00
Current price $620.00
$620.00 - $620.00
Current price $620.00
The Ubiquiti UISP Switch Pro [UISP-S-Pro] is a 24-port, Layer 2 PoE switch designed for ISP networks.

Product Features:
  • (24) GbE RJ45 ports, including (16) with 27V passive PoE output
  • (4) SFP+ ports
  • 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
  • Port isolation, speed limiting, and DHCP snooping functionality
  • 1.3" LCM color touchscreen
  • Additional Power TransPort input for DC redundancy
  • Easy Bluetooth setup with the UISP Mobile app


Technical Specifications

Mechanical

  • Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
  • Weight: 4 kg (8.8 lb)
  • Enclosure materials: SGCC steel, polycarbonate/acrylonitrile butadiene styrene

Hardware

  • Total non-blocking throughput: 64 Gbps
  • Switching capacity: 128 Gbps
  • Forwarding rate: 95.23 Mpps
  • Networking interface:
    • (24) GbE RJ45 LAN ports
    • (4) 1/10G SFP+ ports
  • Management interface:
    • Ethernet In-band
    • Bluetooth
  • Power method:
    • (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
    • (1) Power TransPort DC input 27V DC, 9.3A
  • Power supply: AC/DC, Internal, 250W
  • Supported voltage range: 100—240V AC
  • Max. power consumption:: 30W (Excluding PoE output)
  • ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
  • LCM display: (1) 1.3" touchscreen
  • Operating temperature: -10 to 50° C (14 to 122° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

PoE

  • PoE interface: (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
  • Total available PoE: 220W
  • Max. passive PoE wattage per port: 30W/27V DC
  • Passive PoE voltage range: 27V DC

LEDs

  • RJ45 data ports:
    • PoE
    • Speed/link/activity
  • SFP+ data ports: Speed/link/activity

Software

  • Management application: UISP: Version 1.5.7 and later
