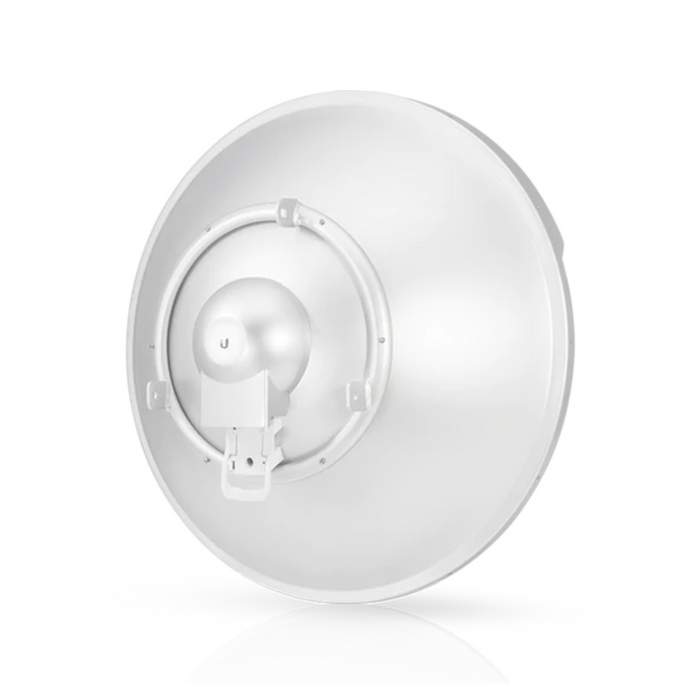

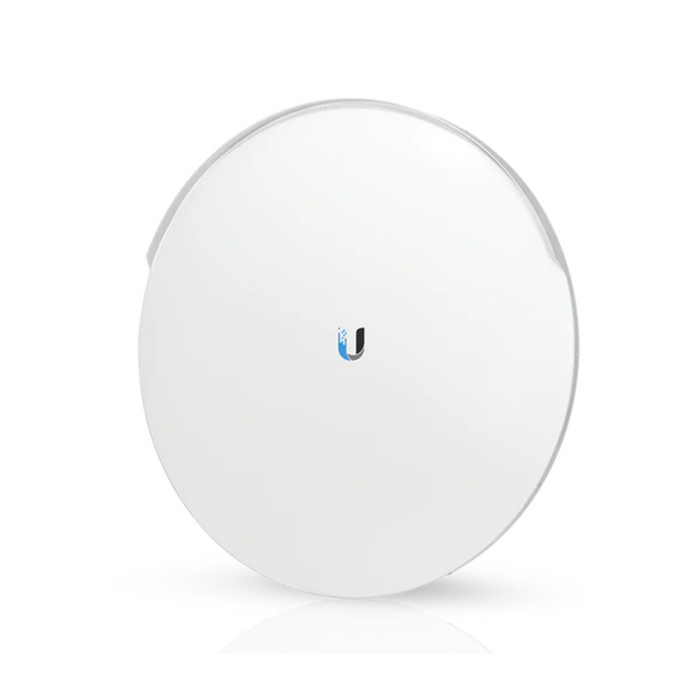

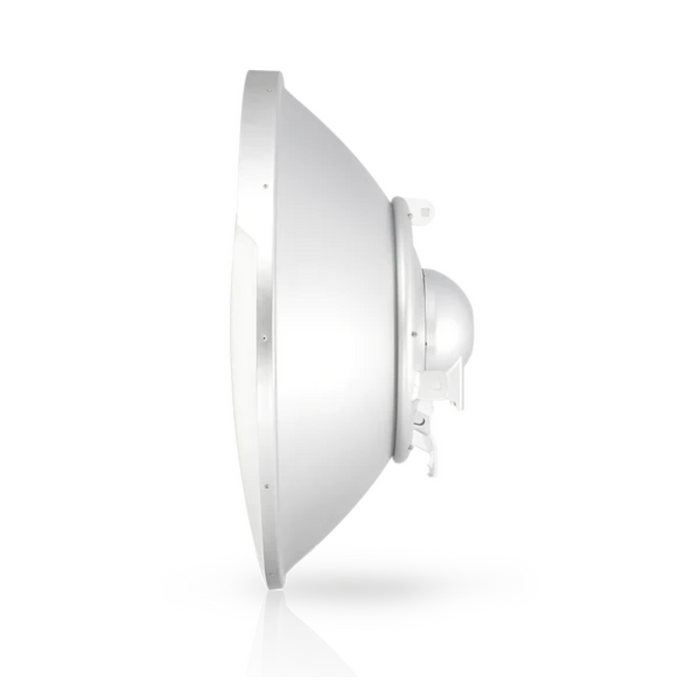

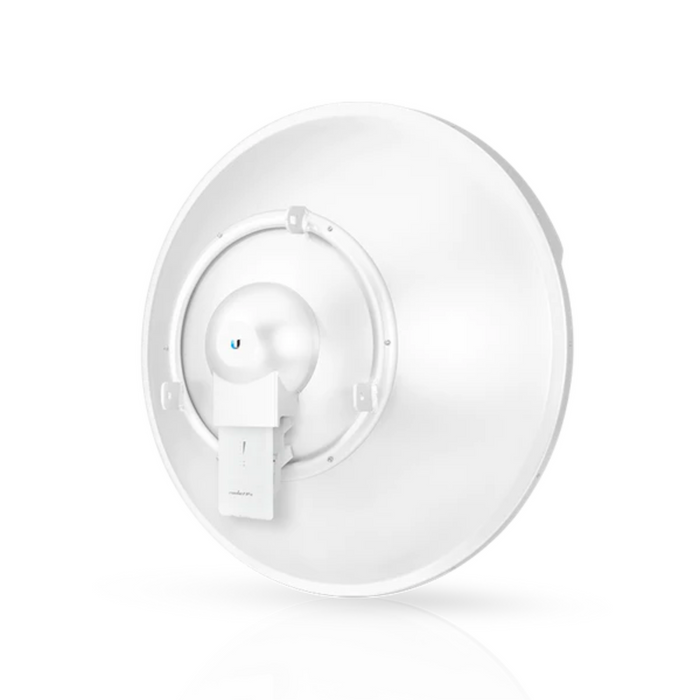

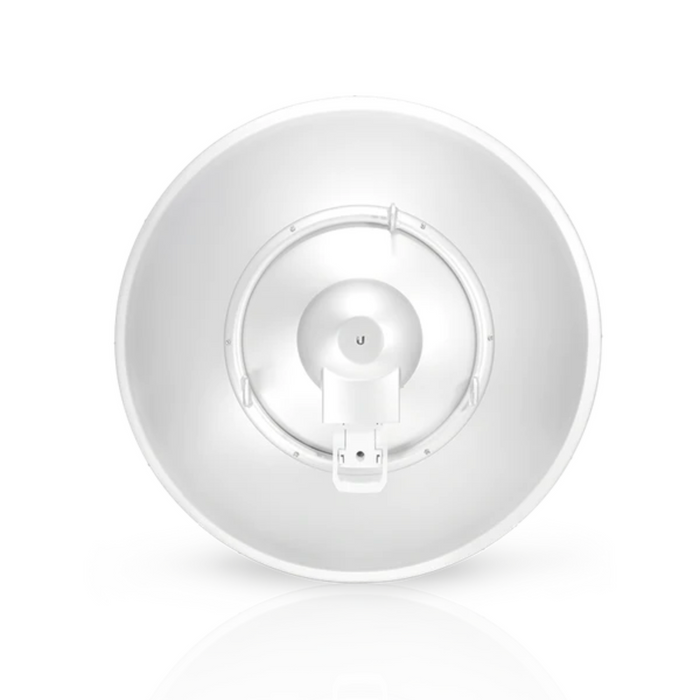

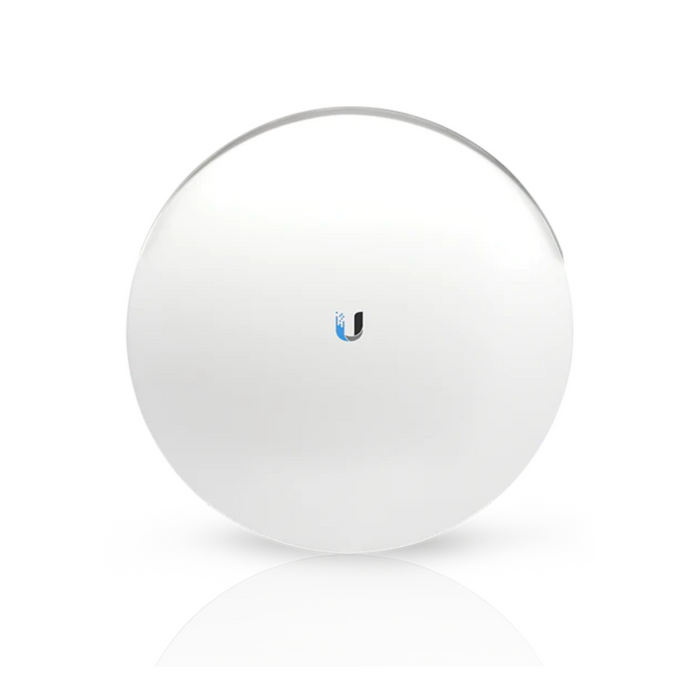

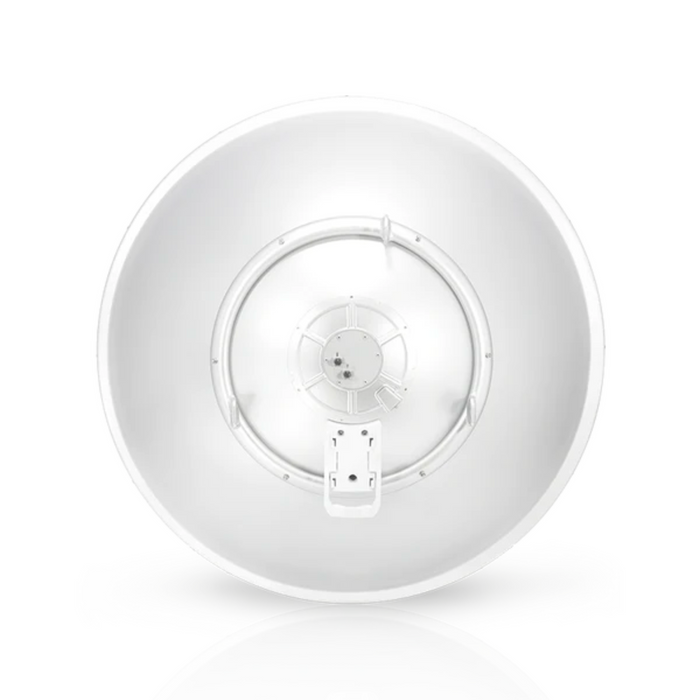

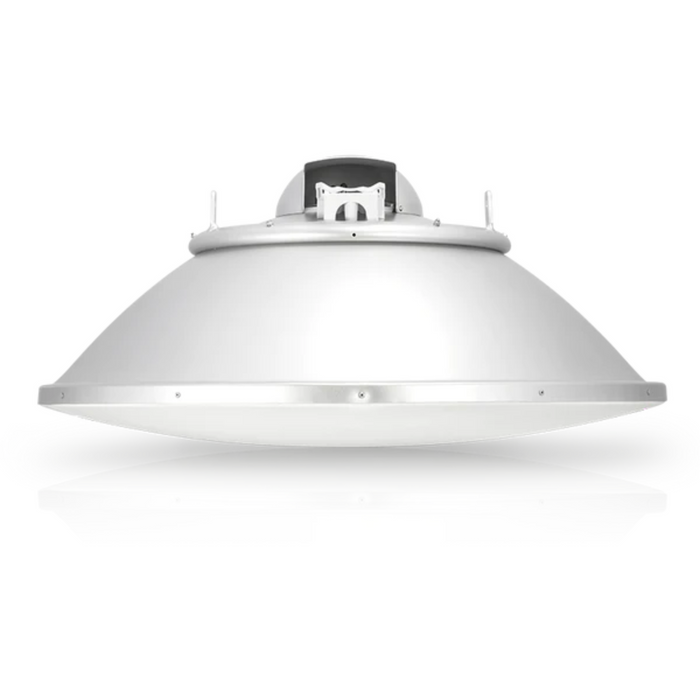

Ubiquiti airMAX AC 5 GHz, 31 dBi RocketDish Antenna [RD-5G31-AC]

RD-5G31-AC by Ubiquiti Networks
Sold out
Original price $465.00
Original price $465.00 - Original price $465.00
Original price $465.00
Current price $456.00
$456.00 - $456.00
Current price $456.00
Ubiquiti Networks RD5G-31-AC
airMAX® ac 2x2 PtP Bridge Dish Antenna The RocketDish™ AC Antennas feature significant advances in scalability, noise isolation, and beam performance. Complement the Rocket™ 5AC radios for Point‑to‑Point (PtP) bridging and backhauls. They are compatible with the RocketM5; however, optimal performance requires the Rocket5AC.

Product Specifications:
  • Frequency Range: 5.1-5.8 GHz
  • Gain: 31dBi
  • Polarization: Dual Linear
  • Cross-pol Isolation: 35dB min
  • Max VSWR: 1.4:1
  • ETSI Specification: EN 302 326 DN2
  • Dimensions: 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)
  • Weight: 7.6 kg (16.76 lb) (Mount Included)
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 1,028 N @ 200 km/h (231 lbf @ 125 mph)
  • Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Include
Product Includes:
  • (1) Dish Antenna with Radome
  • (1) Mounting Bracket
  • (1) Protective Shroud
  • (2) Pole Clamps
  • (2) Stabilizer Brackets
  • (2) RF Cables
  • (1) Elevation Rod
  • (4) M10x170 Carriage Bolts
  • (2) M10x100 Bolts
  • (3) M10x25 Carriage Bolts
  • RD-5G31-AC Quick Start Guide
