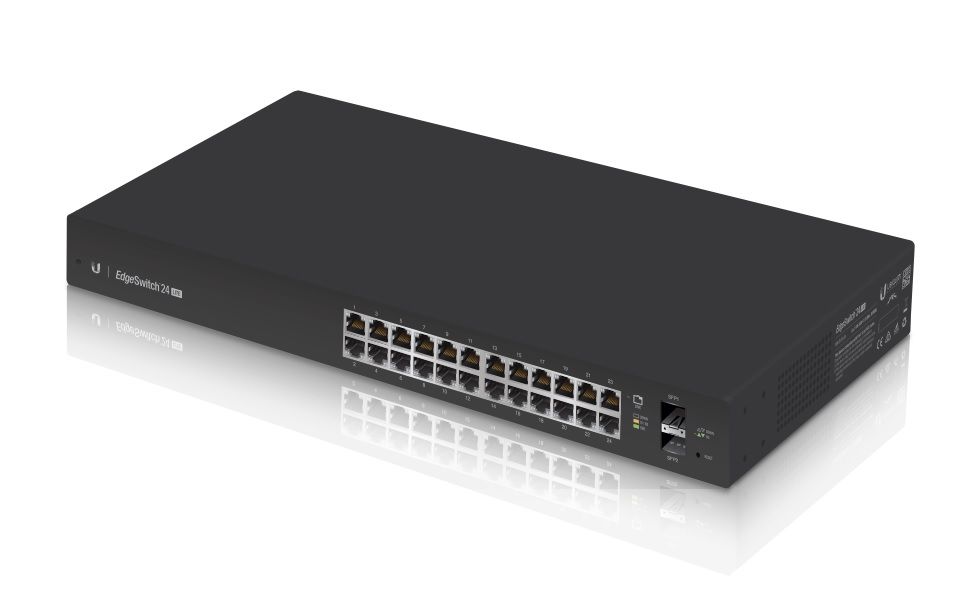

Ubiquiti EdgeSwitch 24-Port Lite Gigabit Switch 25W

ES-24-LITE by Ubiquiti Networks
Sold out
Original price $330.00 - Original price $330.00
Original price
$330.00 - $330.00
Current price $330.00

The Ubiquiti Networks ES-24-LITE is part of the EdgeSwitch family of products. It's a dully managed Gigabit switch designed to deliver robust performance and intelligent switching for growing networks. It offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. It's total non-blocking throughput is 26Gbps, wit 24 Gigabit RJ45 ports, and 2 Gigabit SFP ports.

Product Features:

  • (24) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Maximum Power Consumption: 25W
  • Rack- or Wall-Mountable
  • Quiet, Fanless Operation
  • Option: Redundant Power Supply Unit (PSU), Used as a Hot Spare
  • Ubiquiti Networks EdgeSwitch PSU, 56W
  • External PSU (Minimum Power: 25W, 25 to 16V) with 2.5 mm DC Power Inline Connector

Product Specifications
  • Dimensions: 443 x 43 x 221mm (17.44 x 1.69 x 8.70")
  • Weight: Rack-Mount Brackets Included: 2.7kg (5.7lbs), Rack-Mount Brackets Excluded: 2.51kg (5.54lbs)
  • Total Non-Blocking Throughput: 26Gbps
  • Switching Capacity: 53Gbps
  • Forwarding Rate: 38.69Mpps
  • Max. AC Power Consumption: 25W
  • Power Method: 100-240VAC/50-60Hz, Universal Input. DC 25V/25W Min.
  • Power Supply: AC/DC, Internal, 25W FC
  • LEDs per Port: Serial Console Port: N/A, RJ45 Data Ports: Speed/Link/Activity, SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces: (24) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications: CE, FCC, IC
  • Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air:±24kV, Contact: ±24kV
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4 Standard

Product Includes:

(1) EdgeSwitch 24-Port Lite Gigabit Switch 25W

(1) Power Cord

(2) Rack-Mount Brackets

(8) M4 Bracket Screws

(4) #10-32 x 5/8" Mounting Screws

(4) #10-32 x 5/8" Cage Nuts

(1) Quick Start Guide
