Ubiquiti 48V DC 0.5A 24W Replacement PoE Adapter [POE-48-24W]

Ubiquiti 48V DC 0.5A 24W Replacement PoE Adapter [POE-48-24W]

POE-48-24W by Ubiquiti Networks
Ubiquiti Networks POE-48-24W Datasheet Ubiquiti Networks POE-48-24W Datasheet
$21.00 - $21.00
$21.00
$21.00 - $21.00
$21.00

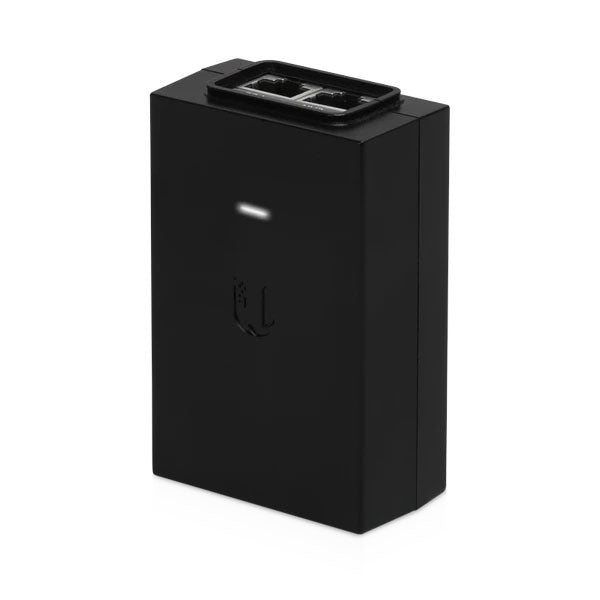

This Ubiquiti Networks PoE adapter, POE-48-24W, is a 48VDC 0.5A injector for use with various airMAX and UniFi products. It features grounding and ESD protection.


Product Specifications:
  • Dimensions: 88 x 57 x 33mm (3.47 x 2.24 x 1.30")
  • Weight: 135.5g (4.78oz)
  • Output Voltage: 48VDC @ 0.5A
  • Input Voltage: 90-260VAC @ 47-63Hz
  • Input Current:0.6A @ 120VAC, 0.4A @ 240VAC
  • Inrush Current: < 65A Peak @ 120VAC, < 130A Peak @ 230VAC
  • Efficiency: 80+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 65kHz
  • Line Regulation: ±1%
  • Load Regulation: ±3%
  • 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 35 to 95% non-condensing
  • AC Connector: IEC-320 C6
  • Data IN/PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20us) Power
  • Peak Pulse Current: 36A (10/1000us) Data
  • Shunt Capacitance: <5pF Data
  • Response Time: <1ns
