Tycon Wireless Kit EZ-Bridge-Ultra2-LR 100Mbps Long Range Point to Point Bridge System - Plug and Play 2.4GHz

EZBR-Ultra2-LR by TYCON Systems
Original price $766.00 - Original price $766.00
Original price
$766.00
$766.00 - $766.00
Current price $766.00

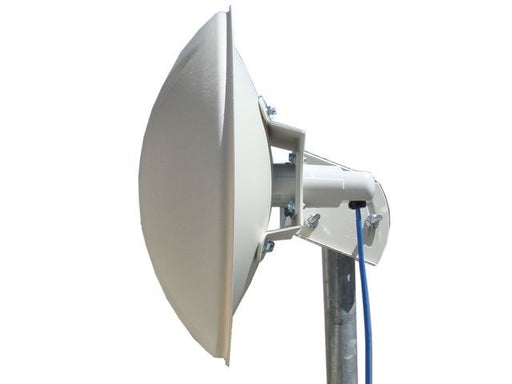

The EZ-Bridge-Ultra2-LR is a long range high capacity 100Mbps+ and high power 250mW outdoor wireless bridge system operating in the 2.4GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between two buildings up to 8 miles or more apart with good line of sight. It creates a transparent bridge between two sides and passes all network traffic including VPN and DHCP.


Product Features

  • High Power Electronics and Powerful Advanced MiMO Antenna
  • True Plug and Play
  • 64 and 128bit WEP, WPA and WPA2 Encryption
  • Web-Based Configuration
  • PoE (Power over Ethernet)
  • Transparent Bridge


Product Specifications

  • Data Rates: 6 to 150 Mbps
  • Operating Distance: Up to 15 miles line of sight
  • Standards: IEEE802.11n, 802.11g, 802.3, 802.3u
  • Power Requirements:    -Power Supply: 100-240VAC 50/60Hz    -EZ-Bridge Ultra2-LR: 12VDC to 24VDC    -Av. Power Consumption: 5.5W
  • Regulation Certifications: FCC Part 15 / UL
  • RF Frequency Band: 2412 - 2462 MHz
  • Available Transmit Power: 802.11g/n: 4 to 23dBm
  • Modulation Technology:  -802.11g: OFDM, -802.11n: TDMA
  • Operating Channels: 2.4GHz 12 channels supports at 40MHz width
  • Receive Sensitivity (Typical): -802.11g/n: -94 ± 2dB @ 14Mbps, -802.11n: -75 ± 2dB @ 300 Mbps
  • Antenna: 2.4GHz 18dBi Dish Antenna, 8° AZ and 8° EL Beamwidth, >23dB front to back
  • Network Topology: Ad-Hoc, Infrastructure
  • Operation Modes: Point to Point Bridge, Access Point, Client Bridge or Router
  • Processor: Atheros MIPS 24KC 400MHz
  • Interface: 10/100Mbps RJ45 LAN Port
  • Memory: 32MB SDRAM, 8MB Flash
  • IP Auto Configuration: DHCP Client
  • Security: MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation
  • Management Configuration: Web-based Configuration (HTTP), Console Configuration, SNMP Protocol
  • Firmware Upgrade: Upgrade firmware via web browser
  • Antenna Physical Dimensions (diameter x depth): 400 x 254mm (15.7 x 10")
  • Complete System Weight: 9.07kg (20lbs)
  • Temperature Range: Operating: -30 to 75°C (-22 to 167°F),  Storage: -40 to 80°C (-40 to 176°F)
