Tycon Solar POE/Solar Dual Input 12V Battery Charge Control

TP-SCPOE-1248 by TYCON Systems
Sold out
Original price $139.00 - Original price $139.00
Original price $139.00
$139.00 - $139.00
Current price $139.00

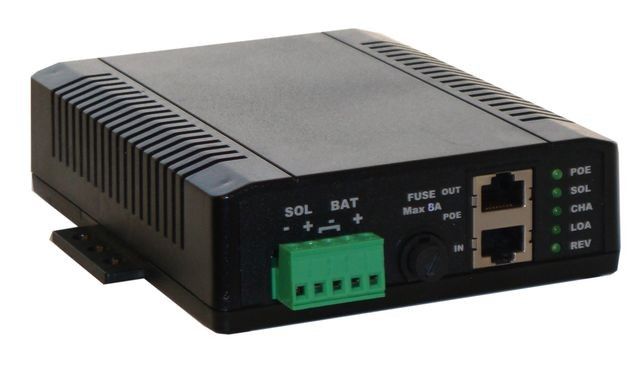

Tycon Solar TP-SCPOE-1248 controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.5A. They have a built in POE inserter that delivers 48V 0.375A at the POE out port. They also have a secondary wire terminal 12V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.

The built-in over discharge protection and low self consumption ensures the battery is not over discharged, which greatly increases the life of the batteries.

They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.

Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.

The controllers are externally fused with a standard replaceable fuse.

Product Features
  • Dual input: Charges 24V batteries from solar panel and/or passive PoE
  • Built in DC to DC converter
  • Compact and high temperature operation
  • Low self consumption: < 0.5W
Product Applications
  • Remote power systems; surveillance, sensors
  • Wireless stations; AP / client / repeaters
  • UPS systems; lighting, fences, gates
Product Specifications
  • Solar input voltage: 15V - 36V @ 8A max
  • PoE input voltage: 18V - 57V @ 2.6A
  • Battery voltage: 12V
  • PoE output: 48V @ .625A
  • Secondary output: 11V to 15V @ 1.5A max
  • Charge voltage: 14.6 ±0.3V
  • Maintenance voltage: 13.5 ±0.3V
  • Over discharge voltage: 11.0 ±0.3V ; 12.0 ±0.3V
  • Load-on consumption: <0.5W
  • Load-off consumption: 1.7mA Type 0.02W
  • Max wire size: 12 AWG
  • Operating temperature: -30°C to 60°C (-22°F to 140°F)
  • Dimensions: 159 x 118 x 40mm (6.3 x 4.6 x 1.6")
  • Weight: 312 g (11 oz)
