Tycon Systems PoE Injector with Power and Current Indicator LED [POE-INJ-LED-S]

SKU POE-INJ-LED-S
Original price $12.00
Original price $12.00 - Original price $12.00
Original price $12.00
Current price $12.00
$12.00 - $12.00
Current price $12.00

More payment options

The unique POE-INJ-LED-S has power on and current indicator LED's. The Power LED shows that DC power (12V to 24V) is being supplied to the inserter through the DC jack. The current LED shows that a POE device is plugged in at the end of the CAT5 Ethernet cable up to 100m (330ft) away from the inserter.


Product Features
  • Shielded CAT5e cable and connectors for added protection against surges and interference
  • CAT5 rated RJ45 for reliable high speed data connections (10/100MB)
  • Shrouded DC jack for improved safety
  • Power and Current LED indicators
Product Specifications
  • Materials: UL rated materials, meets RoHS requirements
  • Voltage rating: 60VDC maximum
  • RJ45 jack: Shielded CAT5 rated, gold plated contacts
  • RJ45 power pins: 4,5 (+) 7,8 (-)
  • DC jack or plug: 5.5 x 2.1 mm, shrouded
  • DC wire size: 28AWG x 4
  • Cable length: 165 mm (6.5")
  • Total length: 254 mm (10")
  • Weight: 31 g (1.1 oz)
  • Operating temperature: -40°C to 80°C (-40°F to 176°F)

You may also like

Original price $8.00 - Original price $8.00
Original price $8.00
$8.00
$8.00 - $8.00
Current price $8.00

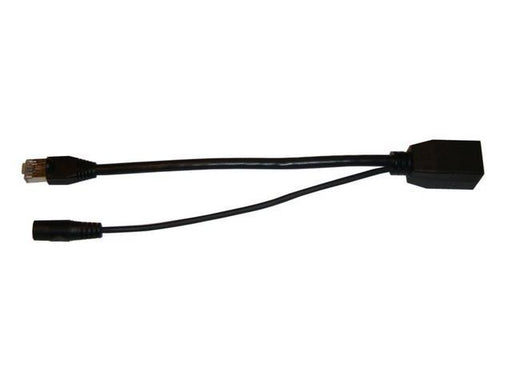

Tycon Systems 10/100MB Passive Y PoE Injector [POE-YINJ-S]

TYCON Systems

The POE-YINJ-S is a low cost Tycon PoE inserter for inserting PoE power to CAT5 Ethernet data cables. Product Features• Shielded CAT5e cable and ...

View full details
Original price $8.00 - Original price $8.00
Original price $8.00
$8.00
$8.00 - $8.00
Current price $8.00
Original price $15.00 - Original price $15.00
Original price $15.00
$15.00
$15.00 - $15.00
Current price $15.00

Tycon Systems Shielded Gigabit PoE Injector with LED for Power [POE-INJ-1000-S]

TYCON Systems

The Tycon Power POE-INJ-1000-S is a shielded passive power over Ethernet inserter that is compatible with data speeds up to 1 gigabit. The DC conne...

View full details
Original price $15.00 - Original price $15.00
Original price $15.00
$15.00
$15.00 - $15.00
Current price $15.00
Original price $8.00 - Original price $8.00
Original price $8.00
$8.00
$8.00 - $8.00
Current price $8.00

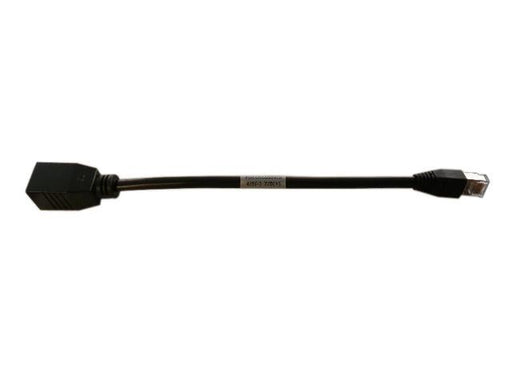

Tycon Systems Passive PoE XOVER Canopy & Eng Shielded [POE-XOVER-S]

TYCON Systems

Tycon Power Cross over Cable, POE-XOVER-S, converts the output from a standard polarity PoE source to a reverse voltage output. Pins 4,5(-) and 7,8...

View full details
Original price $8.00 - Original price $8.00
Original price $8.00
$8.00
$8.00 - $8.00
Current price $8.00
Original price $12.00 - Original price $12.00
Original price $12.00
$12.00
$12.00 - $12.00
Current price $12.00

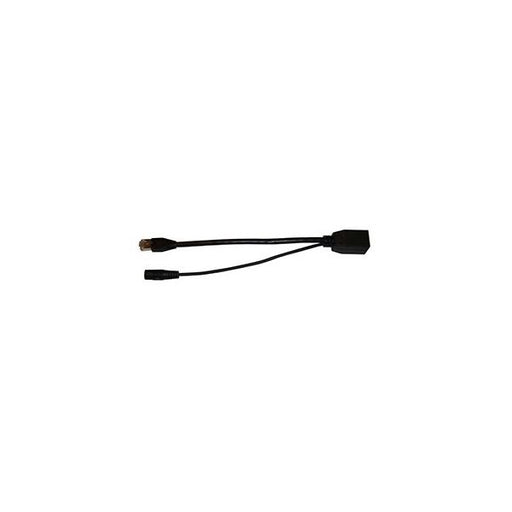

Tycon Systems Shielded Passive PoE DC Power to RJ45 Injector [POE-INJ-S]
