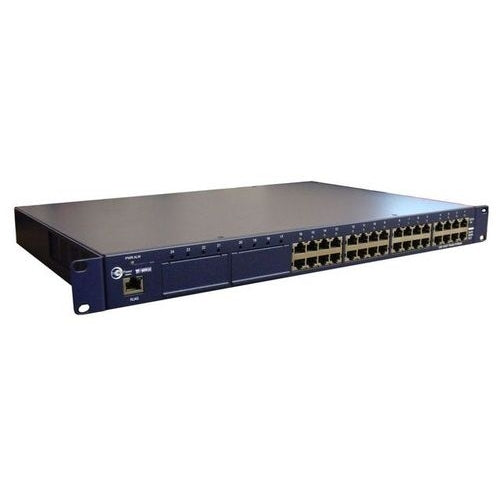

Tycon Power Mid Span Very High Power POE Injector - 16 Port @ 40W. 1U Rack Mount. IEEE802.3af/at 576W. AC

TP-MS616 by TYCON Systems
Sold out
Original price $1,318.00 - Original price $1,318.00
Original price $1,318.00
$1,318.00 - $1,318.00
Current price $1,318.00
The TP-MS616 rack mount 16 port mid span POE power sources are used for supplying POE and data to up to 16 devices multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet. The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced POE output (Passive POE) or IEE802.3at/af detection. POE DC Voltage (55V) is supplied on 4 pairs. Maximum power output per rack mount unit is 576W. The individual outputs are overload and short circuit protected. The 1U rack mounting accommodates 19" racks with included brackets. Product Features • IEEE 802.3af/at High Power Midspan POE Injectors • Up to 40W per Individual Port • 1U Standard Rack Mount (19”) • Configuration and status thru web interface • Supports non standard (Passive) devices • Accepts AC or DC input • Remotely Power Multiple Equipment thru CAT5 Cable up to 100m Product Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems • Power Network Devices from a Central Network Room Product Specifications • Ethernet Standard: IEEE802.3 / IEEE802.3u / IEEE802.3ab (10base-T / 100base-T / 1000base-T) • PoE Standard: IEEE802.3at/af or Passive PoE • Shielded RJ45 Ports: 16 data-in ; 16 data/PoE out • Console Port: RJ45 Management Port. Can also be managed via network • Max Device Distance: 100m (328ft) • Maximum PoE Power: 35W per port, 625mA @ 56V • PoE Protection: Over Temperature, Over Current, Over/Under Voltage • AC Power Input: 100~240VAC, 50/60Hz • DC Power Input: -47 to -57VDC • Max Power Output: 576W • Operating Temperature: -20 to 65°C (-4 to 149°F) • Operating Humidity: Up to 95% (non condensing) • Storage Temperature: -20 to 80°C (-4 to 176°F) • Dimensions: 230 x 290 x 44mm (16.9 x 11.4 x 1.7") 1U rack mount 19" • Weight: 4.9kg (10.8lbs) Product Data Sheet Tycon Power Learning Center Presentation
