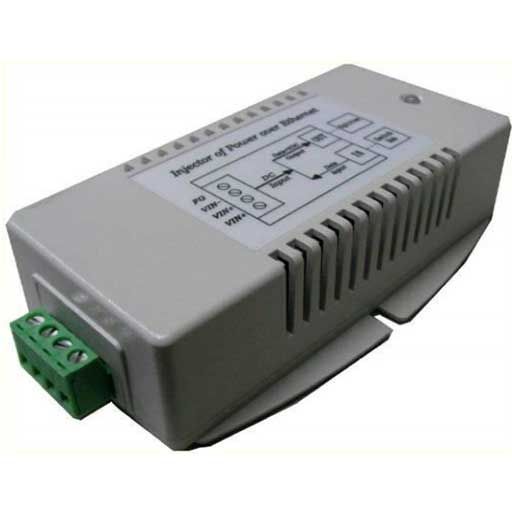

Tycon Power Gigabit PoE Injector / Splitter 5-58VDC 130W (pinout 1245+, 3678-)

POE-INJ-1000-WT by TYCON Systems
Sold out
Original price $15.00 - Original price $15.00
Original price $15.00
$15.00
$15.00 - $15.00
Current price $15.00
The POE-INJ-1000-WT is a shielded passive PoE inserter / splitter that are compatible with data speed up to 1 Gigabit. The DC connector is a removable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair), allowing for transport of up to 130W over a single CAT5/6 wire up to 100m. Product Features • High Power Shielded Design (uses all 4 pairs) • 10/100/1000Mbps Compatible • Removable Wire Terminal Connector • 5 to 58VDC Power Over Ethernet • Power On LED Indicator Product Applications • Wireless Equipment • Ubiquiti airFiber Antennas • Security Applications • HD PTZ Cameras Product Specifications • DC Input Voltage Range: 5 to 58VDC • Data Speeds 10/100/1000Mbps • Maximum PoE Current: 2.25A 130W Max • DC Connector: Remoevable Wire Terminal Connector - Maximum Wire Size 14AWG • RJ45 PoE Pinout: 1,2,4,5(V+) 3,6,7,8(V-) • Operating Temperature: -40°F to 185°F (-40 to 85°C) • Operating Humidity: 0 to 99% RH • Size: 2.8 x 2.1 x 0.95" (71 x 53 x 24mm) • Weight: 2.3oz (65g) • Warranty: 2 Years Product Documentation POE-INJ-1000-WT Datasheet
