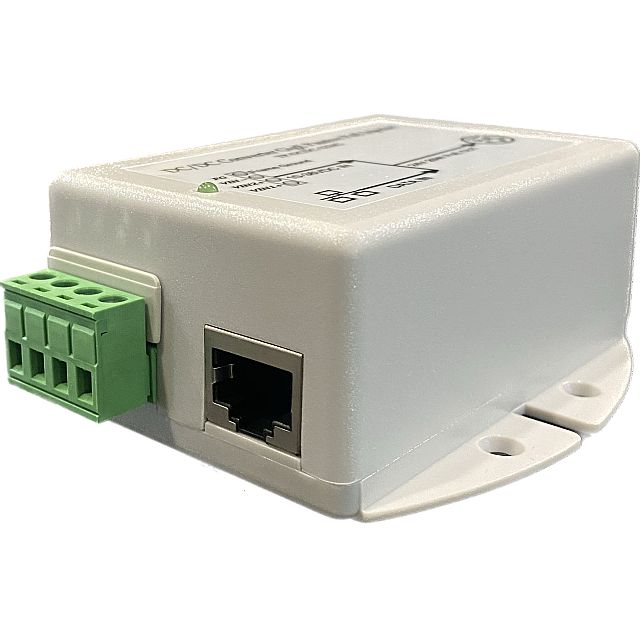

Tycon Power GIGABIT 9-36VDC In, 48VDC Out 24W DC to DC Converter and POE Inserter

TP-DCDC-1248G is a low cost and high efficiency solution for those requiring IEEE802.3af Power Over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.

The output voltage is regulated at 48VDC, and it has two isolated inputs for connecting 2 power sources (like a primary and backup power source).

• Input Voltage 9-36VDC; Output 48VDC
• Integrated Gigabit POE Inserter
• Output Power 24W
• Short Circuit, Over Current and Over Voltage Protection
• High Temperature Operation
• Removable Wire Terminal Input for up to 12AWG wires

• DC Output Voltage: 48V (Passive)
• Data in & Data/POE Output Connector: RJ45 (Shielded)
• Output Current (max): 0.4A
• Output Power (max) 19W
• Self Consumption Power: 1W
• Efficiency (min): 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• Operating Temps: -30 to +60deg C (-40 to +176deg F)
• Operating Humidity: 5% - 90%
• Dimensions: 85 x 76 x 36 mm (3.4 x 3 x 1.4 in)
• Weight 134g (4.7oz)
