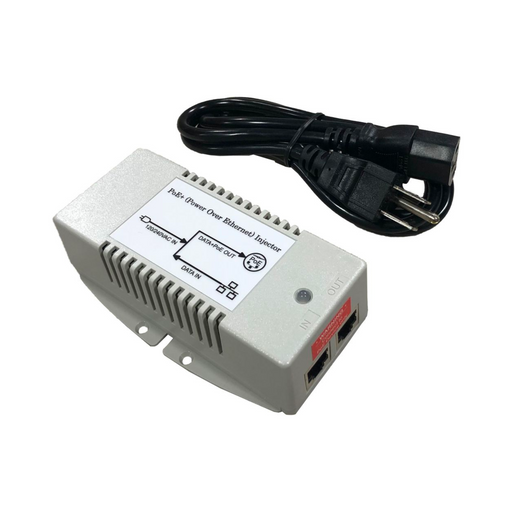

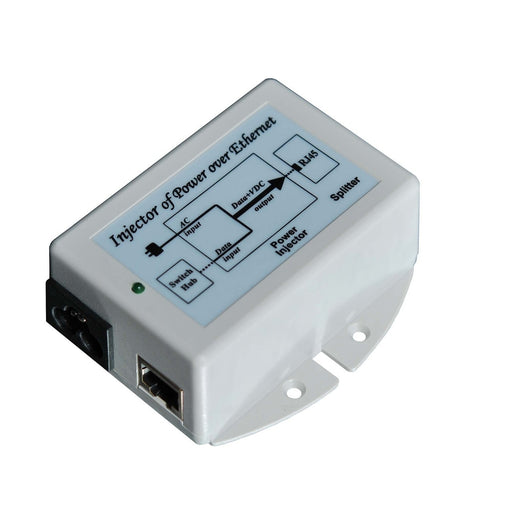

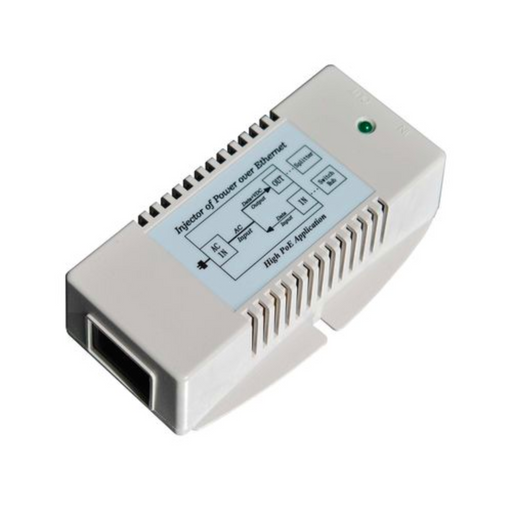

Tycon Power 48V 24W Gigabit POE Power Source/Inserter With Surge Protection

TP-POE-48G by TYCON Systems
Sold out
Original price $55.00 - Original price $55.00
Original price $55.00
$55.00
$55.00 - $55.00
Current price $55.00

The TP-POE-48G, PoE Power Source offered by Tycon Power is a quality midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the “R” model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).


The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. This medium power model has power outputs up to 24W. They have 48-56V DC Output with load regulation within 5%. The CI model has a special current sense LED which changes color when a PoE device is plugged onto the CAT5 cable.


If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.


Product Features:

  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Built in Ethernet and AC Surge Protection
  • Autoranging Switching Power Supply
  • Short Circuit, Over Current and Over Voltage Protection
  • Medium Power and High Power Models Available
  • 802.3af, 802.3at and Passive PoE Models Available
  • 10/100Mb and 10/100/1000Mb Models Available
  • High Temperature Industrial Operation
  • Compact size – Floor / Desktop / Wall Mount

Applications:

  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems

Product Specifications:

  • AC Input: 90-264VAC 47-63Hz
  • Max Inrush Current (120VAC): 30A
  • Efficiency (min): 85%
  • Line / Load Regulation: 1% / 5%
  • Ripple / Noise: 1% / 2%
  • Protections: Over-Voltage, Short Circuit, Over-Current
  • Surge Protection: Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us) Peak Pulse Current, <2pF Shunt Capacitance    AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us)
  • EMC Standards: FCC Class B EN55022 Class B
  • Safety Standards: UL1950, CSA 22.2 & TUV EN60950
  • Environmental Standards: RoHS
  • Operating Temperature: -30 to 60°C (-22 to 140°F)
  • Operating Humidity: 5% - 90%
  • Storage Temperature: -40 to 80°C (-40 to 176°F)
  • PoE Output Voltage: 56V
  • Output Current: 0.9A
  • Output Power 50W
  • PoE Type: Passive
  • Dimensions: 125 x 75 x 36mm (3.4 x 3 x 1.4")
  • Weight: 300g (10.6oz)
