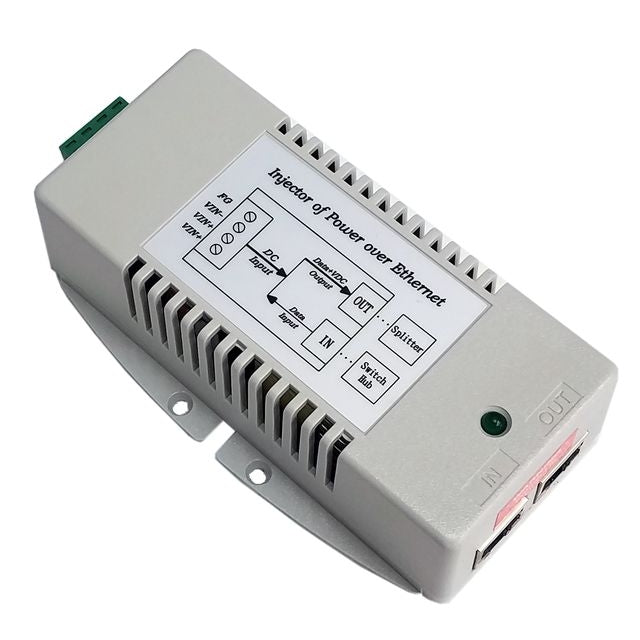

Tycon Systems 10-15VDC In 56V Out 35W Gigabit High Power DC to DC Converter and 802.3at PoE Inserter [TP-DCDC-1248GD-HP]
SKU TP-DCDC-1248GD-HP
Original price
$112.00
Original price
$112.00
-
Original price
$112.00
Original price
$112.00
Current price
$112.00
$112.00
-
$112.00
Current price
$112.00
The TP-DCDC-1248GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 10-15VDC battery system.
They have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 35W.
Product Features
- Input Voltage 12VDC (Range 10-15VDC)
- IEEE 802.3af/at Compliant Output 56VDC
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 35W
- Low Self Consumption Power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact Size – Maximize Available Space
- I.T.E. Power Supply, UL Listed
Applications
- 12V Battery Systems, Vehicle Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- PoE Lighting Applications
