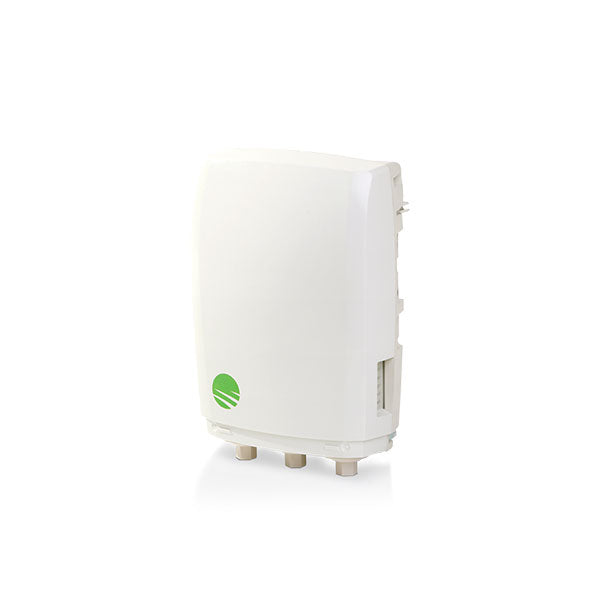

Siklu MultiHaul 60GHz 100Mbps to 1Gbps Terminal Unit (3-Port Model) (VEHP208)
This Terminal Unit, MH-T200-CCC-PoE-MWB, is part of the Siklu MultiHaul solution. Operating on millimeter wave spectrum (60GHz), with a 100Mbps throughput (upgradable to 1Gbps).
Siklu MultiHaul is a PTMP multi-gigabit radio operating over millimeter waves. It brings the advantages of mmW - multi-gigabit capacity, immunity to interference and always-on reliability - to a cost effective small form factor PTMP solution. MultiHaul is a plug and play system designed to easily scale, taking advantage of patent-pending scanning antennas that auto-align links, as well as robust planning and management tools. MultiHaul units operate over the millimeter wave spectrum using narrow beams. This confers several advantages including complete immunity to interference and network jamming, as well as high security. In contrast to wide-beam wireless systems that need to use multiple strategies to perform in dense areas, and are not successful 100% of the time, MultiHaul is inherently interference-free and secure under any circumstances because of its use of a unique combination of narrow beams and high frequencies.
Product Features:
- Security / Safe City Networks
- Gigabit to the Home
- Smart City
- Business Services
- Wi-Fi Backhaul
- Topologies: Point to Multi-Point / Point to Point
- Built-In Antenna: Horizontal Scanning: 90° / Vertical Beamwidth: 20°
- Frequency and Duplexing: 57-64GHz
- Channels and Width: 2 non-overlapping channels, 2160MHz wide
- Modulation and Coding: 9 levels of adaptive coding and modulation
- Line Rate (PHY) Line rate up to 2300Mbps
- Aggregate Throughput: Max capacity 1000Mbps, license dependent
- System Gain (Link Budget): 125dB (including antenna gain)
- Typical Reach: 800 - 1000ft (250 - 300m)
- Interfaces: 3 x RJ-45 100/1000 Base-T
- Ethernet Features: IEEE 802.1d transparent bridging, VLAN & VLAN stacking, Jumbo frames
- Security: AES 128-bits
- Management and Provisioning: Zero-touch turn up; In-band, out-of-band management, Web GUI: (one-click configuration of local and remote units) and embedded CLI, SNMPv2/3, TACACS+, RADIUS
- Conformance: Radio: FCC Part 15.255, EMC: FCC 47CFR.part 15, Safety: UL 60950
- Power Supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at+)
- PoE-Out: ETH2: 26W, 802.3at, ETH3: 13W, 802.3af
- Environmental:
- Operating Temperature: -22 to 131°F (-30 to 56°C)
- Optional: -49 to 131°F (-45 to 56°C)
- Ingress Protection Rating: IP65 (optional IP67)
- Dimensions: 7.5 x 5.2 x 3.5" (190.5 x 132.08 x 88.9mm)
- Weight: 3lbs (including mounting kit)
