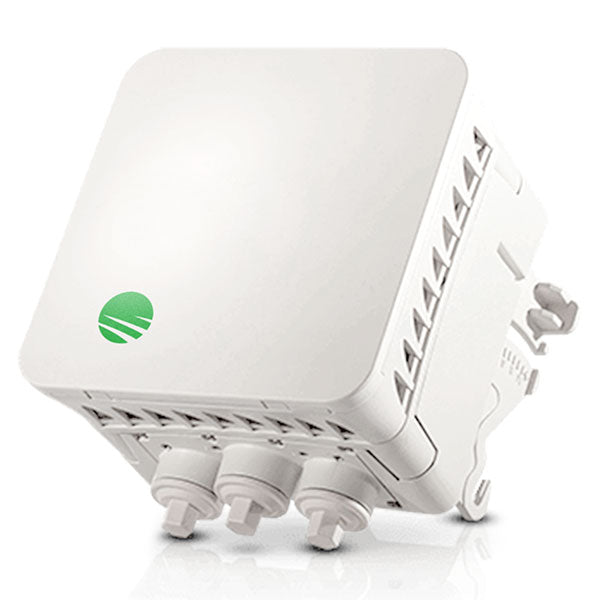

Siklu EtherHaul 614TX 57-66/57-71GHz PoE ODU w/Integrated Antenna w/500Mbps Upgradeable to 1Gbps (VEHP215)

Siklu EtherHaul 614TX 57-66/57-71GHz PoE ODU w/Integrated Antenna w/500Mbps Upgradeable to 1Gbps (VEHP215)

EH-614TX-ODU-PoE by Siklu
Sold out
$1,867.00
$1,867.00 - $1,867.00
$1,867.00
$1,775.00
$1,775.00 - $1,775.00
$1,775.00

Siklu The EtherHaul-600 series delivers up to 1 Gbps in a form factor that is small enough and rugged enough to be deployed at street level on poles and light fixtures. With the EH-614, Siklu offers a model that can tune from 57GHz up to 71GHz covering 14GHz of spectrum in a single product. When operating in the upper 60GHz portion of the band, distances can be achieved that are as much as 50% further than operation in the lower bands due to the absence of oxygen absorption.

Product Features:

  • Gigabit Throughput on Every Street
  • Interference-Free Operating and Scalable Deployments
  • Robust Carrier Class Construction
  • Streamline Operations with Carrier Ethernet & Synchronization
  • Easiest Installation and Management
  • Exceptional Value
  • Field Proven Technology
Product Specifications:
  • Frequency & Duplexing: 57-66GHz, TDD, 57-71GHz, TDD
  • Channels: 125/250/500MHz wide, 11 non-overlapping channels, 125/250/500MHz wide, 14 non-overlapping channels
  • Modulation and Adaptive Rate: 5 level of hitless adaptive bandwidth, coding and modulation-boost gain by up to 25dB: Up to QAM 64
  • Throughput (Mbps) Aggregated Throughput up to 1000Mbps
  • Link Budget: Including Integrated 36dBi Antenna Gain
  • Interfaces: 3xGbE copper ports
  • Ethernet Features: IEEE 802.1d transparent bridging VLAN & VLAN stacking, 4K VLANs, MEF 9, 14 and 21 compliant Ethernet services Smart Pipes Transparent, Ports Mode, Link aggregation: LAG and LACP (IEEE 802.3ad) Ethernet, Ring Protection Switching: ITU-T G.8032 ERPS Link state propagation, 16KB Jumbo frames, Configurable QOS-aware forwarding, 8 level H-QoS with multi mapping options: L2:802.1p, VLAN id., L2½: MPLS EXP, L3: DSCP
  • Timing: Synchronous Ethernet and 1588v2 TC
  • Encryption: AES 128-bit and 256-bit
  • Management and Provisioning: Zero-touch turn up; In-band, out-of-band management, Web GUI (one-click configuration of local and remote units) & Embedded CLI, SNMPv2/3, TACACS+, RADIUS, Link OAM & Connectivity Fault Management (CFM): IEEE802.3ah & IEEE802.1ag;, performance monitoring: ITU-T Y.1731, IPERF TCP/UDP capacity tester
  • Topologies: Ring, daisy-chain, mesh
  • Conformance: Radio: FCC Part 15.255, ETSI EN 302 217-3 & UK IR 2078 & IR 2000; EMC:, USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety: UL/EN 60950
  • Power Supply: PoE+ (IEEE 802.3at), 26W without PoE-Out; up to 78W with PoE-Out
  • PoE-Out: Port 2 and Port 3 (IEEE 802.3at): 26W+26W / 13W+40W / 50W+0W
  • Environment: Operating Temperature: -45° to +55°C (-49° to +131°F)
  • Ingress Protection Rating: IP67
  • Dimensions: ODU + 0.5ft antenna: 5.9” x 6.1” x 3.5” (16.5 x 16.5 x 10cm)
  • Weight: ODU + 0.5ft antenna: 3.9 lbs. (1.8 kg)
Product Includes:
  • (1) EH-614TX
  • (1) User Manual
