Primus Cable Armored Fiber Optic Cable 12 Strand 9/125 Plenum Single Mode 1000FT Spool
by Primus Cable
SKU FB15-5633-S12PAIA-SPL
Original price
$0
Original price
$1,736.00
-
Original price
$1,736.00
Original price
Current price
$1,736.00
$1,736.00
-
$1,736.00
Current price
$1,736.00

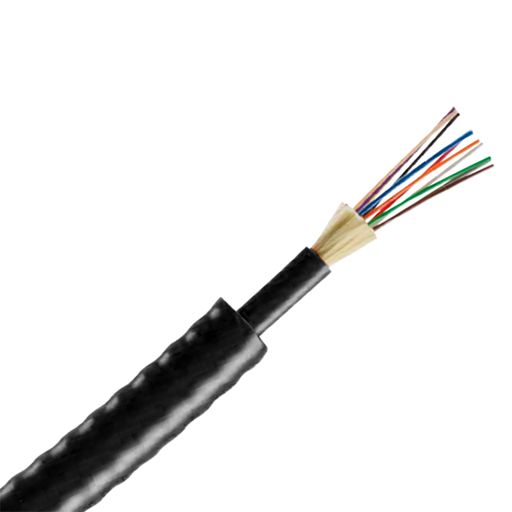

Primus Cable Armored Fiber Optic Cable has a aluminum interlocking armored fiber cable consists of a PVC overall jacket, PVC inner jacket with 2 to 48 tight buffered fibers surrounded by yarn acting as a strength member.
The core is protected by a spirally wrapped aluminum strip that offers easy installation and high crush resistance. This armored fiber cable is OFCP rated for use in plenum air spaces and ducts.
Features
- Provides superior crush resistance for added protection.
- Eliminates the need for inner duct or conduit, thus saving installation time.
- OFCP ratings allow AIA products to be installed throughout the facility.
Applications
- Indoor areas where heavy traffic requires extra protection.
- Intra building backbones.
- General purpose
Specifications
- Storage & Operating Temperature: -40C to +70C
- Fiber Count: 2,4,6,8,12,24, or 48
- Strength Member: Aramid Yarn
- Overall & Inner Jacket Material: Poly Vinyl Chloride
- Armoring Material: Aluminum
- Nominal Outer Diameter: 12 Strand: 15.9 mm
- Core Size: 9 µm
- Wavelength: (1310/1550) nm
- Max. Attenuation (0.5/0.4) db/km
