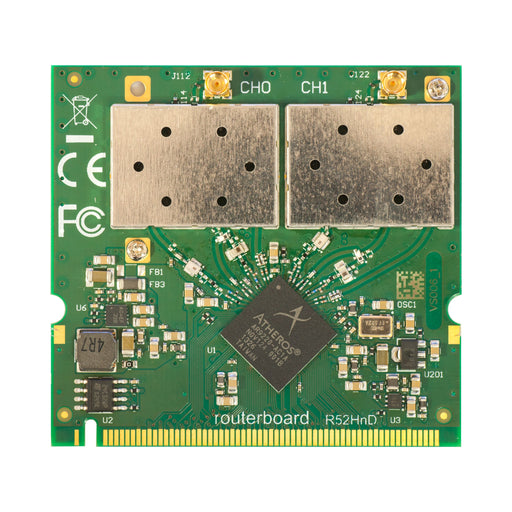

MikroTik R52HnD 802.11a/b/g/n 400mW miniPCI card (with MMCX connectors)

MikroTik R52HnD 802.11a/b/g/n 400mW miniPCI card (with MMCX connectors)

R52HnD by MikroTik
MikroTik R52HnD Datasheet
$82.00 - $82.00
$82.00
$82.00 - $82.00
$82.00

The MikroTik R52HnD is an update to the popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz and now has even higher power (400mW). It keeps the same form factor as the previous card, but has an improved ESD protection (+/- 15kV).

Product Specifications:
  • Product code: R52HnD
  • Chipset: AR9220
  • Wireless: 2.4 / 5 GHz (selectable)
  • Frequency range: 2200-2700 or 4800-6100 MHz
  • Standards: 802.11a/b/g/n
  • Max output power: 400mW
  • Format: miniPCI
  • Dimensions: 60 x 55 x 7mm
  • Connectors: 2x MMCX
  • Supported channels: 5/10/20/40 MHz
  • Temperature: -40°C to +70°C
  • MAX power consumption: 7 W
  • ESD protection: +/- 15kV
