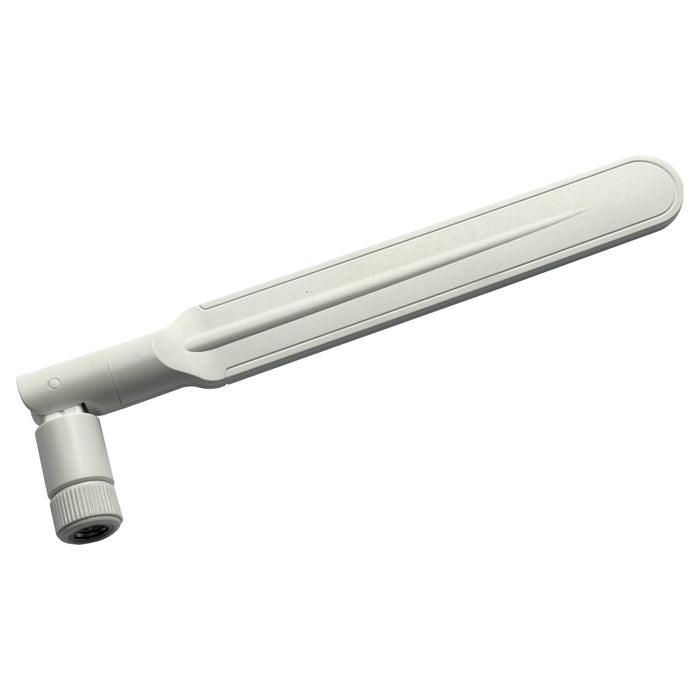

MikroTik LGO-LTE-W Compact LTE & LoRa Antenna - 3 dBi, SMA Male

MikroTik LGO-LTE-W Compact LTE & LoRa Antenna - 3 dBi, SMA Male

by MikroTik
SKU DPD0830AL08
$12.00 - $12.00
$12.00
$12.00
$12.00 - $12.00
$12.00
+$0.87 Tariff Surcharge added at checkout. i Due to current Section 301 import tariffs and related surcharges, a fee applies to this product. This fee will be added at checkout.

Product Information

Overview

The MikroTik LGO-LTE-W is a compact 617–5925 MHz antenna for LTE and LoRa connectivity. With 3 dBi gain and an SMA male connector, it provides a space-saving antenna option for compatible IoT equipment.

Its smaller footprint compared with the HGO-LTE-W makes it well suited for installations where space is limited, including vending machines, industrial cabinets, remote monitoring systems, cold-chain equipment, and asset-tracking devices.

MikroTik recommends the LGO-LTE-W for KNOT LR8G and LR9G kits, KNOT Embedded LTE, and KNOT Embedded LTE4 Global. Its compact dimensions are particularly convenient for the smaller KNOT Embedded form factor.

Ideal Applications

  • Vending and coffee machines with limited installation space
  • Industrial cabinets and compact IoT enclosures
  • Remote monitoring systems
  • Cold-chain monitoring equipment
  • Compact asset-tracking devices

Highlights

Key Features

Wide Frequency Coverage

A 617–5925 MHz frequency range supports LTE and LoRa connectivity for compatible IoT equipment.

Compact for Tight Installations

A smaller footprint than the HGO-LTE-W helps fit antenna connectivity into equipment cabinets, machines, and other installations with limited space.

SMA Male Connection

An SMA male connector provides a direct connection to compatible antenna ports, with a specified antenna gain of 3 dBi.

Recommended for KNOT Devices

Pair with KNOT LR8G and LR9G kits, KNOT Embedded LTE, or KNOT Embedded LTE4 Global, with a size particularly suited to compact embedded installations.

Product Details

Technical Specifications

Product Details

  • Product Name: MikroTik LGO-LTE-W
  • Product Code: DPD0830AL08
  • Product Type: LTE and LoRa antenna

Antenna Specifications

  • Frequency Range: 617–5925 MHz
  • Antenna Gain: 3 dBi
  • Connector Type: SMA male

Recommended Devices

  • KNOT LR8G kit
  • KNOT LR9G kit
  • KNOT Embedded LTE
  • KNOT Embedded LTE4 Global

Physical and Environmental

  • Dimensions: 172 × 19 × 13 mm (6.77 × 0.75 × 0.51 inches)
  • Operating Temperature: -30°C to +75°C
