MikroTik hEX Refresh E50UG 5-Port Gigabit Wired Router with 512MB RAM

MikroTik hEX Refresh E50UG 5-Port Gigabit Wired Router with 512MB RAM

by MikroTik
SKU E50UG
$86.00 - $86.00
$86.00
$86.00
$86.00 - $86.00
$86.00
+$7.91 Tariff Surcharge added at checkout. i Due to current Section 301 import tariffs and related surcharges, a fee applies to this product. This fee will be added at checkout.

Product Information

Overview

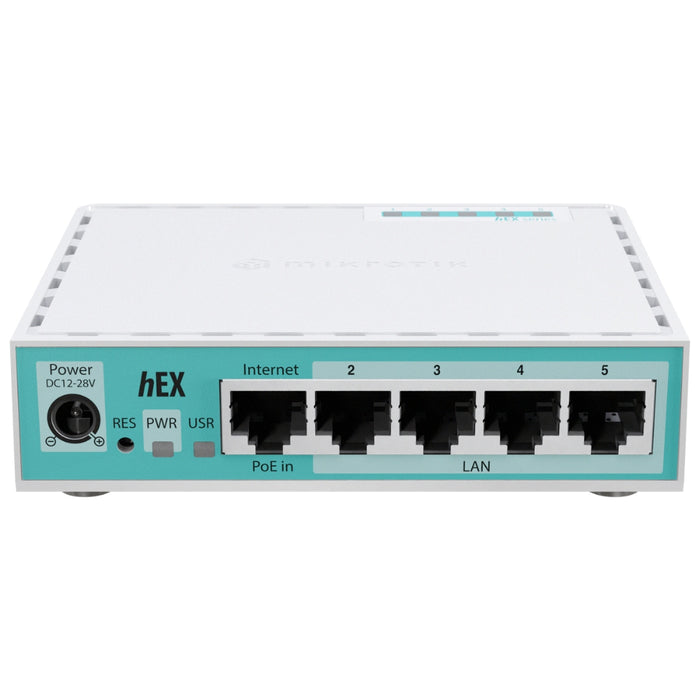

The MikroTik hEX Refresh (E50UG) is a compact wired Gigabit router for homes, small offices, and networking labs. Five Gigabit Ethernet ports provide connections for computers, switches, and other network devices, while RouterOS v7 offers flexible network configuration and management.

A dual-core 950 MHz ARM processor and 512 MB of DDR3 RAM provide an upgrade over the previous hEX RB750Gr3. The E50UG also includes 128 MB of NAND storage and a full-sized USB Type-A port for connecting external storage for file and media sharing.

The fanless enclosure fits easily on a desk or shelf. Power the router using the included adapter or a compatible 12–28 V passive PoE source. This is a wired-only router; wireless connectivity requires a separate access point.

Ideal Applications

  • Home and small-office wired networks
  • RouterOS learning and networking labs
  • Upgrading an existing hEX RB750Gr3 installation
  • Networks using separate wireless access points
  • USB storage sharing in small networks

Highlights

Key Features

Five Gigabit Ethernet Ports

Connect computers, switches, and other wired devices through five 10/100/1000 Mbps Ethernet ports.

Upgraded Processor and Memory

A dual-core 950 MHz ARM CPU and 512 MB of DDR3 RAM provide additional processing resources compared with the previous hEX generation.

RouterOS v7 and USB Connectivity

RouterOS v7 comes with a Level 4 license. A USB Type-A port supports external storage for file and media sharing across your network.

Quiet Operation and Flexible Power

The compact, fanless enclosure operates quietly and accepts power through its DC jack or passive PoE input. A power adapter is included.

Product Details

Technical Specifications

System Specifications

  • Product Code: E50UG
  • Product Name: hEX Refresh
  • CPU: Dual-core EN7562CT, 950 MHz
  • CPU Architecture: ARM 32-bit
  • Memory: 512 MB DDR3 RAM
  • Storage: 128 MB NAND
  • Switch Chip: EN7523
  • Operating System: RouterOS v7
  • RouterOS License: Level 4

Network Interfaces and USB

  • Ethernet Ports: 5 × 10/100/1000 Mbps RJ45
  • Built-In Wireless: None
  • USB Port: 1 × USB Type-A
  • Maximum USB Current: 1 A
  • USB Power Reset: Supported

Power

  • Power Inputs: DC jack and passive PoE-in
  • DC Input Voltage: 12–28 V DC
  • PoE Input Voltage: 12–28 V DC
  • PoE Type: Passive PoE
  • Maximum Power Consumption: 10 W
  • Maximum Power Consumption Without Attachments: 4 W

Physical and Environmental

  • Dimensions: 113 × 89 × 28 mm (4.45 × 3.50 × 1.10 inches)
  • Form Factor: Compact desktop enclosure
  • Cooling: Passive, fanless
  • IP Rating: IP20
  • Tested Ambient Temperature: -40°C to +70°C

In the Box

What’s Included

  • MikroTik hEX Refresh E50UG router
  • 24 V 0.38 A power adapter

Resources

Product Documentation

Datasheet
