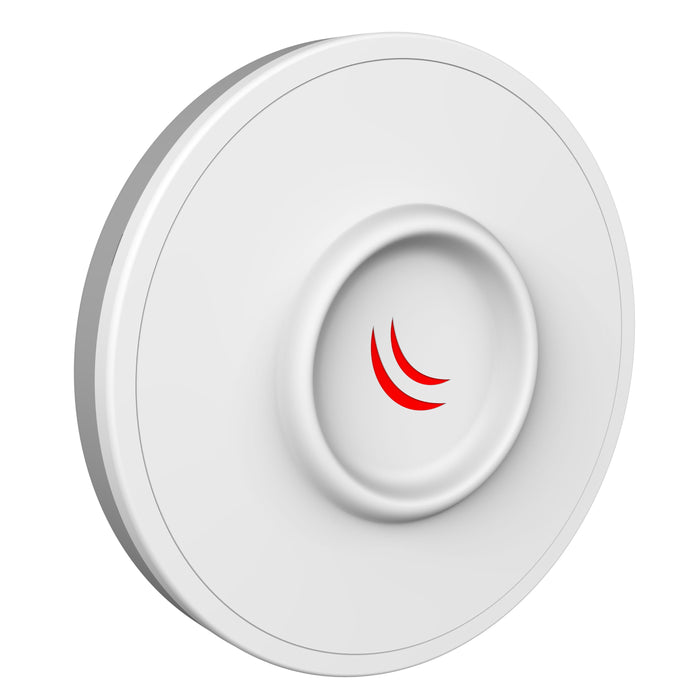

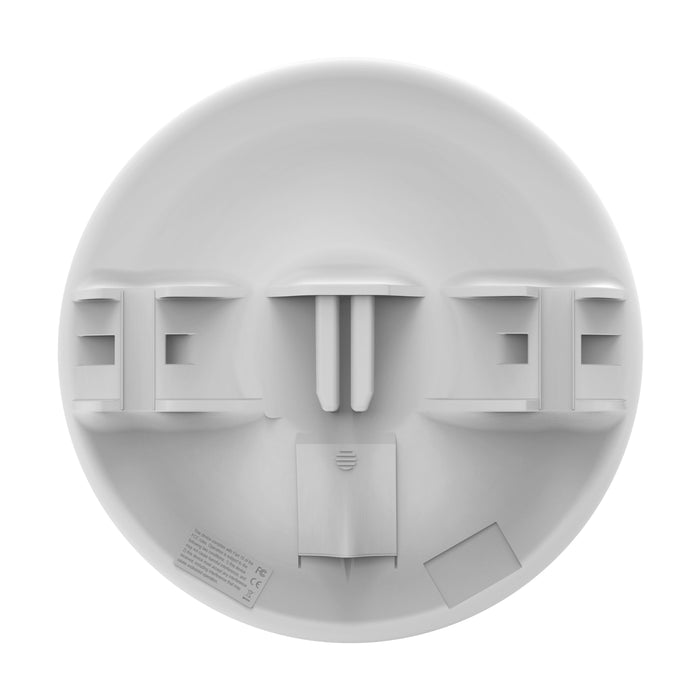

MikroTik Disc Lite 5ac High Gain 5GHz 21 dBi CPE/Backbone

MikroTik Disc Lite 5ac High Gain 5GHz 21 dBi CPE/Backbone

RBDiscG-5acD-US by MikroTik
MikroTik RBDiscG-5acD-US Datasheet MikroTik RBDiscG-5acD-US Datasheet
$110.00 - $110.00
$110.00
$110.00 - $110.00
$110.00

MikroTik DISC Lite5 ac is a low cost high gain 5 GHz CPE. MikroTik has improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances. DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. it comes complete with a power supply, gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting system, including the quickMOUNT pro series. The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5GHz Point-to-Point links.


Product Specifications:

  • Product code: RBDiscG-5acD
  • Architecture: ARM 32bit
  • CPU: IPQ-4018
  • CPU core count: 4
  • CPU nominal frequency: 600 MHz
  • Dimensions: ⌀ 265mm, height: 80mm
  • License level: 3
  • Operating System: RouterOS
  • Size of RAM: 265 MB
  • Storage size: 16 MB
  • Storage Type: FLASH
  • Tested ambient temperature: -40°C .. +70°C
  • LEDs: 8x LEDs (5x user LEDs)
  • Antenna Beam width: 12deg
  • Antenna gain: 21 dBi
  • Consumption: 7 W
  • Power options: Passive PoE input 10 - 30 V
  • Frequency Range: 5170-5250 MHz; 5725-5835 MHz
  • Wireless: IPQ-4018, wireless built-in 5 GHz 802.11X, dual chain
  • Ethernet: One 10/100/1000 Mbps Ethernet port with Auto-MDI/X


Powering
  • PoE in: Passive PoE
  • PoE in input Voltage: 10-30 V
  • Number of DC inputs: 1 (PoE-IN)


Wireless
  • Wireless 5 GHz number of chains: 2
  • Wireless 5 GHz standards: 802.11ac
  • Antenna gain dBi for 5 GHz: 21
  • Wireless 5 GHz chip model: IPQ-4018

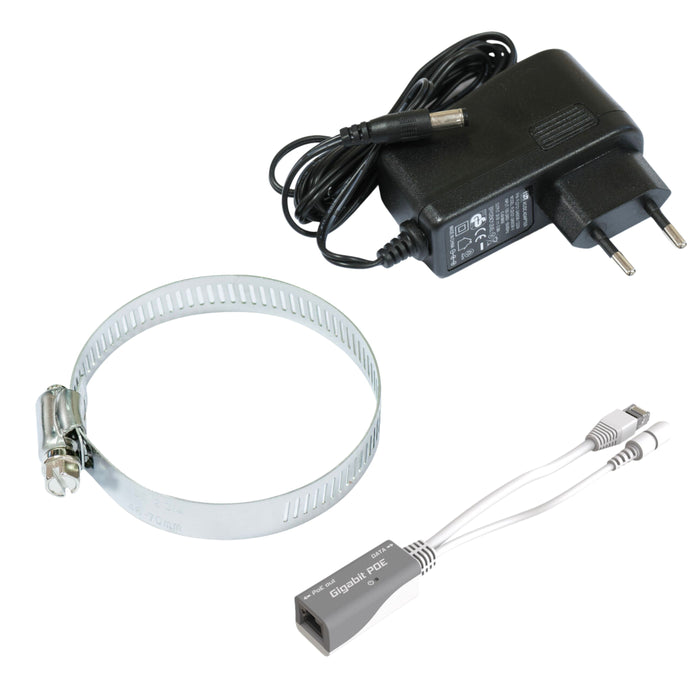

Product Includes:


(1) RBDiscG-5acD-US

(1) 24 V .38 A power adapter

(1) Metal ring

(1) Gigabit PoE injector
