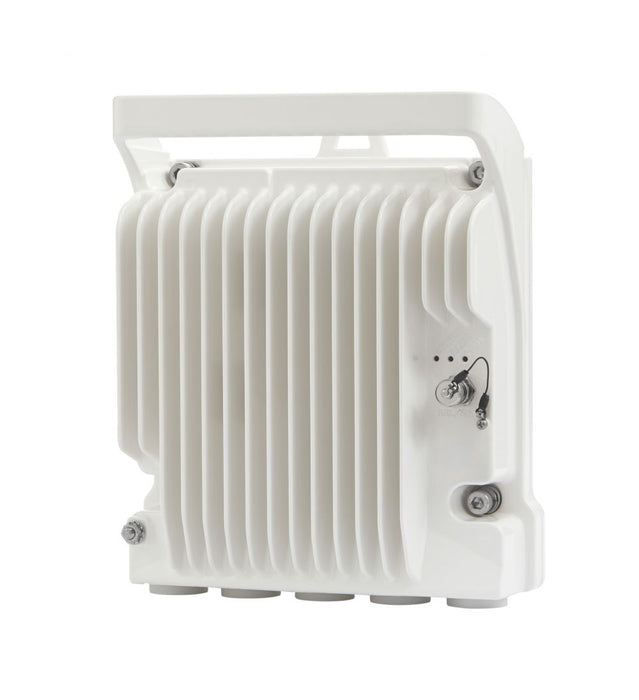

Cambium PTP 820S 11GHz Single-Core All-Outdoor Radio [C110082B015A]

Cambium PTP 820S 11GHz Single-Core All-Outdoor Radio [C110082B015A]

C110082B015A by Cambium Networks
Sold out
$5,033.00 - $5,033.00
$5,033.00
$5,033.00 - $5,033.00
$5,033.00

PTP 820S Series - A Single Platform Serving All Radio Transport Requirements

The Cambium C110082B015A is a PTP 820 point-to-point licensed microwave backhaul radio operating on frequencies between 11185 and 11485 (Ch1W6). These radios are designed to handle configurations for almost any deployment scenario. The PTP 820 utilizes Line of Site MiMO (LoS MiMO) technology, modulation of up to 2048QAM, and wider channel bandwidths ensure great throughput and spectral efficiency. Using high-density nodes and integrated radio units, the PTP 820 can offer flexibility in setting up indoor, split-mount, or outdoor configurations.

Product Specifications:
  • Frequency Range: Wide 11GHz
  • Configurations: 1+0, 1+1 HSB
  • Radio Features: Protection: 1+1 HSB, High spectral utilization: QPSK to 2048 QAM w/ACM
  • Transport Technology: All packet
  • TDM Interface: None
  • Modulation: QPSK to 2048 QAM w/ACM
  • L2 Capacity: 605Mbps
  • Capacity with Multi-Layer Compression: 833Mbps
  • Configuration: 1+0, 1+1 HSB
  • LOS MiMO: No
  • XPIC: No
  • Management Interface: 1 x 10/100 Base-T
  • External Alarm: None
  • Environment: -27.4 to 131deg F (-33 to 55deg C)
  • Power Input: -48VDC
  • PoE Injector Power Input: -48VDC or +24VDC
  • Power Consumption: 32W
This product only includes the radio. Power supply and mounting hardware sold separately.
