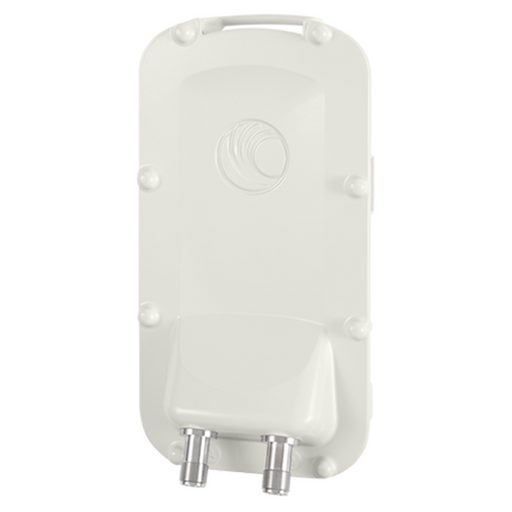

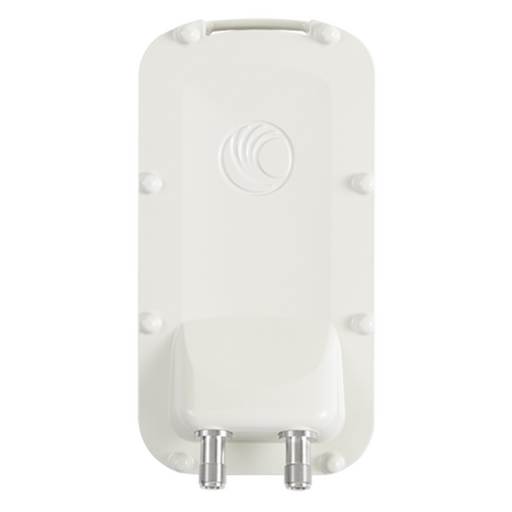

Cambium ePMP 2000 5GHz Access Point w/ Intelligent Filtering and Sync (FCC, US/CA version)
Cambium Networks ePMP 2000 is the next generation Access Point that brings Interference Tolerance to a whole new level with Cambium's Hypure Technology, which combines intelligent filtering and smart beamforming. The Intelligent Filtering of the Access Point works for both receive and transmit. It protects any channel from noise from off-channel interferers with a filter that dynamically moves around the channel. On the transmit side, it protects the RF environment by reducing off-channel transmission noise. The Smart Beaming Capability works to mitigate the effects of on-channel interference. The System learns the locations of each served Subscriber Module and forms a narrow beam towards the desired Subscriber Module while that radio is transmitting in the uplink. This reduces the gain on the uplink for on-channel interferers that are transmitting at an azimuth angle different than the Subscriber Module.
Product Features:- Supports GPS Synchronization and SM Transmit power control to allow for Frequency Reuse
- Supports up to 120 Subscriber Module
- Intelligent Filtering reduces off-channel interferers and noise
- Supports a wide frequency range: 5150MHz - 5970MHz
- 802.3at compliant 100/1000BaseT Interface
- Channel Spacing: Configurable on 5MHz increments
- Frequency Range: 5150 - 5970 MHz (exact frequencies as allowed by local regulations)
- Channel Width: 5 | 10 | 20 | 40 MHz
- MAC (Media Access Control) Layer: Cambium Proprietary and optionally standard 802.11n
- Physical Layer: 2x2 MIMO/OFDM
- Ethernet Interface: 100/1000BaseT, rate auto negotiated, 802.3at compliant
- Powering Methods Supported: 56 V PoE (included), standard 802.3at PoE Supply, or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
- Protocols Used: IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
- Network Management: HTTPs, SNMPv2c, SSH
- VLAN: 802.1Q with 802.1p priority
- Subscriber per Sector: Up to 120
- ARQ: Yes
- Nominal Receive Sensitivity (w/FEC) @ 20 MHz Channel: MCS0 = -93 dBm to MCS15 = -69 dBm (per branch)
- Nominal Receive Sensitivity (w/FEC) @ 40 MHz Channel: MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)
- Modulation Levels (Adaptive): MCS0 (BPSK) to MCS15 (64QAM 5/6)
- GPS Synchronization: Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
- Quality of Service: Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
- Antenna: Sector Antenna (C050900D021A) Available
- Transmit Power Range: 0 to +30 dBm (combined, to regional EIRP limit) (1dB interval)
- Sector Antenna Connection: 2 x 50 ohm, RP (Reverse Polarity) SMA
- Beamforming Antenna Connection: 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
- GPS Antenna Connection: 1 x 50 ohm, RP (Reverse Polarity) SMA
- Surge Suppression: 1 Joule Integrated
- Environmental: IP55
- Temperature: -30 C to +55 C (-22 F to +131 F)
- Power Consumption: 20 W Maximum
- Input Voltage: 44 V to 59 V
- Weight: 0.7 kg (1.5 lbs) without brackets
- Dimensions (L x W xH): 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
- Encryption: 18 bit AES (CCMP mode)
- CE: EN 302 502 v1.2.1, EN 301 893 v1.7.1
(1) ePMP 2000
(1) Gigabit PoE
(1) US Plug
(1) GPS Antenna
(2) Pole Clamps
(1) Environmental Cover
(2) Mounting Brackets
