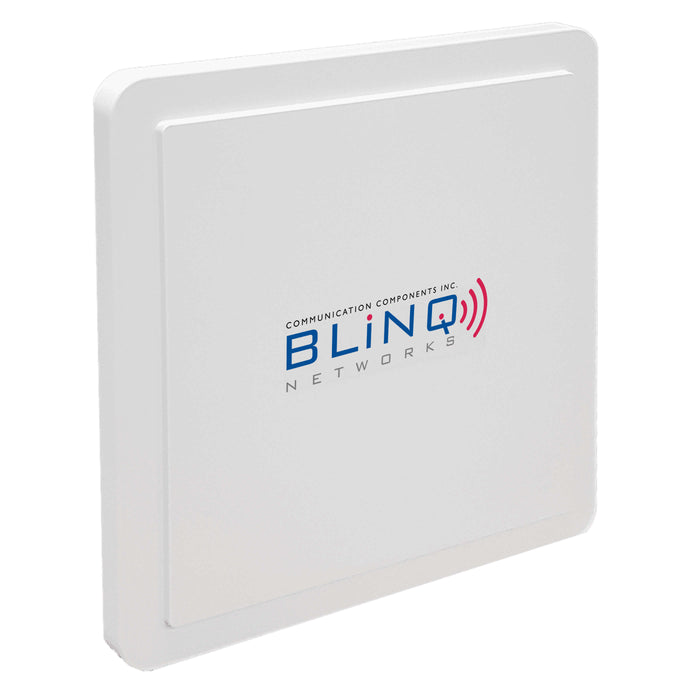

BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain 20+ / -1.0dBi CPE CAT6 LTE MIMO Band 42 / 43 / 48
Product Specifications:
- Base Modul: FWC-110HG-35
- Peak Throughput: 220 Mbps (Config 2-7)
- Carrier Aggregation: 2CC up to 20 MHz each
- Frequency Band: TDD LTE Bands 42, 43, 48
- Transmit Power: Up to +23 dBm
- Tx Power Dynamic Range: 63 dB
- Receiver Sensitivity: -93-95 dBm
- Integrated Antenna Peak Gain: 20 ± 1.0dBi
- Channel Bandwidth/Carrier: 10, 20MHz
- MIMO: DL MIMO 2x2 & 4x2
- LTE Compliance: 3GPP Release 10 & 11
Mechanical & Regulatory:
- Dimensions: (L x W x H) 340 (L) 340 (W) 75(H)mm w/o mounting rib
- PoE: 802.3at
- Survival Wind Speed: > 200 km/hr
- Weight: 2 Kg
- Operating Humidity: 5 to 95
- Operational Temperature: -40 to 55 °C
- MTBF ODU: 300,000 at 55 ͦC
- LTE: EN 301 908-1 V11.1.1 EN 301 908-13 V11.1.1
- Safety: IEC 60950-1/EN 60950-1
- EMC: Draft EN 301 489-52 V.1.1.0
- Environmental: IP67
Networking & OAM:
- Ethernet Ports: 802.3, IEEE 802.3u, IEEE 802.3ab
- SIM Function: 1.8V, 3V SIM and USIM card
- PIN/PUK Code: Yes
- Stack: IPv4 , IPv6 , Dual
- NAT/Dynamic NAT: Yes
- Router Mode: Yes
- Bridge Mode: Yes
- Tunnel Mode: GRE, L2TP, IPsec, PPTP -available per request
- DHCP Server in LAN: Yes (253 clients)
- DNS Relay: Yes
- DDNS Client: Yes
- VPN Pass-Through – IPSec/PPTP/L2TP: Yes
- UPNP: Yes
- HTTP Server: Yes
- ALG Support (FTP/SIP/…): Yes
- Networking Debug/Testing IPerf, Ping , Trace-route
Device Management & Security:
- WEB: Yes
- SNMP: Yes
- TR-069 (TR-0143): Yes (ready for IOT)
- FOTA Upgrade: Yes (IOT with different network )
- System Log/Diagnostic: Yes (chip set embedded tool)
- User Name/Password Configuration: Yes
- L2/L3 Firewall Basic/Port Forwarding/Port Trigger/DMS / Remote
- WAN Ping / Remote Web Access Control
