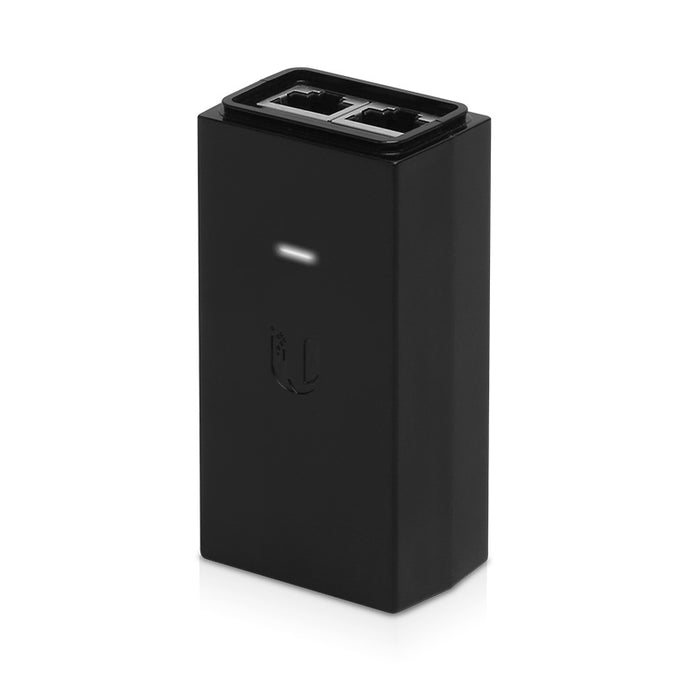

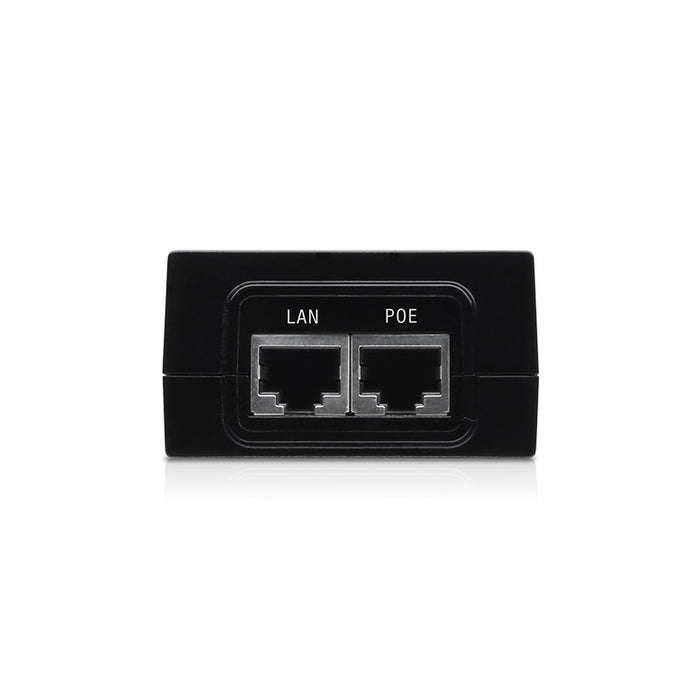

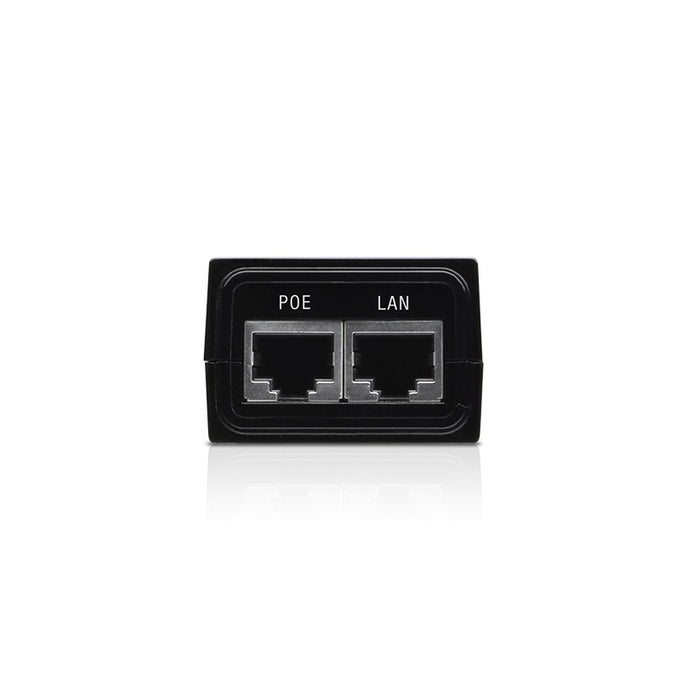

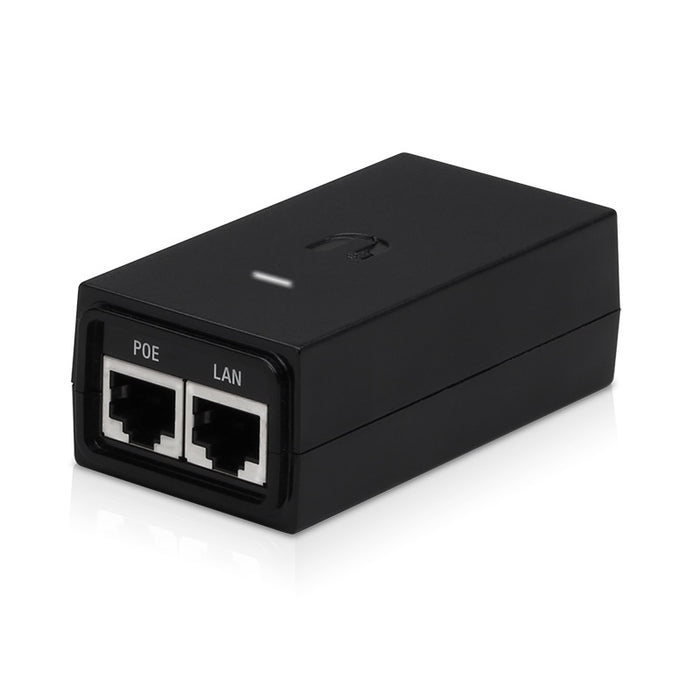

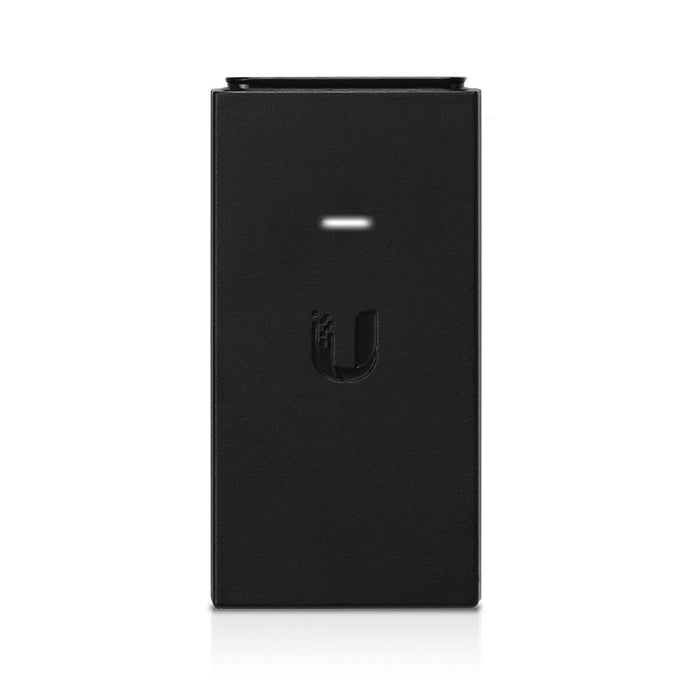

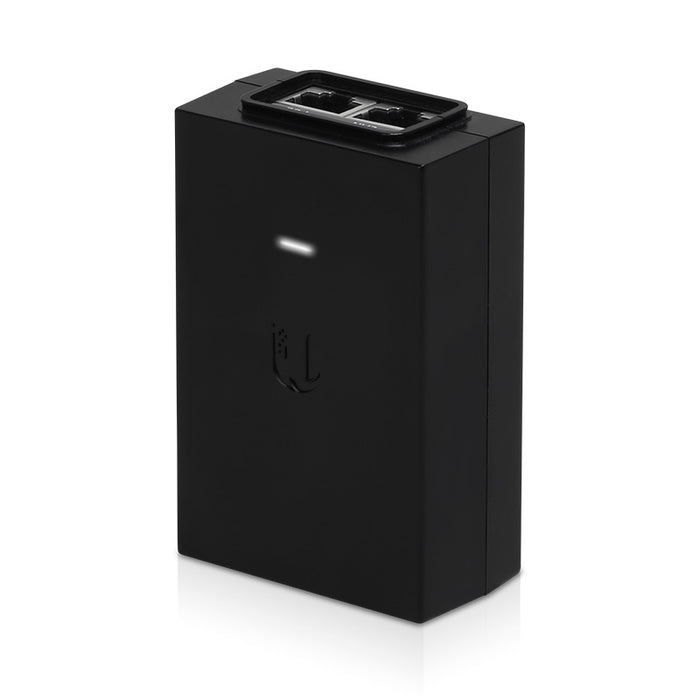

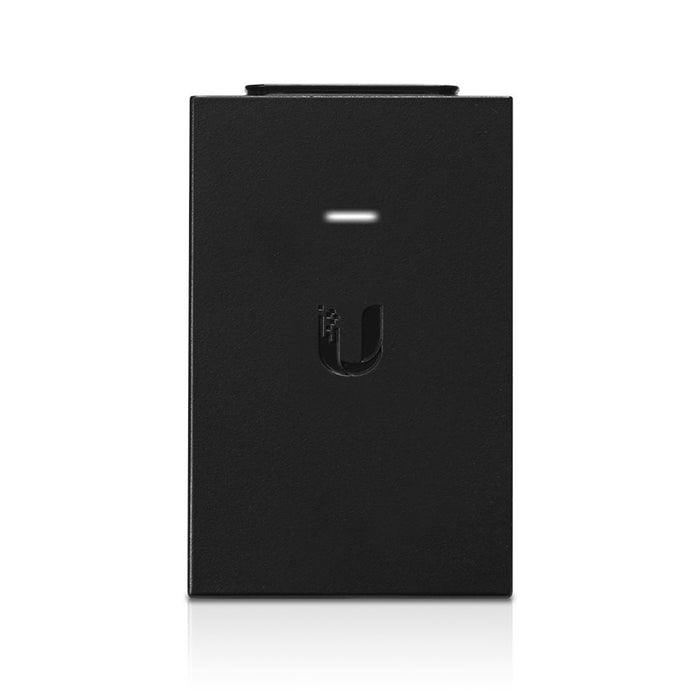

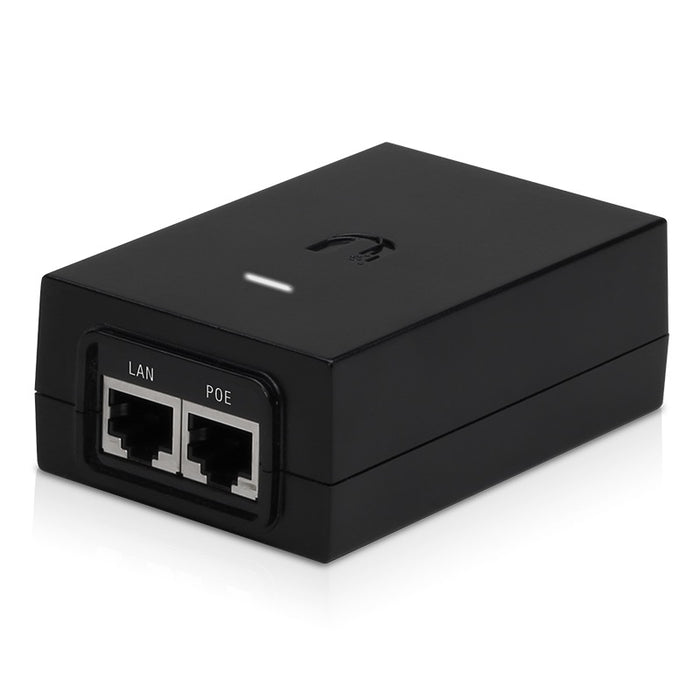

Ubiquiti 24V DC 0.5A 12W Gigabit Replacement PoE Adapter

POE-24-12W-G by Ubiquiti Networks
Original price $19.95 - Original price $19.95
Original price
$19.95
$19.95 - $19.95
Current price $19.95

Ubiquiti Networks POE-24-12W-G is a 24VDC 0.5 12W replacement Gigabit PoE adapter for use with airMAX and UniFi products. It features ESD protection and earth grounding.


Product Specifications:

  • Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14")
  • Weight: 99.4g (3.51oz)
  • Gigabit LAN Port: Yes
  • Remote Reset Capability: Yes
  • Reset Button Yes
  • Input Voltage: 90-260VAC @ 47064Hz
  • Input Current:
  • 0.3A @ 120VAC
  • 0.2A @ 240VAC
Inrush Current:
  • <30A Peak @ 120VAC
  • <60A Peak @ 230VAC
  • Efficiency: 75+%
  • Output Ripple: 1% Max.
  • Switching Frequency: 50kHz
  • Line Regulation: ±1%
  • Load Regulation: ±3%
  • 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 35 to 95% non-condensing
  • AC Connector: IEC-320 C6
  • Data IN/PoE: RJ45 Shielded Socket
  • Surge Protection: Difference and Common Mode
  • Clamping Protection: 11V Data, 60V Power
  • Max. Surge Discharge: 1500A (8/20us) Power
  • Peak Pulse Current: 36A (10/1000us) Data
  • Shunt Capacitance: <5pF Data
  • Response Time: <1ns
Product Documentation:


POE-24-12W-G DatasheetTechnical Support
