MikroTik SXTsq Lite5 5GHz AP w/ 16dBi 23deg Antenna INTL

RBSXTsq5nD by MikroTik
Sold out
Original price $44.95 - Original price $44.95
Original price
$44.95
$44.95 - $44.95
Current price $44.95

SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

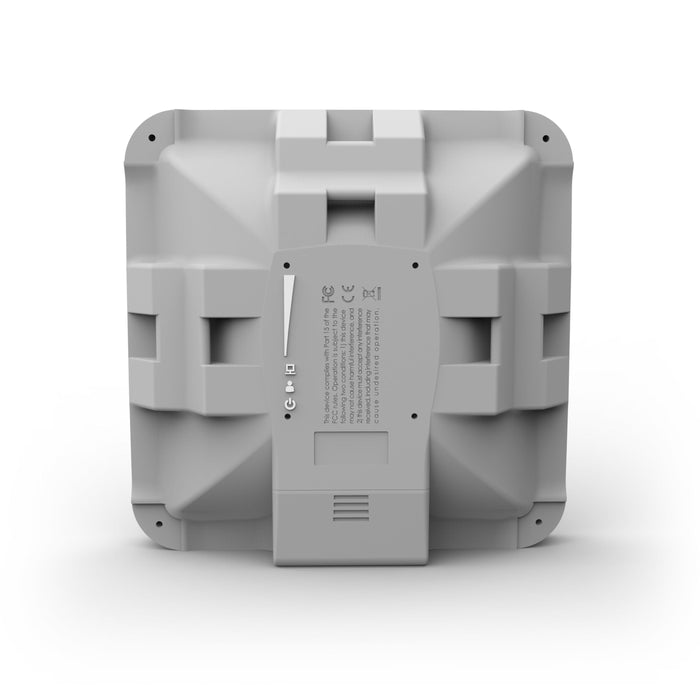

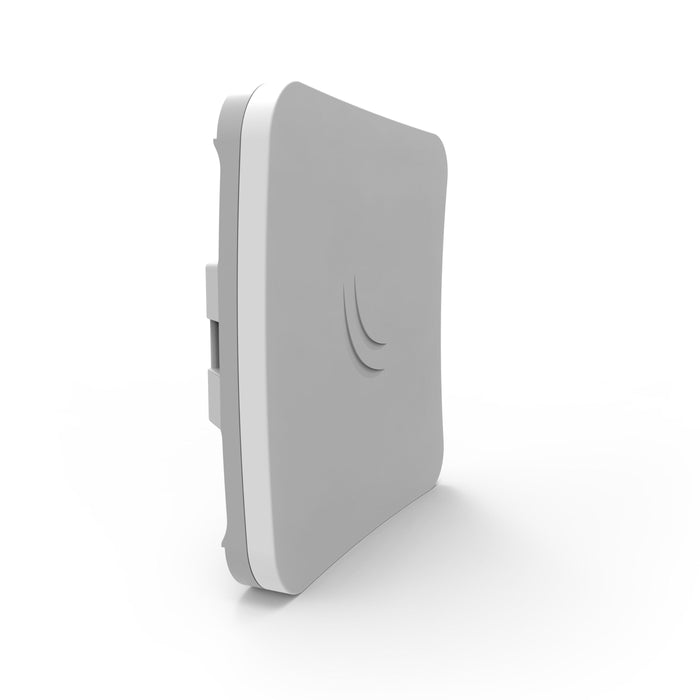

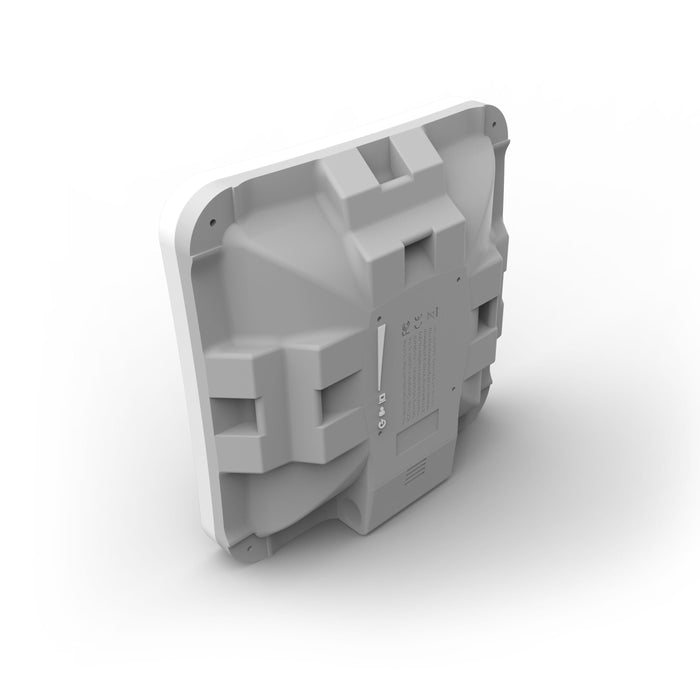

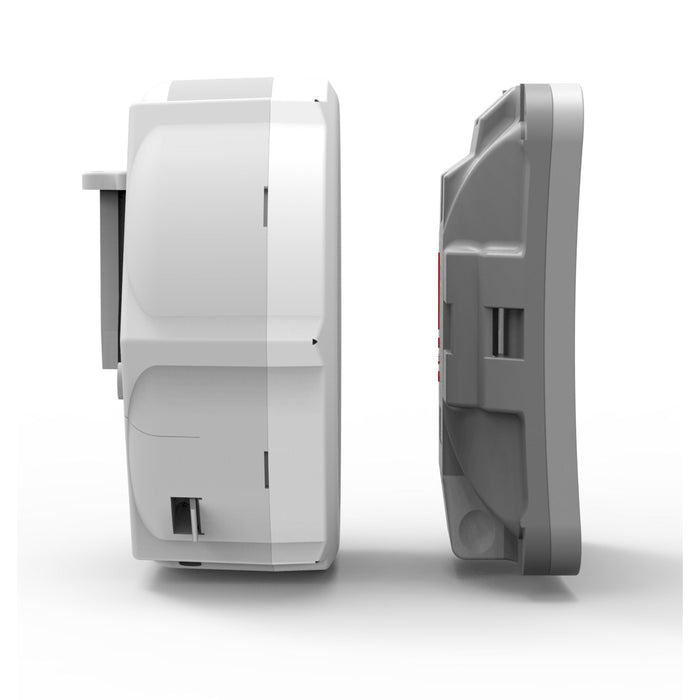

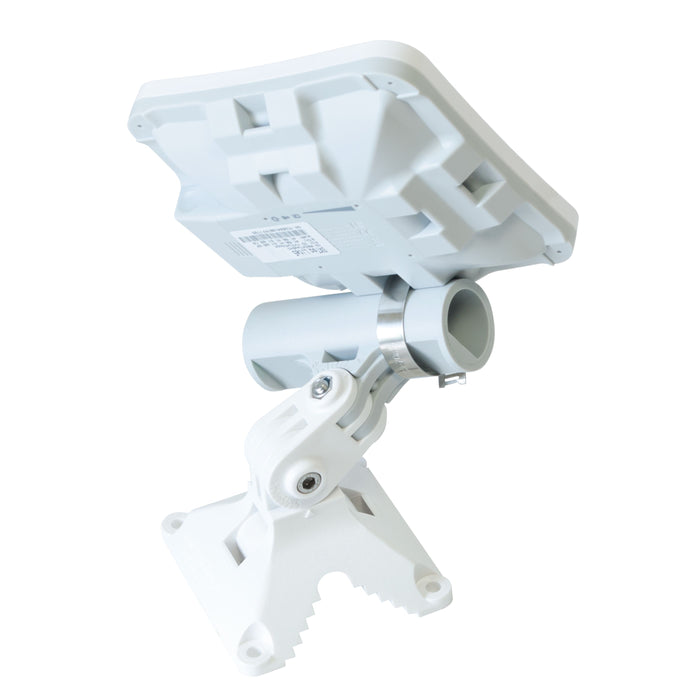

MikroTik RBSXTsq5nD is a compact and lightweight outdoor wireless device with an integrated antenna. It's perfect for point to point links of up to 12km or as a CPE unit. It is compact, weatherproof, and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced, the SXTsq is two times thinner. The enclosure includes slots for directly attaching a metallic ring mount in three different mounting places, with ability to be mounted on horizontal railings.


Product Specifications:

  • CPU: AR9344
  • CPU Nominal Frequency: 600MHz
  • CPU Core Count: 1
  • Size of RAM: 64MB
  • Storage: 16MB Flash
  • 10/100 Ethernet Ports: 1
  • Wireless Bands: 5GHz
  • Operating Frequency: 5150 to 5875MHz
  • Protocols: 802.11a/n
  • Chains: 2
  • Antenna Gain: 16dBi
  • Antenna Beamwidth: 23°
  • Wireless Chip Model: AR9344
  • PoE In: Yes
  • Supported Input Voltage: 10 to 30V, passive PoE
  • Dimensions: 129 x 129 x 34mm
  • Package Dimensions: 255 x 180 x 45mm
  • Weight: 295g
  • Package Weight: 492g
  • Operating Temperature: -40 to 70°C
  • License Level: 3
  • Operating System: RouterOS
  • Max Power Consumption: 6W

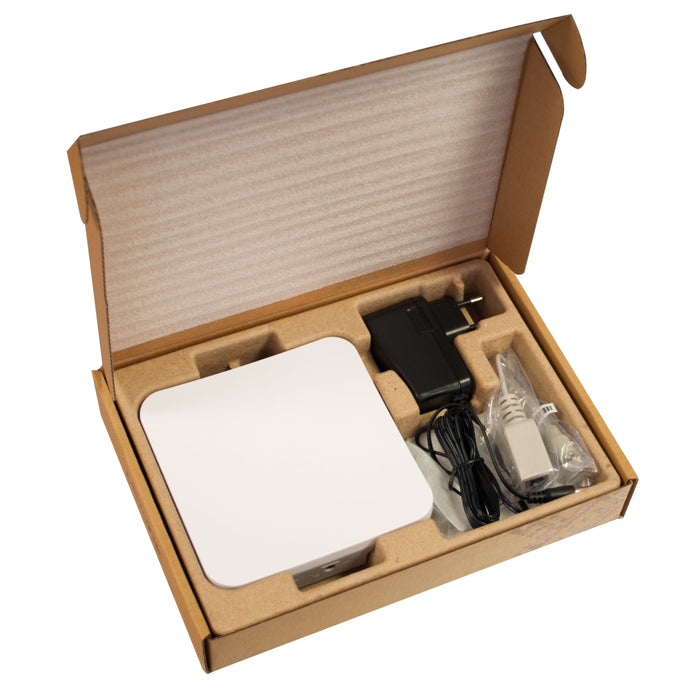

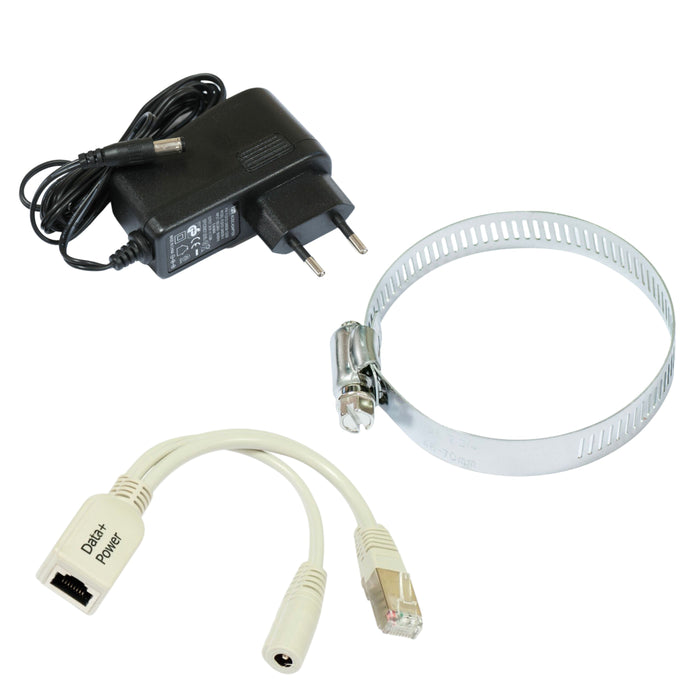

Product Includes:
  • (1) RBSXTsq5nD
  • (1) 24V 0.38A Power Adapter
  • (1) Metal Ring
  • (1) PoE Injector
Product Documentation:


RBSXTsq5nD Datasheet
