MikroTik RB4011 2412-2462MHz, 5170-5250MHz, 5725-5835MHz Dual-Band SFP+ 4 Chain 10 Gigabit Ports L5 US

US and Canada Version: Operating Frequency 2412-2462MHz, 5170-5250MHz, 5725-5835MHz is supported. International version with operating frequency 2412-2484MHz and 5150-5875 SKU: RB4011iGS+5HacQ2HnD-IN

MikroTik RB4011 operating frequency 2412-2462MHz, 5170-5250MHz, 5725-5835MHz uses a powerful quad core Cortex A15 chip, same as in our carrier grade RB1100AHx4 unit. The CPU supports IPsec hardware acceleration, there is 1GB of RAM, so this device will easily handle any task you have configured RouterOS to perform. All of this power, in a compact and professional looking solid metal enclosure in matte black. The WiFi model is a dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5 GHz. For legacy devices, the unit also has a dual chain 2 GHz interface. The device has large external antennas for amazing 360 degree coverage. (WiFi Model) US

Product Specifications

• Product code RB4011iGS+5HacQ2HnD-IN
• CPU 4 core AL21400 1.4 GHz
• Size of RAM 1 GB
• Storage NAND 512 MB
• 10/100/1000 Ethernet ports 10
• SFP+ port 1
• Switch chip model RTL8367SB
• Wireless 2.4 GHz radio
        Wireless regulations Specific frequency range may be limited by country regulations
        Operating frequency 2412-2462MHz
        Wireless interface model R11e-2HnD
        Supported protocol 802.11b/g/n
        Chains 2
• Wireless 5 GHz radio
        Operating frequency 5170-5250MHz & 5725-5835MHz
        Wireless interface model QCA-9984
        Supported protocol 802.11a/n/ac
        Chains 4
• Antenna beam width 360°
• Antenna gain 3 dBi (2 antennas dual band, 2 antennas single 5 GHz band)
• Power Jack 1
• PoE in Yes (port 1), passive, 18 - 57 V
• PoE out Yes (port 10), passive, up to 57 V
• Max power consumption 23 W without PoE out, 44 W with PoE out
• Supported input voltage 12 V - 57 V (jack)
• Voltage Monitor Yes
• PCB temperature monitor Yes
• Operating temperature -40 C .. +45 C
• Dimensions 228 x 120 x 30 mm
• Serial port RJ45
• License level 5
• Operating System RouterOS

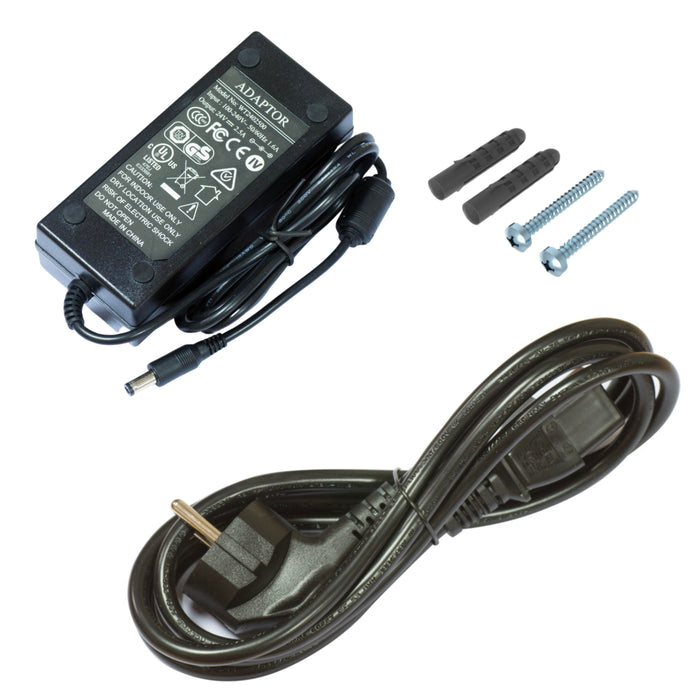

(1) Power Adapter (24V 2.5A)

(1) IEC Power Cord
