MikroTik QRT-5 5GHz AP 23dBi Dual-Pol Integrated Antenna [RB911G-5HPnD-QRT]

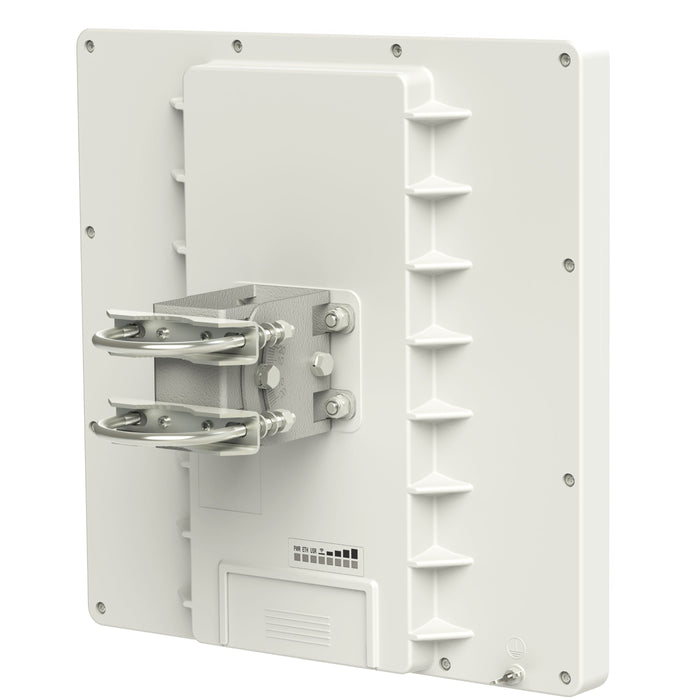

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 23dBi antenna and a high power 5GHz wireless transmitter. Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilize the benefit of 802.11n high speed wireless. Easy to use and quick to deploy, QRT is ideal for point to point links.

Product Features:

• CPU: Atheros AR9342 600MHz network processor
• Memory: 64MB DDR onboard memory
• Data storage: 128MB NAND memory chip
• Ethernet: One Gigabit port with Auto-MDI/X
• Extras: Beeper, signal and status LEDs, voltage and temperature sensors

• Frequencies: 4.9-5.875 GHz
• Gain: 23 ± 1 dBi
• VSWR: 1.37 : 1
• 3 dB Beam-Width, H-Plane:10.5°
• 3 dB Beam-Width, E-Plane, typ.: 10.5°
• Polarization: Dual, Vertical and horizontal
• Port to Port Isolation: -50 dB
• Cross Polarization, min.: -25 dB
• Front to Back Ratio, min.: 35 dB

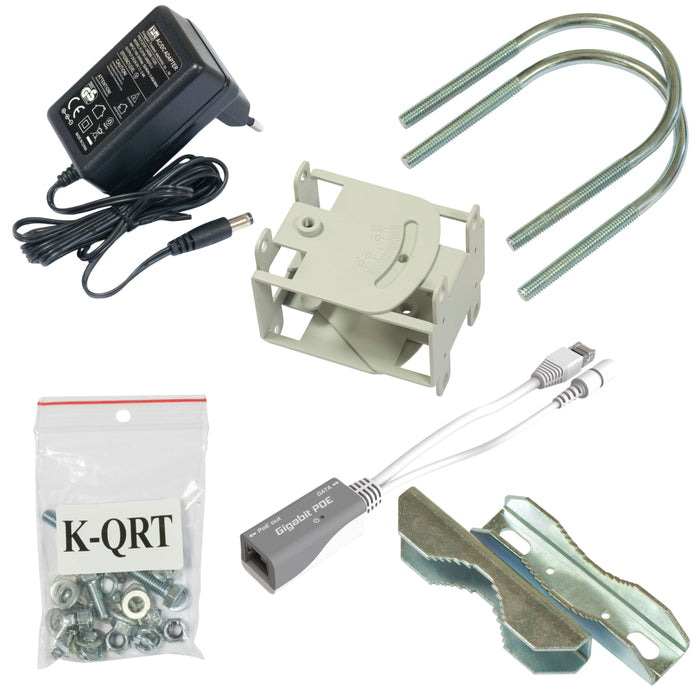

(1) QRT Wireless Device

(1) Precision Mounting Bracket

(2) U Bolts

(1) Pole Clamp

(1) Screw Kit

(1) 24V 1.2A Power Adapter

(1) Gigabit PoE Injector
