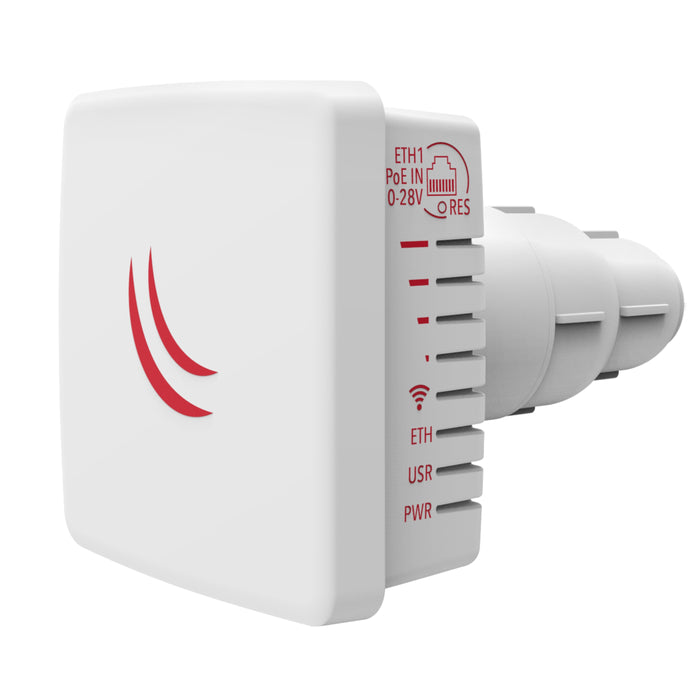

MikroTik LDF 5 5GHz 9dBi Dual Chain Lite Dish

RBLDF-5nD by MikroTik
Sold out
Original price $49.00 - Original price $49.00
Original price
$49.00
$49.00 - $49.00
Current price $49.00

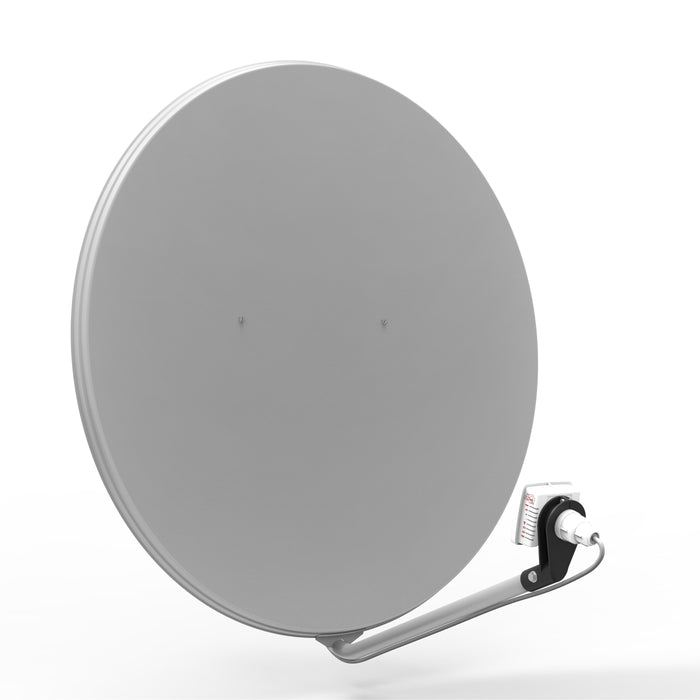

The LDF (Lite dish feed) is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links.


LDF 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

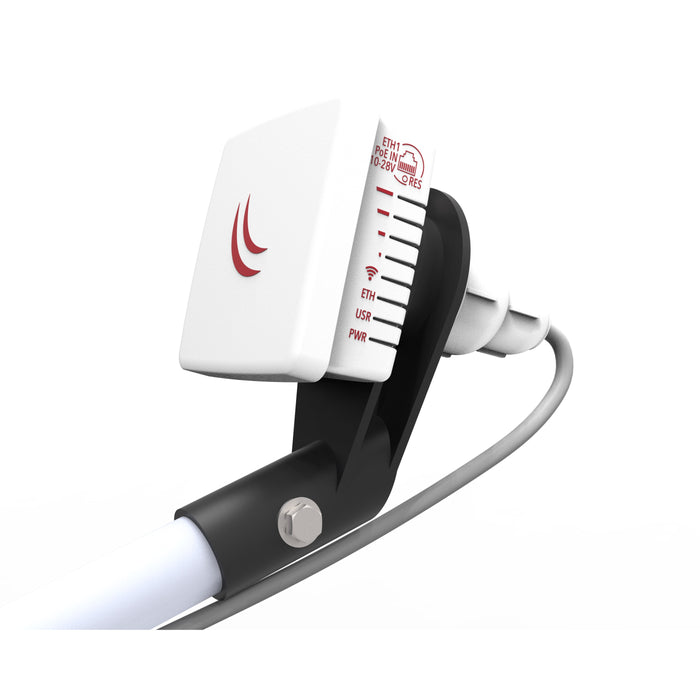

The LDF (Lite dish feed) is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF is a tiny little package, it makes shipping and deployment simple and low cost. Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 30dBi. The device comes preinstalled with RouterOS and is ready to use.


Product Specifications:

  • CPU: AR9344 600 MHz
  • Memory: 64 MB
  • Storage Type: Flash
  • Storage Size: 16 MB
  • Ethernet: One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
  • Wireless: AR9344, wireless built-in 5 GHz 802.11a/n, dual chain
  • Frequency Range: 5150 - 5875 MHz
  • Power Options: Passive PoE input 10-28V
  • Consumption: 6W
  • Internal Antenna Gain: 9 dBi
  • Antenna Beam Width: 17°
  • Dimensions (diameter x height): 265 x 80mm
  • Operating Temperature: -40 to 70°C tested
  • LEDs: 8x LEDs (6x user LEDs)
  • License Level: 3
  • Operating System: RouterOS
Product Includes:


(1) MikroTik LDF 5 Lite Dish Feed

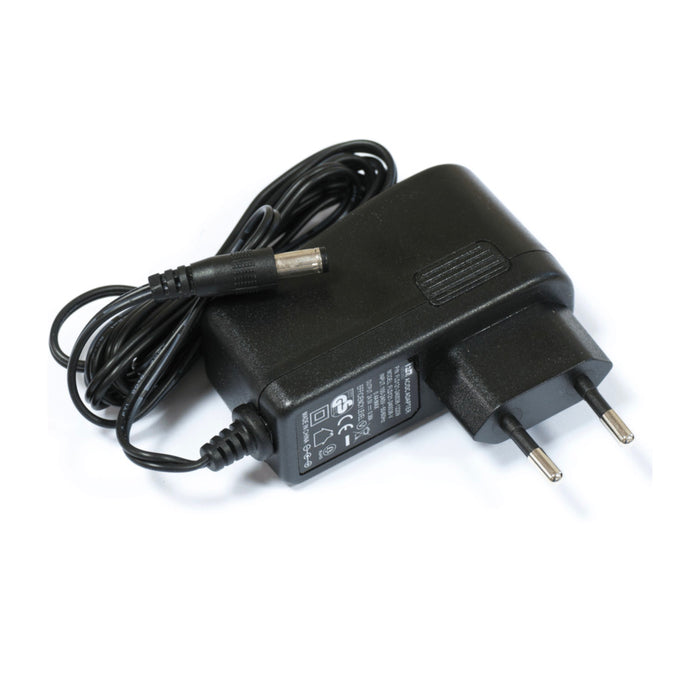

(1) 24V 0.38A Adapter

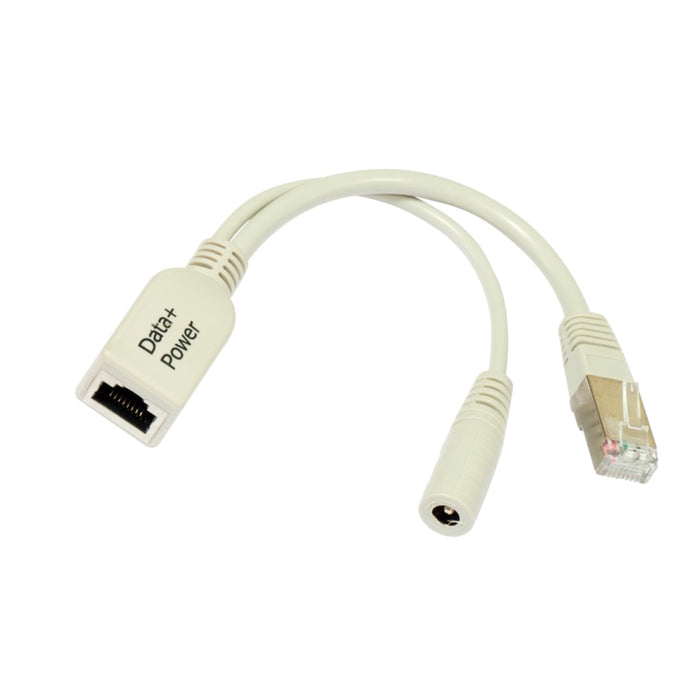

(1) PoE Injector


Product Documentation:
