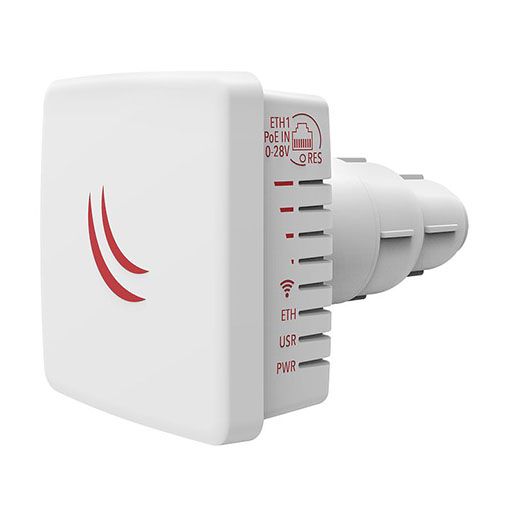

MikroTik LDF 5 5GHz 9dBi 802.11ac and Gigabit Ethernet Dish Feed Antenna US [RBLDFG-5acD-US]

RBLDFG-5acD-US by MikroTik
Save 25% Save 25%
Original price $68.00
Original price $68.00 - Original price $68.00
Original price $68.00
Current price $50.95
$50.95 - $50.95
Current price $50.95

The LDF (Lite dish feed) US is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF is a tiny little package, it makes shipping and deployment simple and low cost. This product is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.Using a dish of up to 100cm (39" inches) in diameter, it is possible to obtain antenna amplification of up to 30dBi. The device comes preinstalled with RouterOS and is ready to use.

LDF 5 Series (US) supports 5170MHz-5250MHz range (Specific frequency range can be limited by country regulations).

Product Specifications:

  • CPU: IPQ-4018 716 MHz
  • Memory: 256 MB
  • Storage Type: Flash
  • Storage Size: 16 MB
  • Ethernet: One 10/100/1000 Mbit/s Gigabit Ethernet port
  • Wireless: IPQ-4018, wireless built-in 5 GHz 802.11a/n, dual chain
  • Frequency Range: 5170 - 5250 MHz
  • Power Options: Passive PoE input 10-30V
  • Consumption: 8W
  • Internal Antenna Gain: 9 dBi
  • Antenna Beam Width: 60°
  • Dimensions 84mm x 84mm x 115mm
  • Operating Temperature: -40 to 70°C tested
  • LEDs: 8x LEDs (5x user LEDs)
  • License Level: 3
  • Operating System: RouterOS

Product Includes:

(1) MikroTik LDF 5 Lite Dish Feed

(1) 24V 0.38A Adapter

(1) PoE Injector
