EC25-EU_26KNe | Baltic Networks

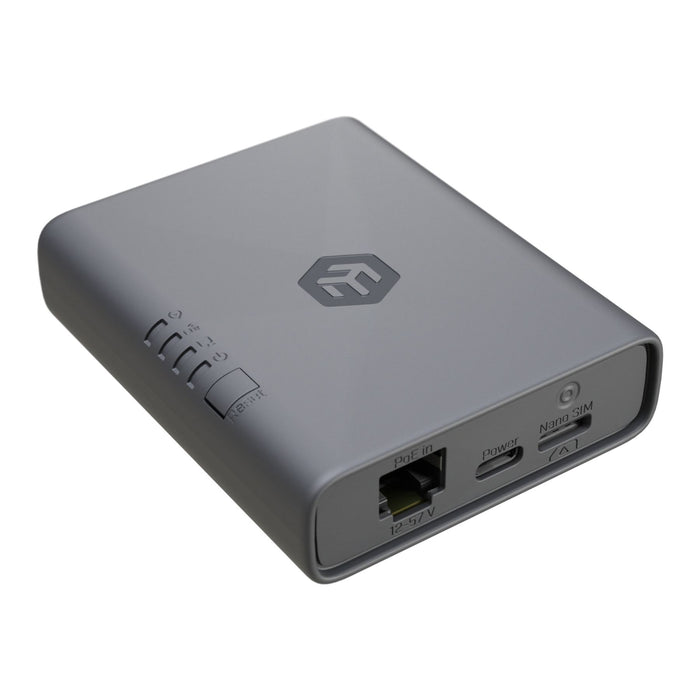

MikroTik KNOT Embedded LTE4 [EC25-EU&KNe]

by MikroTik
SKU EC25-EU&KNe
MikroTik EC25-EU&KNe Datasheet
$79.00 - $79.00
$79.00
$79.00
$79.00 - $79.00
$79.00

The MikroTik KNOT Embedded LTE4[EC25-EU&KNe] is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.

Originally designed for coffee and vending machines, perfect for all kinds of industrial automation.

Use it as a primary gateway, a backup link, or an IoT data collection node, everything is powered by RouterOS for maximum flexibility.

  • LTE Cat4 mobile connectivity
  • Bluetooth for IoT sensors

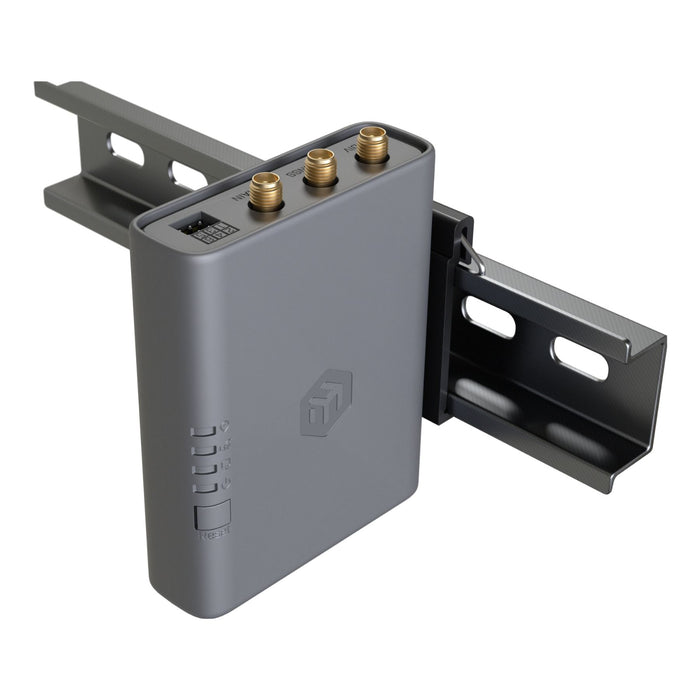

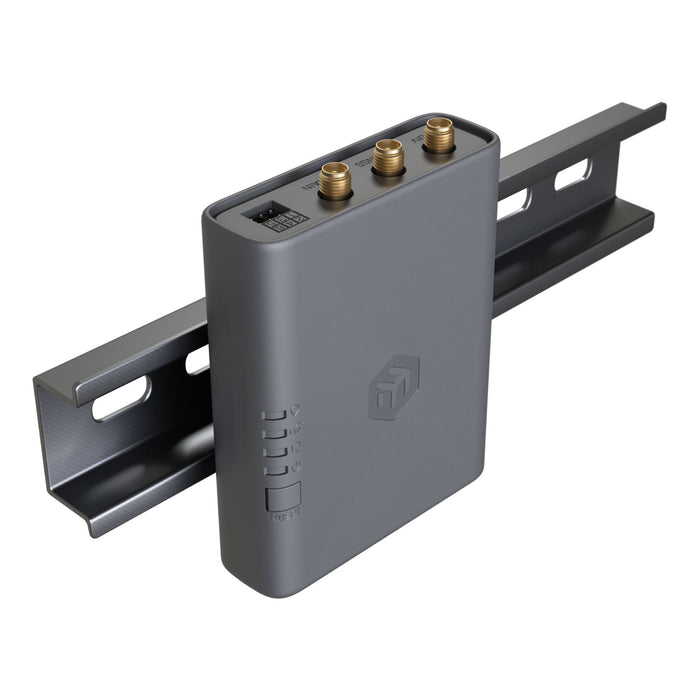

  • DIN rail mounting supported
  • Gigabit Ethernet
  • GNSS/GPS
  • eSIM + Nano SIM
  • GPIO
  • 2x2 MIMO

KNOT Embedded LTE4 is made for environments where space is limited but reliability is critical.

Technical Specifications
  • Product code: EC25-EU&KNe
  • CPU: ARM 32-bit Cortex A7 up to 1.2 GHz
  • Size of RAM: 256 MB
  • RAM type: DDR
  • Storage: 512 MB
  • Number of 1G Ethernet ports: 1
  • GNSS interface model: EC25-EU
  • GNSS standard: BeiDou, Galileo, GPS, Glonass
  • RF connector type: SMA female
  • SIM slots: Nano SIM, eSIM
  • Bluetooth version: 5.4
  • MIMO DL: 2x2
  • MIMO UL: 1x1
  • Dimensions: 90 x 70 x 22 mm
  • Operating system: RouterOS v7, License level 3
  • Operating temperature: -40°C to +70°C

EC25-EU (EMEA) bands

  • LTE modem: EC25-EU
  • TAC: 86554604
  • LTE Category: 4 (150 Mbps Downlink, 50 Mbps Uplink)
  • LTE FDD bands: 1 (2100 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28A (700 MHz)
  • LTE TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
  • 3G Category: R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)
  • 3G bands: 1 (2100 MHz), 8 (900 MHz)
  • 2G Category: Class12
  • 2G bands: 3 (1800 MHz), 8 (900 MHz)

Powering

  • Number of DC inputs: 2 (PoE-In, USB Type-C (powering only))
  • PoE-In input Voltage: 12-57 V
  • USB Type-C input voltage: 5 V
  • Power adapter nominal voltage: 5 V
  • Power adapter nominal current: 0.8 A
  • PoE-in: 802.3af/at
  • Max power consumption: 7 W
