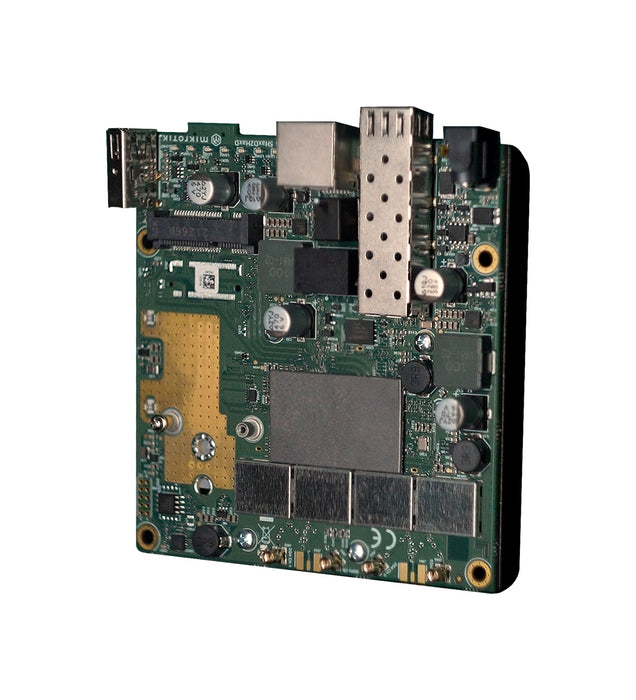

MikroTik L23UGSR Dual-Band Wi-Fi 6 RouterBOARD (INTL) [L23UGSR-5HaxD2HaxD]

MikroTik L23UGSR Dual-Band Wi-Fi 6 RouterBOARD (INTL) [L23UGSR-5HaxD2HaxD]

by MikroTik
SKU L23UGSR-5HaxD2HaxD
$99.00 - $99.00
$99.00
$99.00
$99.00 - $99.00
$99.00
+$9.11 Tariff Surcharge added at checkout. i Due to current Section 301 import tariffs and related surcharges, a fee applies to this product. This fee will be added at checkout.

Version: International

Product Information

Overview

The MikroTik L23UGSR-5HaxD2HaxD is a modular dual-band Wi-Fi 6 RouterBOARD designed for custom access points, customer premises equipment, and embedded networking projects. Dual-chain 2.4 GHz and 5 GHz radios connect to external antennas through four MMCX connectors, allowing integrators to choose an antenna configuration suited to their installation.

A dual-core Qualcomm ARM processor, 256 MB of RAM, and RouterOS v7 provide a flexible platform for routing and wireless management. One Gigabit Ethernet port with passive PoE-in and one SFP port supporting 2.5 Gigabit connectivity provide copper and fiber connection options.

A miniPCIe slot and NanoSIM slot support expansion with a compatible LTE modem or LoRa card. The USB port provides another connection option, although USB and miniPCIe cannot operate simultaneously because they share a USB connection. This bare board requires external antennas, a suitable enclosure, and a compatible power source. Outdoor installations require an appropriately weatherproof enclosure.

Ideal Applications

  • Custom Wi-Fi 6 access points with external antennas
  • Outdoor CPE installations using suitable antennas and weatherproof enclosures
  • Directional point-to-point wireless links
  • Embedded networking for vending machines, kiosks, and ticket stations
  • LTE backup connectivity with a compatible optional modem
  • LoRa gateway projects with a compatible optional expansion card

Highlights

Key Features

Dual-Band Wi-Fi 6

Dual-chain 2.4 GHz and 5 GHz radios provide Wi-Fi 6 connectivity for custom access points and wireless links. Four MMCX connectors support external antenna configurations tailored to the deployment.

Gigabit Ethernet and 2.5G Fiber Connectivity

One Gigabit Ethernet port and one SFP port supporting 2.5 Gigabit connectivity provide flexible wired connections for copper and fiber networks. Passive PoE-in allows power delivery through the Ethernet connection.

LTE and LoRa Expansion

A miniPCIe slot supports compatible LTE or LoRa cards, with a NanoSIM slot available for cellular installations. The miniPCIe slot and USB port share a USB connection and cannot operate simultaneously.

RouterOS for Custom Networking

A dual-core ARM processor, 256 MB of RAM, and RouterOS v7 with a Level 4 license provide routing and wireless management capabilities for integrated products, custom access points, and networking projects.

Product Details

Technical Specifications

System Specifications

  • CPU: Qualcomm IPQ-5010, dual-core, 800 MHz
  • CPU Architecture: ARM 32-bit
  • Memory: 256 MB DDR3L RAM
  • Storage: 128 MB NAND
  • Operating System: RouterOS v7
  • RouterOS License: Level 4

Regional Version

  • Product Code: L23UGSR-5HaxD2HaxD
  • Version: International
  • Wireless Configuration: Configure the country setting to match the installation location. Available channels and transmit power depend on applicable regional requirements.

Wireless

  • Wireless Standard: Wi-Fi 6 (802.11ax)
  • Frequency Bands: 2.4 GHz and 5 GHz
  • Wireless Chains: 2 per band
  • 2.4 GHz Standards: 802.11b/g/n/ax
  • 2.4 GHz Maximum PHY Rate: 574 Mbps
  • 2.4 GHz Wireless Chip: IPQ-5010
  • 5 GHz Standards: 802.11a/n/ac/ax
  • 5 GHz Maximum PHY Rate: 2,400 Mbps
  • 5 GHz Wireless Chip: QCN-6102
  • Antenna Connectors: 4 × MMCX
  • External Antennas: Required; selected separately for the installation
  • Wireless Performance: Actual throughput and range depend on antenna selection, configuration, interference, and site conditions.

Ethernet and Fiber Interfaces

  • Ethernet Ports: 1 × 10/100/1000 Mbps RJ45
  • SFP Ports: 1 × SFP port with 2.5 Gigabit support

Expansion and Peripherals

  • miniPCIe Slot: 1 × slot for compatible LTE or LoRa cards
  • SIM Slot: 1 × NanoSIM
  • USB Port: 1 × USB 2.0 Type-A
  • Maximum USB Current: 1.5 A
  • USB Power Reset: Supported
  • USB and miniPCIe Limitation: Share a USB connection and cannot operate simultaneously
  • Monitoring: PCB temperature and voltage
  • Beeper: Included onboard

Power

  • DC Inputs: 2 — DC jack and PoE-in
  • DC Jack Input: 12–28 V DC
  • PoE-in: Passive PoE
  • PoE Input Voltage: 18–28 V DC
  • Maximum Power Consumption: 25 W
  • Maximum Power Consumption Without Attachments: 12 W

Physical and Environmental

  • Form Factor: Bare RouterBOARD without enclosure
  • Overall Dimensions: Approximately 4.48 × 4.23 × 1.05 inches
  • Cooling: Passive
  • IP Rating: IP00
  • Tested Ambient Temperature: -40°C to +70°C
  • Outdoor Installation: Requires a suitable weatherproof enclosure

In the Box

What’s Included

  • 1 × MikroTik L23UGSR dual-band Wi-Fi 6 RouterBOARD in the selected regional version

Resources

Product Documentation

Datasheet
