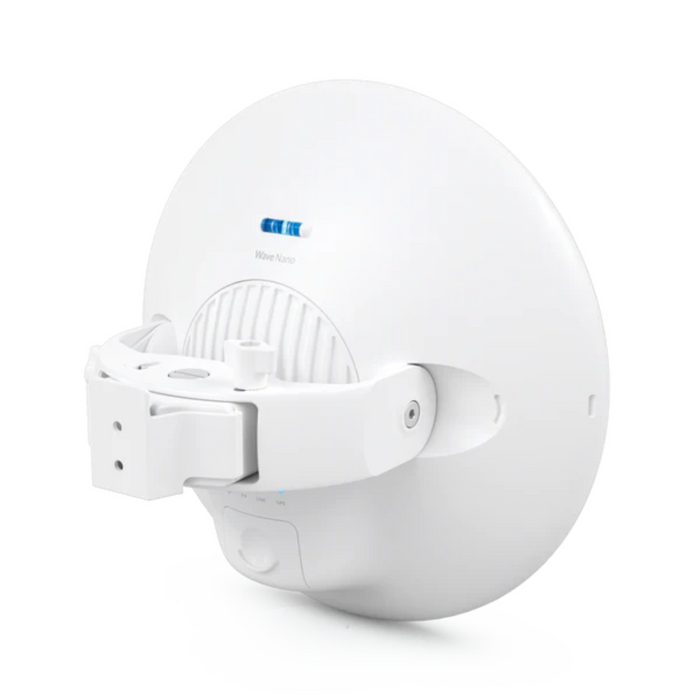

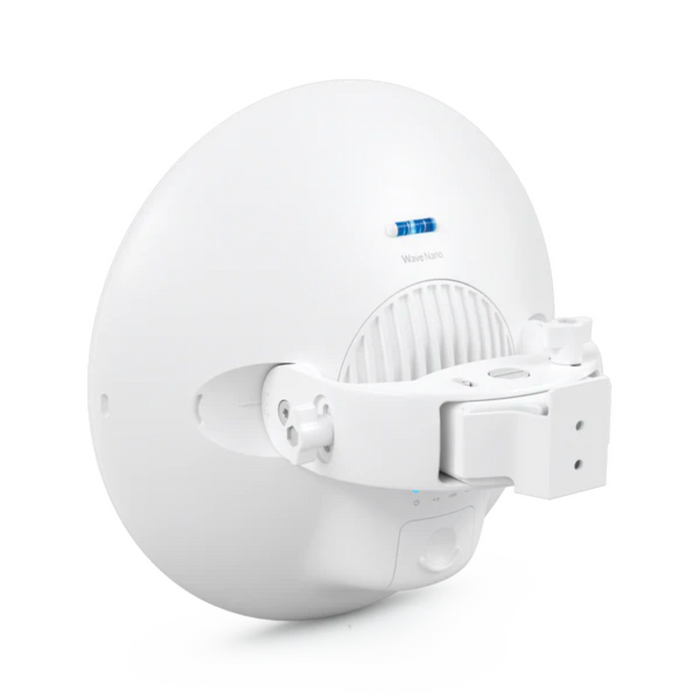

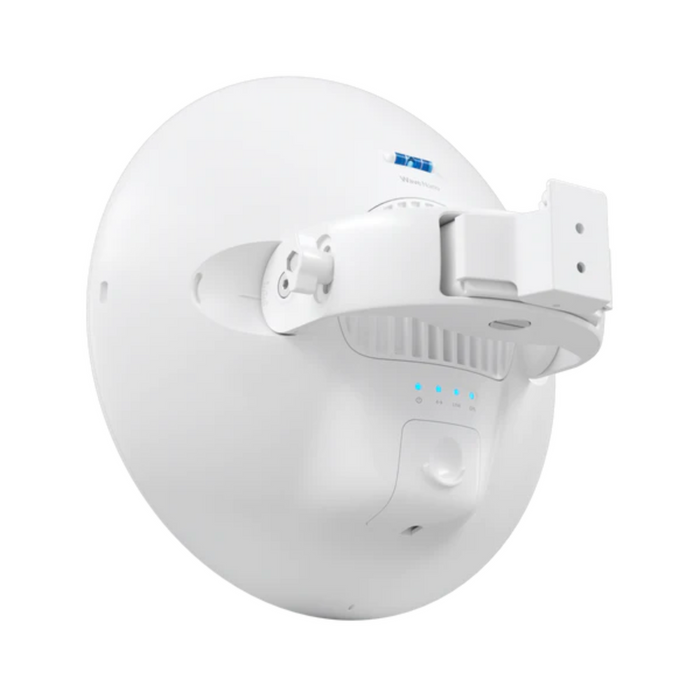

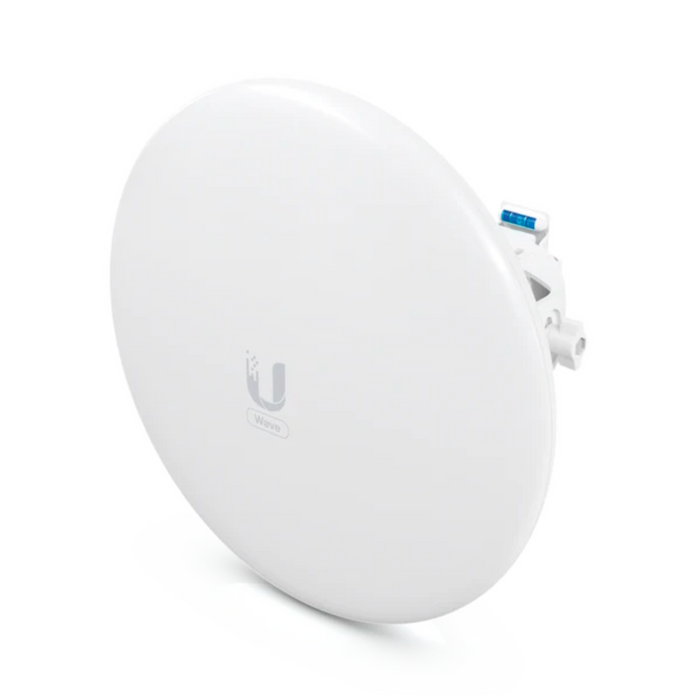

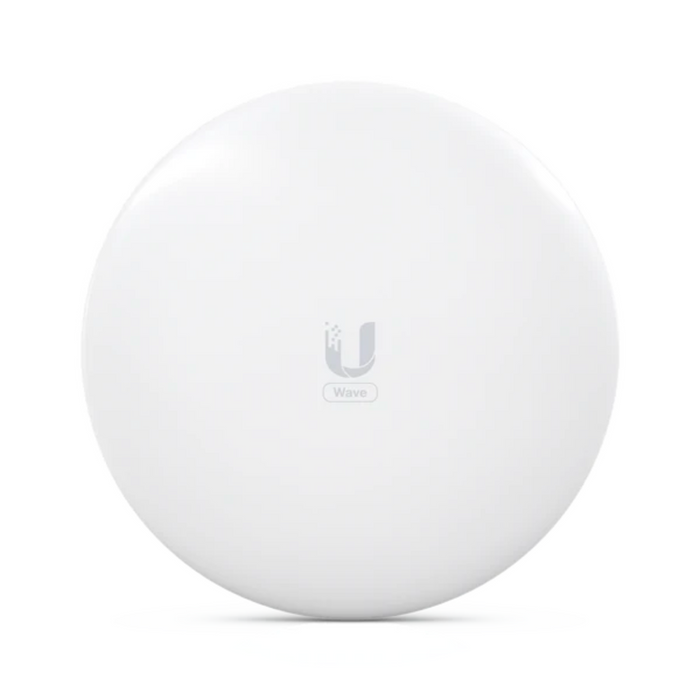

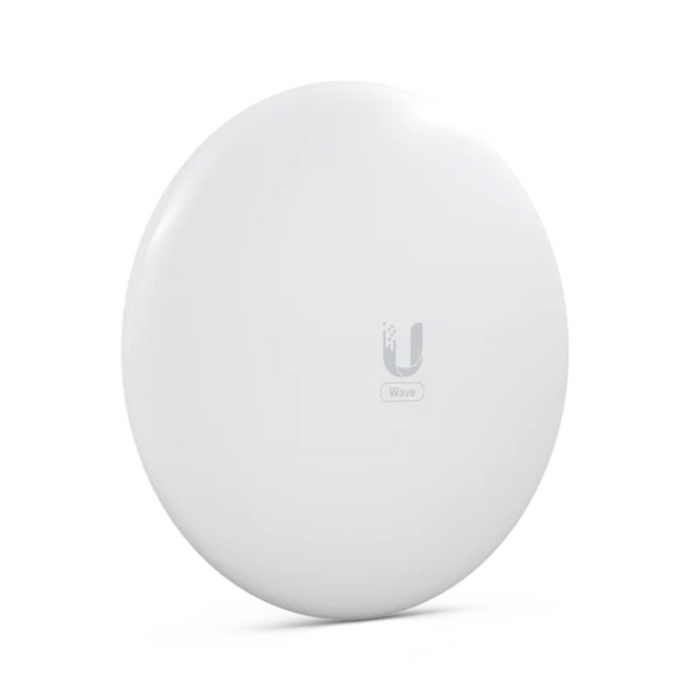

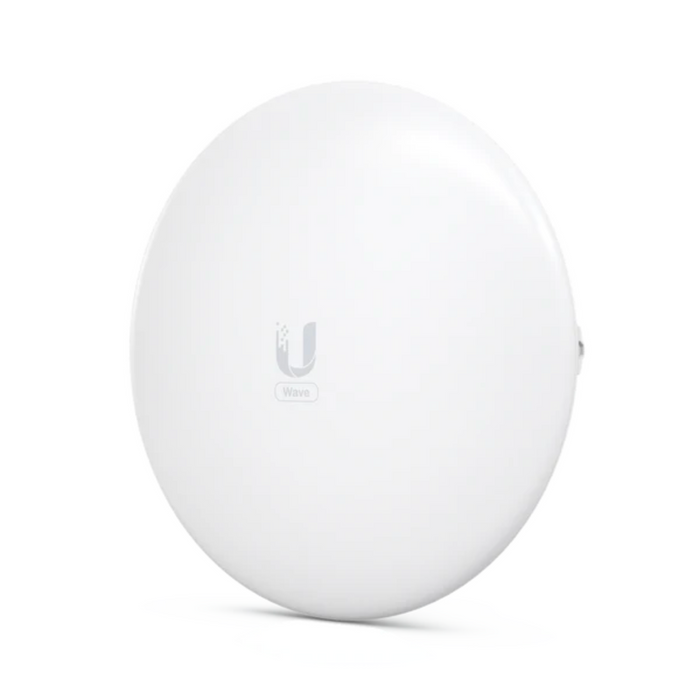

Ubiquiti Wave Nano US Version [Wave-Nano-US]

• 5 GHz backup radio

• Link range: up to 5 km
• Router mode support
• Integrated GPS antenna
• Link planning support via ISP Design Center

Managed with UISP application: Version 1.4.5 and later

Product Specifications:

Mechanical

• Dimensions: Ø256.5 x 113.5 mm (Ø10.1 x 4.5")
• Weight:
  • Without mount: 932 g (2.1 lb)
  • With mount: 1.2 kg (2.6 lb)
• Enclosure materials: Aluminum alloy, UV stabilized plastic

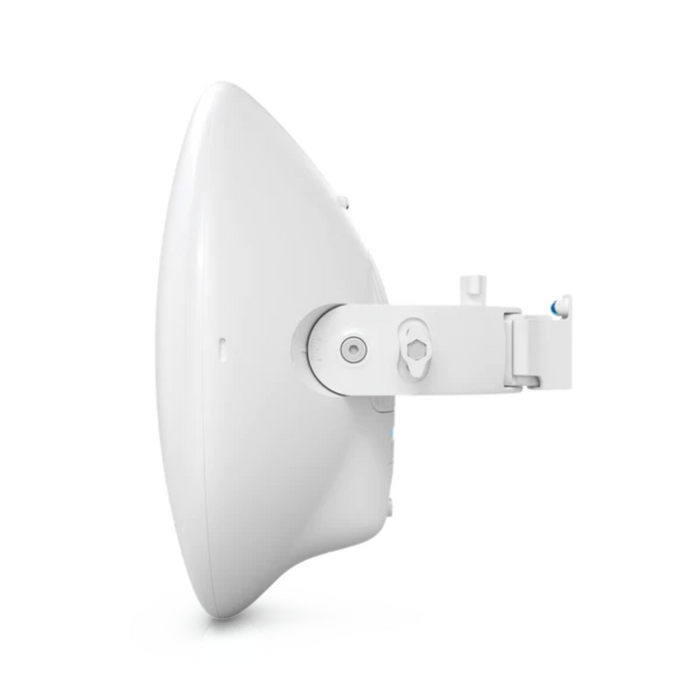

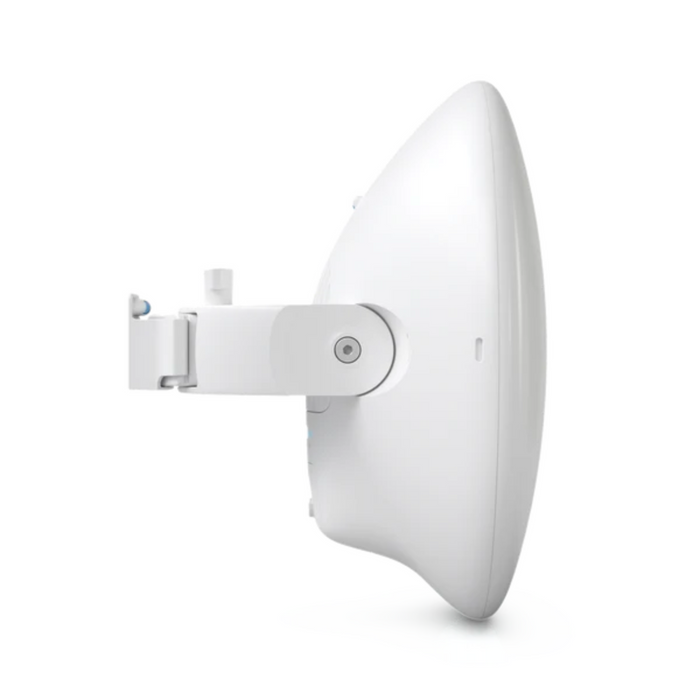

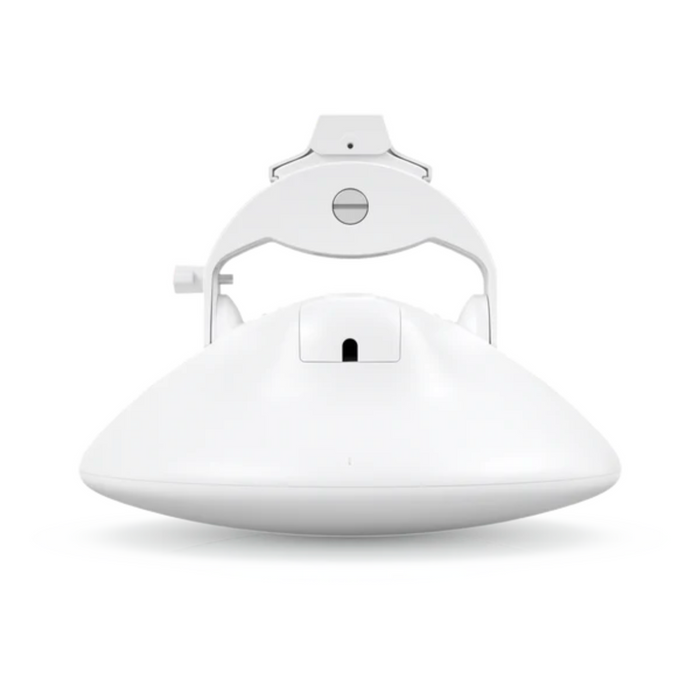

• Mount materials: Aluminum alloy, UV stabilized plastic
• Pole mount diameter: 25 to 63.5 mm (1 to 2.5") on pipe outer diameter
• Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)
• Weatherproofing: IPX6

Hardware

• Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
• Memory: DDR3L 512 MB

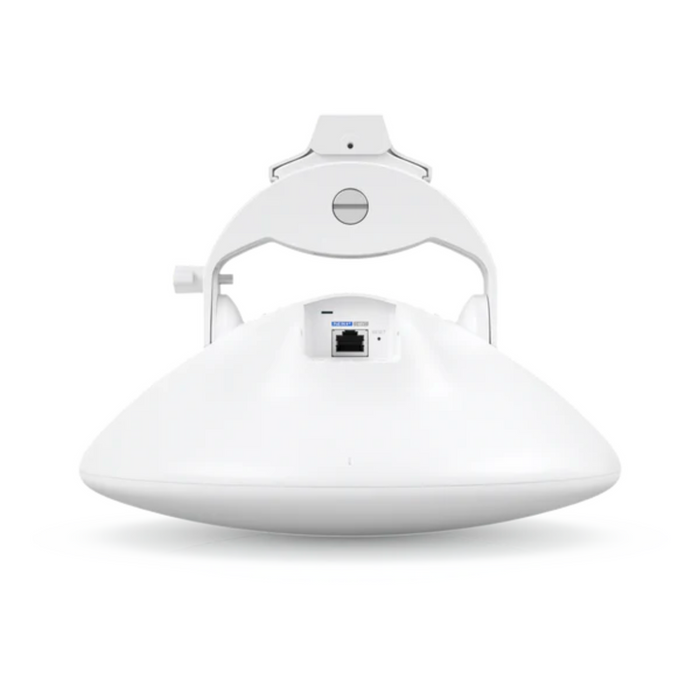

• Networking interface: (1) GbE RJ45 port
• Max. power consumption: 18W
• Power method
  • 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
  • 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Power supply:
  • 48V DC, 0.65A gigabit PoE adapter (included)
  • Can be powered by a UISP Router or UISP Switch
• GPS: Yes
• Button: Factory reset

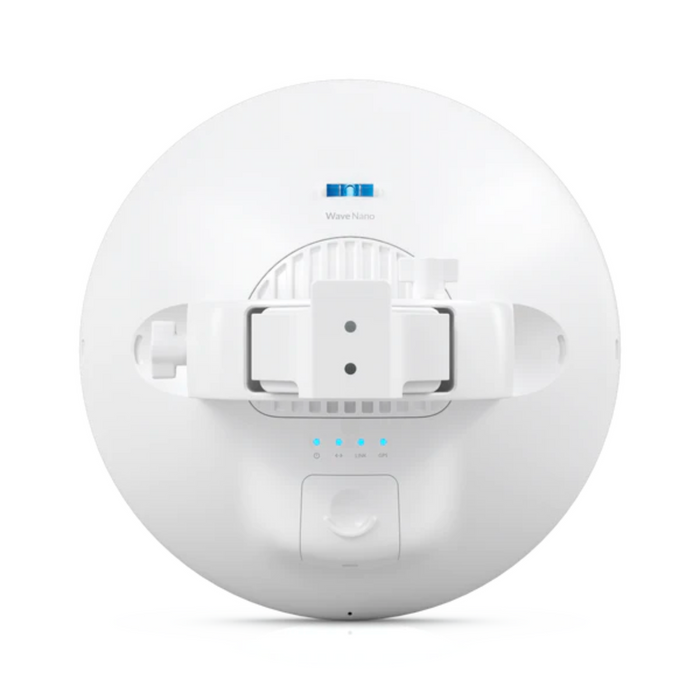

• LEDs: Power, Ethernet, GPS, link
• Operating temperature: -40 to 60° C (-40 to 140° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: FCC, IC, CE

Software

• OS: airOS®
• Operating mode: PtMP station
• Ubiquiti specific features: Wave AI, discovery protocol
• Services: UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test
• Network: Bridge/Router mode
• Software management: Bluetooth management for easy setup over UISP app WEB UI
• Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone

System

• Total throughput: 2 Gbps (1 Gbps duplex)
• Maximum range: 5+ km
• Encryption: WPA2-PSK (AES)
