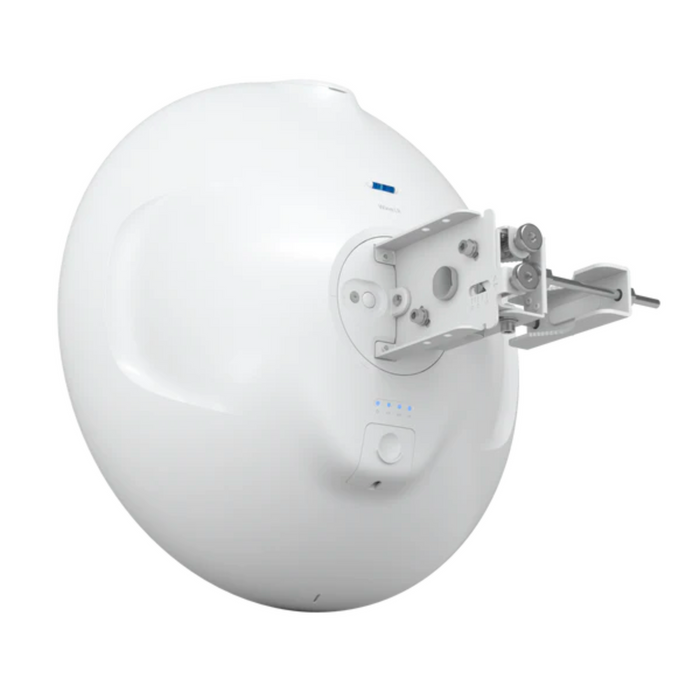

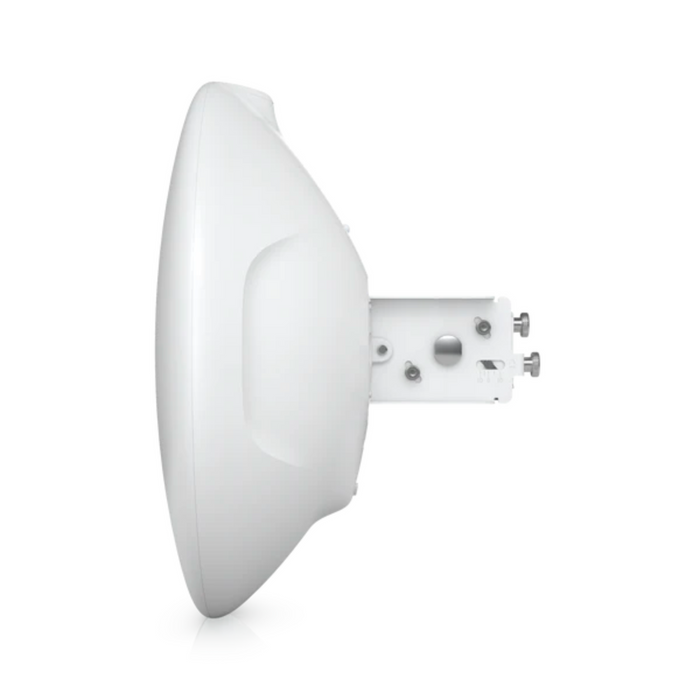

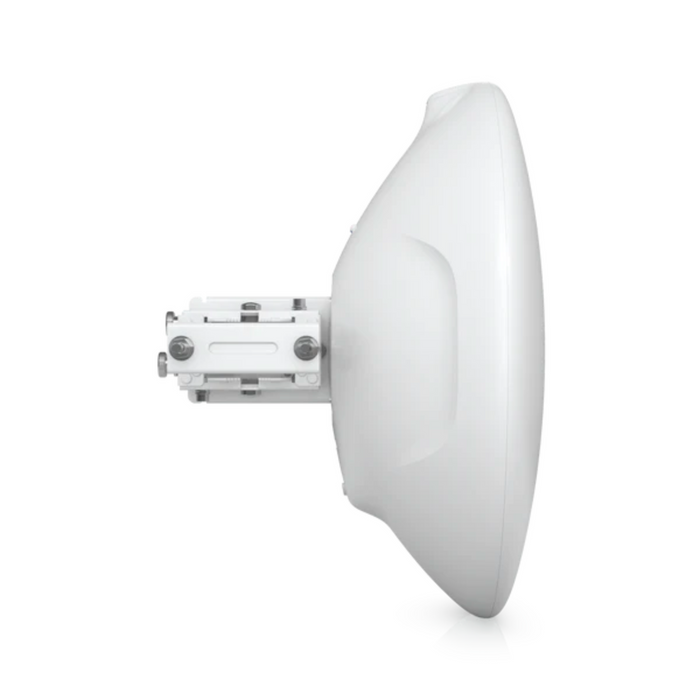

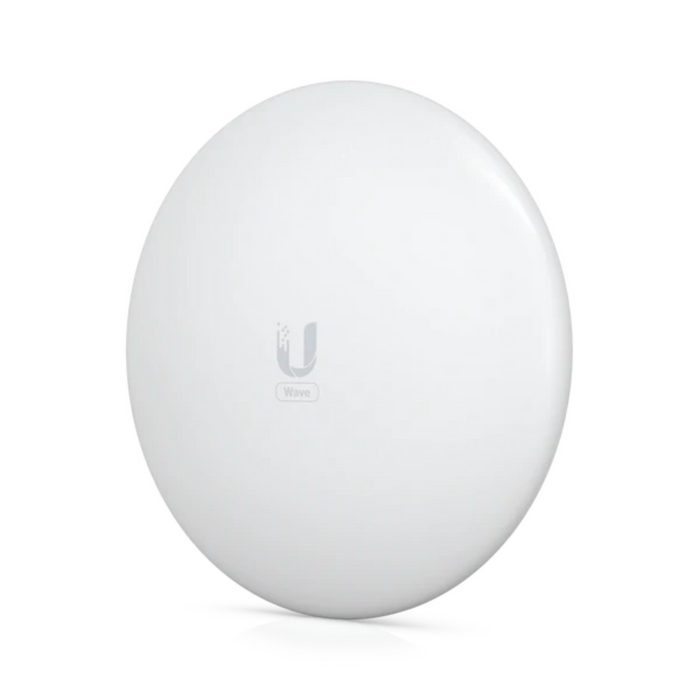

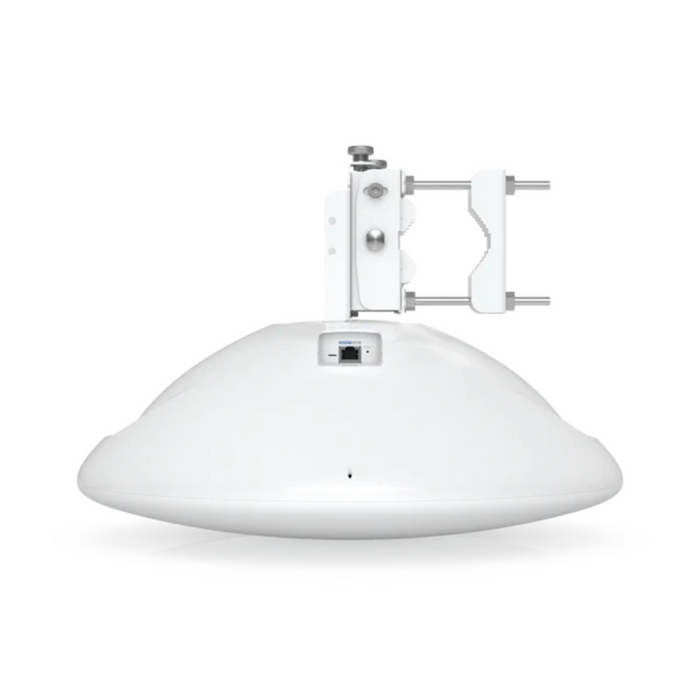

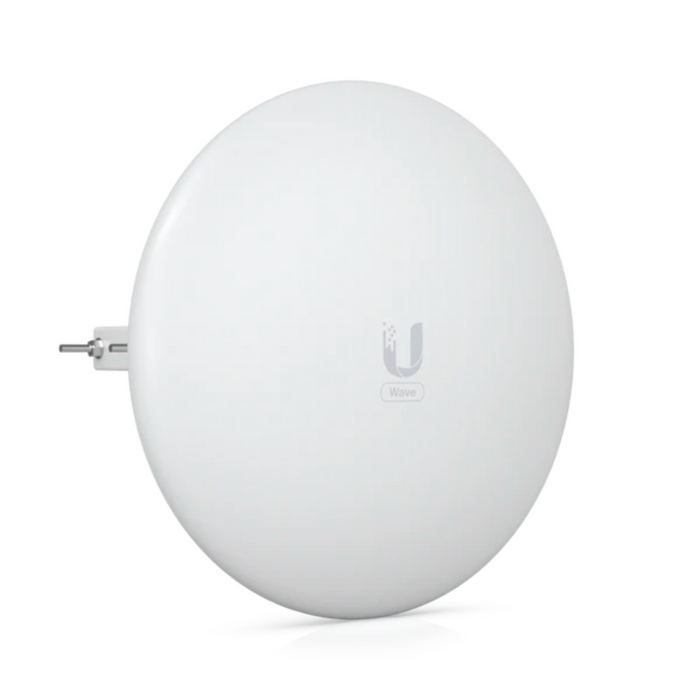

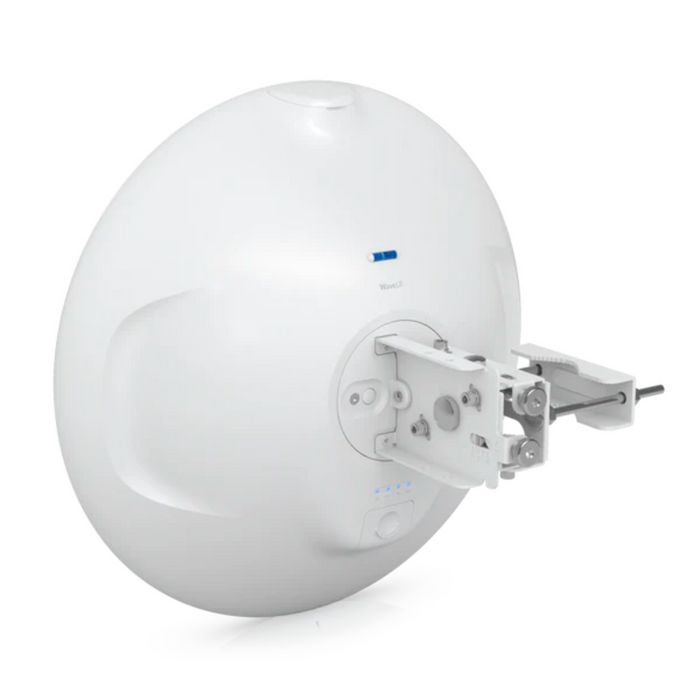

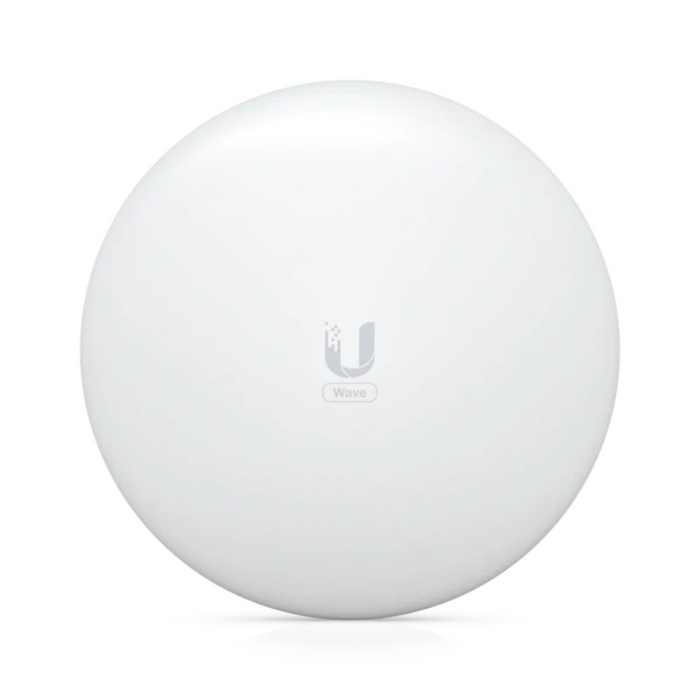

Ubiquiti Wave Long-Range US Version [Wave-LR-US]

• 5 GHz backup radio
• Link range: up to 8 km
• Router mode support
• Integrated GPS antenna
• Link planning support via ISP Design Center

• Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5")

• Weight:
  • Without mount: 2.59 kg (5.7 lb)
  • With mount: 3.79 kg (8.4 lb)
• Enclosure material: UV stabilized plastic

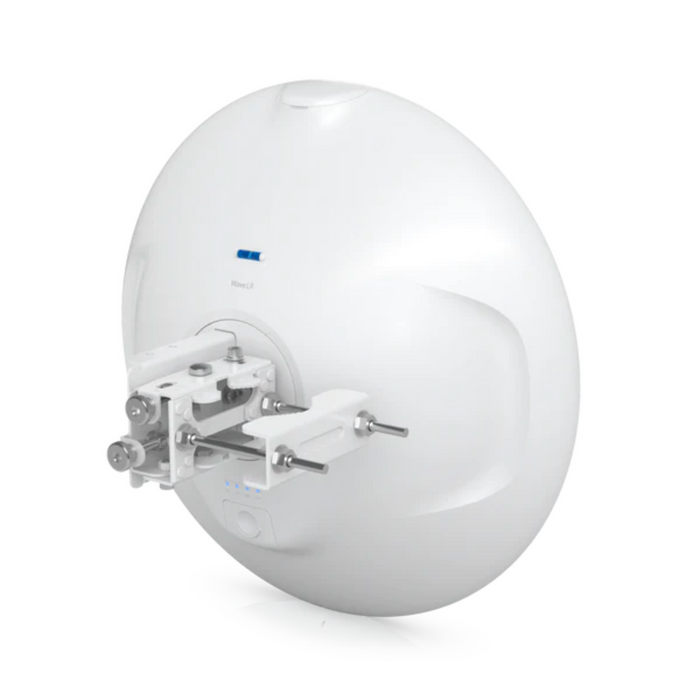

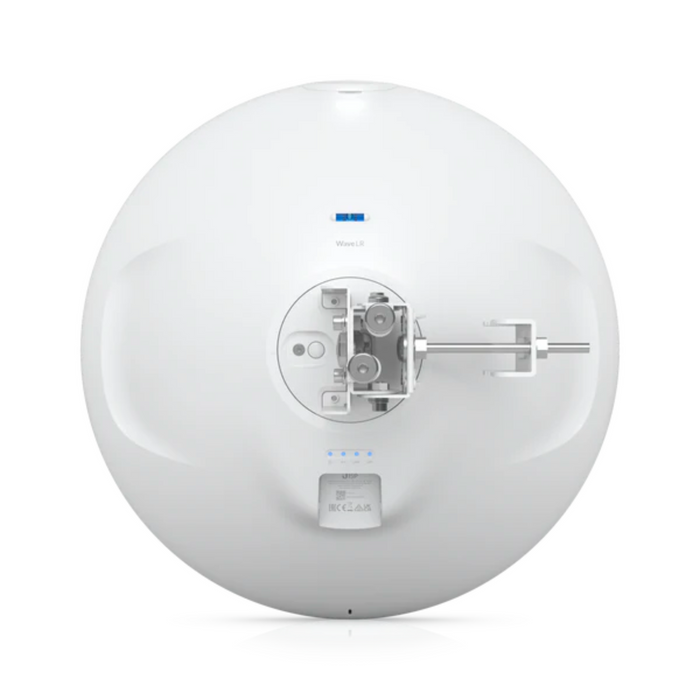

• Mount material: Galvanized steel
• Pole mount diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter
• Wind loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
• Weatherproofing: IPX6

Hardware

• Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
• Memory: DDR3L 512 MB
• Networking interface: (1) GbE RJ45 port
• Max. power consumption: 18W
• Power method
  • 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
  • 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Power supply:
• 48V DC, 0.65A gigabit PoE adapter (included)
• Can be powered by a UISP Router or UISP Switch
• GPS: Yes
• Button: Factory reset
• LEDs: Power, Ethernet, GPS, link
• Operating temperature: -40 to 60° C (-40 to 140° F)
• Operating humidity: 5 to 95% noncondensing
• CertificationsP: FCC, IC, CE

Software

• OS: airOS®
• Operating mode: PtMP station
• Ubiquiti specific features: Wave AI, discovery protocol
• Services UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test
• Network: Bridge/Router mode
• Software management: Bluetooth management for easy setup over UISP app WEB UI
• Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone

System

• Total throughput: 2 Gbps (1 Gbps duplex)
• Maximum range: 8+ km
