Ubiquiti UniFi XG Access Point 802.11ac 2.4GHz/5GHz Wave2 4x4 MU-MIMO

UAP-XG by Ubiquiti Networks
Sold out
Original price $809.00 - Original price $809.00
Original price
$809.00
$809.00 - $809.00
Current price $809.00

Ubiquiti UniFi XG Access Point 802.11ac Wave 2 MU‑MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 Access Point, such as the UniFi XG Access Point, to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience. Wave 1 and Wave 2 Access Points offer 28 independent (non‑overlapping) channels: three for the 2.4GHz band and twenty-five for 5GHz, including DFS channels. With the advantages of MU-MIMO technology and 4x4 spatial streams, the UniFi XG Access Point can support more than triple the number of users2 per radio than a typical Wave 1 Access Point. Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.


Product Features:
  • 10 Gigabit Ethernet Support
  • 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
  • Dual 5GHz 802.11ac Wave 2 Radios
  • 3.466Gbps Combined Radio Rate in 5GHz
  • 800Mbps Radio Rate in 2.4GHz
  • Dedicated Security Radio with Persistent Threat Management
  • 1,500 Client Association Limit
  • 802.3bt Power Injector Included
  • Frequency Range: 2402Mhz - 2480Mhz
  • Input: 100-240V-50/60Hz, Max .075A; Output: 48V, 0.5A
Product Specifications:

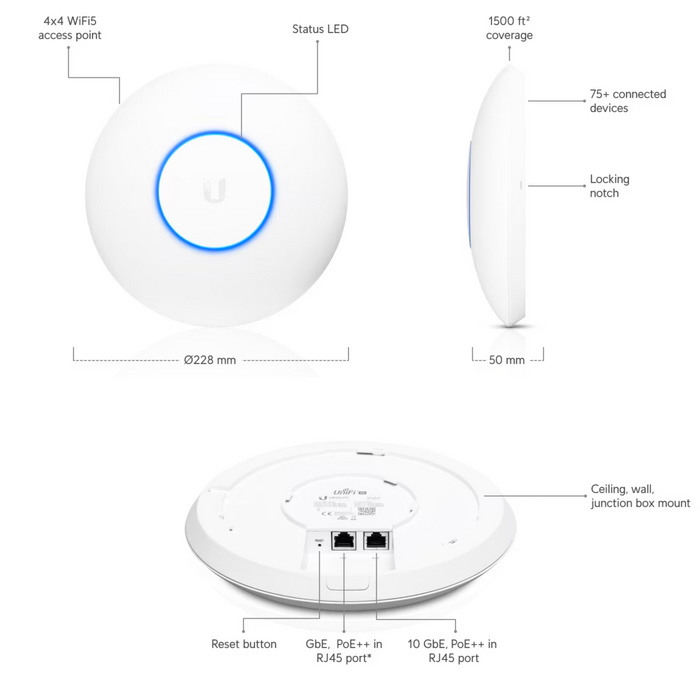

  • Dimensions: 8.98 x 8.98"x1.97" (228mmx228mmx50 mm)
  • Weights: 1.20kg (2.65lb)
  • Weight w/Mounting Kit: 1.35kg (2.98 lb)
  • Networking Interface: (1) 10/100/1000 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port
  • Buttons: Reset
  • Power Method: 802.3bt PoE
  • Supported Voltage Range: 44 to 57VDC
  • Power Supply: PoE Injector 50VDC, 1.2A Gigabit
  • Power Save: Supported
  • Maximum Power Consumption: 31W
  • Radios: 2.4GHz, (2) 5GHz, Security
  • Maximum TX Power 2.4GHz: 25dBm
  • Maximum TX Power 5GHz: 25dBm
  • Antennas 2.4GHz: (2) Dual-Port, Dual-Polarity Antennas, 6dBi each
  • Antennas: 5GHz: (2) Dual-Port, Dual-Polarity Antennas, 8dBi each
  • Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF
  • BSSID: Up to 8 per Radio
  • Mounting: Wall/Ceiling/Junction Box (Kits Included)
  • Operating Temperature: -10°C to 60°C (14°F to 140°F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 1500
  • 802.11ac: 6.5Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
  • 802.11n: 6.5Mbps to 450Mbps (MCS0 - MCS23, HT 20/40)
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11b: 1, 2, 5.5, 11Mbps
Product Includes:


(1) XG Access Point

(1) 802.3bt Power Injector

(1) Mounting Kit

(1) User Guide
