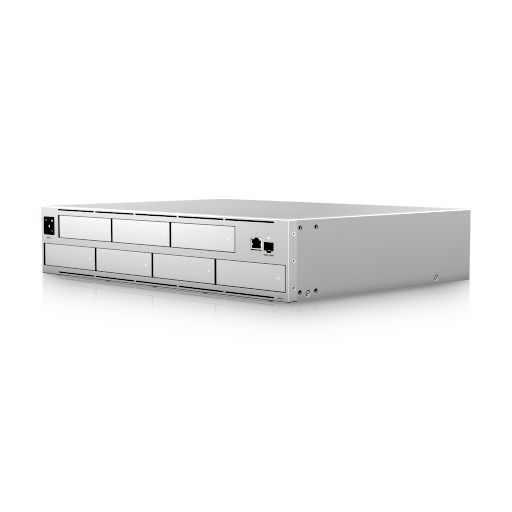

Ubiquiti UniFi Protect Network Video Recorder Pro [UNVR-Pro]

UNVR-Pro by Ubiquiti Networks
Sold out
Original price $499.00 - Original price $499.00
Original price $499.00
$499.00
$499.00 - $499.00
Current price $499.00

 A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (20) 4K cameras or (60) Full HD cameras.

Stack multiple UNVR Pros* to increase your storage capacity and accommodate large security camera systems.

Features:

  • (1) 10G SFP+ port
  • (1) GbE RJ45 port
  • 1.3" touchscreen for video previewing
  • Automatic HDD RAID configuration for data redundancy
  • Connects to a Power Backup for enhanced power redundancy

Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)

The Ubiquiti Networks UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras.

Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.

The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.

Product Features:

  • (7) 2.5"/3.5" HDD bays
  • (1) 10G SFP+ port
  • (1) GbE RJ45 port
  • 2U-sized, rack-mountable console (kit Included)
  • 3" touchscreen with video event previewing
  • Pre-installed UniFi Protect application
  • Simple, Bluetooth-powered setup via the UniFi Protect mobile app
  • Automated RAID 1, 5, or 10 HDD configuration
  • Can be connected to the USP-RPS (sold separately) for enhanced power supply failover protection
Product Specifications:
  • Enclosure material: SGCC Steel
  • Mount materials: SGCC Materials
  • Processor: Quad-Core ARM Cortex-A57 at 1.7GHz
  • System memory: 4GB
  • On-board flash storage: 32GB
  • Max. power consumption: 160W
  • Max. power budget for drives: 135W
  • Power method:
  • (1) Universal AC input, 100-240VAC, 3A max, 50/60Hz
  • (1) USP-RPS DC input, 11.5VDC, 13.91A
  • Power supply: AC/DC, internal, 200W
  • Networking interfaces:
  • (1) 10/100/1000 Mbps RJ45 Ethernet
  • (1) 1/10 Gbps SFP+ Ethernet
  • RF interface: (1) Bluetooth v4.1
  • LCM display:
  • (1) 1.3" Touchscreen
  • Bootup Animation: Bootup in Progress
  • Firmware Upgrade Icon: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
  • Management interface: Ethernet in-band management
  • ESD/ EMP protection: Air: ±12kV, Contact: ±8kV
  • Operating temperature: -5 to 40°C (23 to 104°F)
  • Operating humidity: 5-95% non-condensing
  • Certifications: FCC, CE, IC
  • LEDs:
  • Ethernet: Green: 1000Mbps, Amber: 10/100 Mbps
  • SFP+: White: 10Gbps, Green: 1Gbps
  • HDD: Amber: Disk Error, White: Disk Detected
  • RPS: Blue: Ready

Product Includes:

  • (1) UNVR-PRO Network Video Recorder
  • (1) US power cord
  • (1) Set of rackmount ears
  • (1) Set of rubber feet
  • (1) Set of mounting screws
