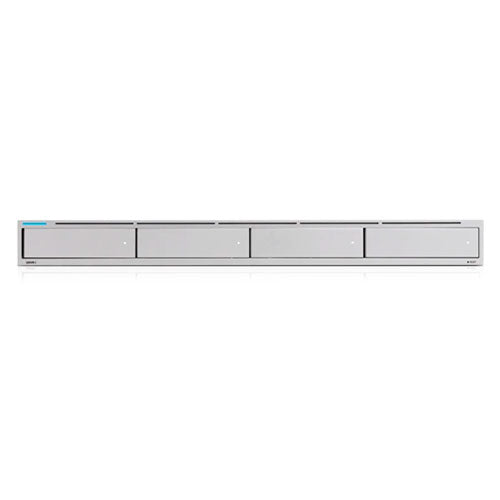

Ubiquiti UniFi Protect NVR 4-Drive 8TB Network Video Recorder

Sold out
Original price $345.00 - Original price $345.00
Original price
$345.00
$345.00 - $345.00
Current price $345.00

The Ubiquiti UniFi NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. The UNVR unifies enterprise-class data protection and scalable storage with simple Plug-and-Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.


Product Features:

  • (4) 2.5"/ 3.5" Drive Bays
  • (1) 10G SFP+ Port
  • (1) Gigabit RJ45 Port
  • 1U Rackmountable (Kit Included)
  • Plug-and-Play UniFi Portect system with NVR
  • Automated secure RAID 1 or RAID 5 configuration
  • Supports USP-RPS for PSU failover
Product Specifications:

      • Enclosure Characteristics: SGCC Steel
      • Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
      • System Memory: 4 GB DDR4
      • On-Board Flash Storage: SPI NOR 32 MB, USB Flash 8 GB
      • Max. Power Consumption: 100W
      • Max. Power Budget for Drives: 75W
      • Power Method:
      • (1) Universal AC Input
      • (1) RPS DC Input
      • Power Supply: 100-240VAC, 50/ 60 Hz, 2A
      • Networking Interfaces:
      • (1) 10/100/1000 Mbps RJ45 Ethernet
      • (1) 1/10 Gbps SFP+ Ethernet
      • Management Interface: Ethernet In-Band Management
      • ESD/ EMP Protection: Air: ±12kV, Contact: ±8kV
      • Operating Temperature: -5 to 40°C (23 to 104°F)
      • Operating Humidity: 5-95% Non-condensing

      LEDs

      • System:
      • (1) Power, Blue/ White
      • Flashing White: Bootup in Progress
      • Flashing Blue: Firmware Upgrading
      • Steady White: Factory Defaults, Awaiting Adoption
      • Ethernet:
      • Steady Blue: Device is Adopted
      • SFP+ White:
      • Green: 1000 Mbps
      • Amber: 10/100 Mbps
      • SFP+:
      • White: 10 Gbps
      • Green: 1 Gbps
      • HDD:
      • Amber: Disk Error
      • White: Disk Detected
        Product Includes:


        (1) UniFi Protect Network Video Recorder

        (1) Rackmountable Kit
