Ubiquiti UniFi AC Mesh Pro Outdoor Access Point US [UAP-AC-M-PRO-US]

UAP-AC-M-PRO-US by Ubiquiti Networks
Sold out
Original price $199.00
Original price $199.00 - Original price $199.00
Original price $199.00
Current price $174.95
$174.95 - $174.95
Current price $174.95

Dual-band, 802.11ac Wave 1 access point with an omnidirectional super antenna and 3x3 MIMO functionality that can reach a 1.75 Gbps aggregate throughput rate.


The Access Point AC Mesh Pro (UAP AC Mesh Pro) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.75 Gbps aggregate throughput rate with its 5 GHz (3x3 MIMO) and 2.4 GHz (802.11n) bands. The UAP AC Mesh Pro also features a proprietary, omnidirectional super antenna to provide exceptional 360° coverage, as well as symmetrical long-range transmission up to 183 meters. This access point is powered with PoE and is equipped with (2) GbE RJ45 ports to support multiple high-speed LAN connections. The UAP AC Mesh Pro can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.


Features:

  • 802.11ac Wave 1 WiFi technology
  • 5 GHz (3x3 MIMO) band with a 1.3 Gbps throughput rate
  • 2.4 GHz (802.11n) band with a 450 Mbps throughput rate
  • Powered with PoE*

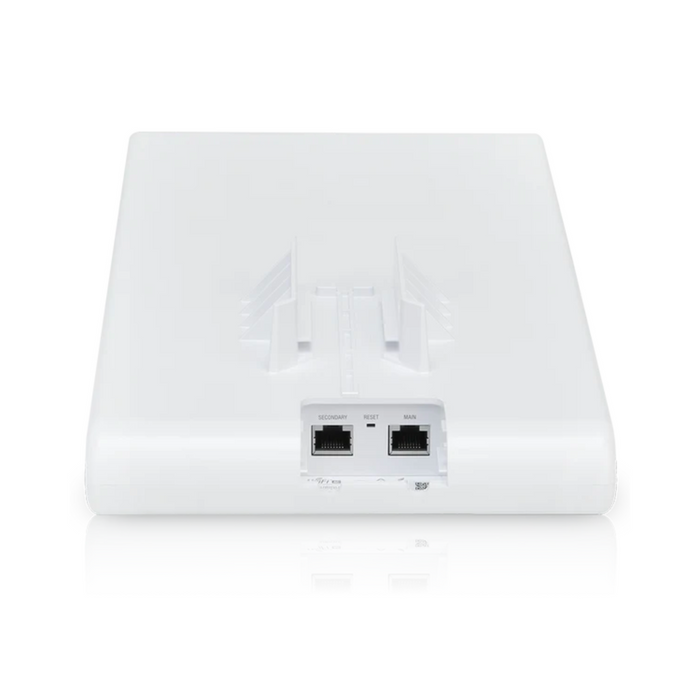

  • (2) GbE RJ45 ports
Product Specifications:
  • Dimensions: 13.51"x7.13"x 2.37" (343.2mmx181.2mmx 60.2mm)
  • Weight: 633 g (1.40 lbs)
  • Networking Interface: (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57 VDC)
  • Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)
  • Maximum Power Consumption: 9 W
  • Maximum TX Power: 2.4GHz: 22dBm. 5GHz: 22dBm
  • Antennas: (3) Internal Dual-Band Antennas, 8dBi
  • Wi-Fi Standards: 802.11a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: Wall/Pole (Pole Kit Included)
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Certifications: CE, FCC, IC
Advanced Traffic Management
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+'
Supported Data Rates (Mbps)
  • 802.11ac: 6.5 to 1300 Mbps (MCS0 - MCS9 NSS1/2/3/, VHT 20/40/80)
  • 802.11n: 6.5 to 450Mbps (MCS0 - MCS23, HT 20/40)
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11b: 1, 2, 5.5, 11Mbps
Product Includes:

(1) UniFi AP Mesh Pro

(1) Mounting Bracket

(2) Pole Clamps

(4) Carriage Bolts

(4) Flange Nuts

(4) Screws

(4) Screw Anchors

(1) Gigabit PoE Adapter (48V, 0.5A)

(1) Power Cord

(1) Quick Start Guide
