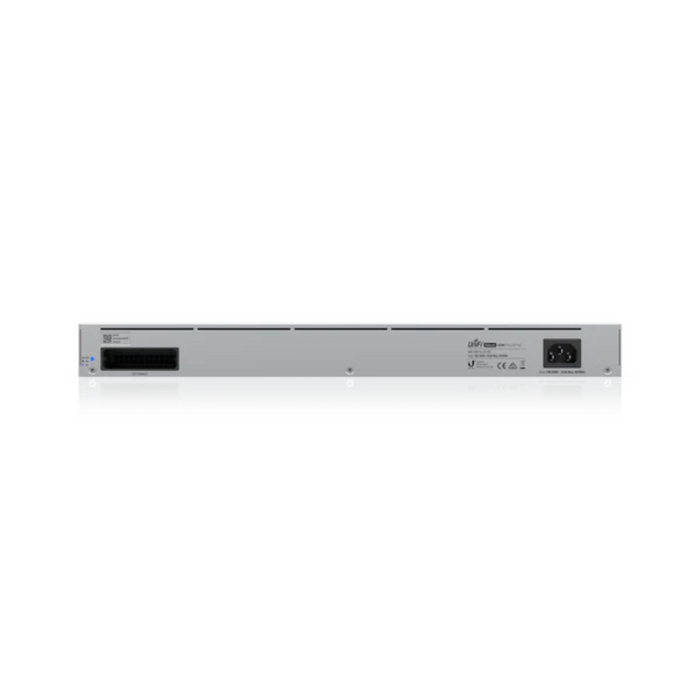

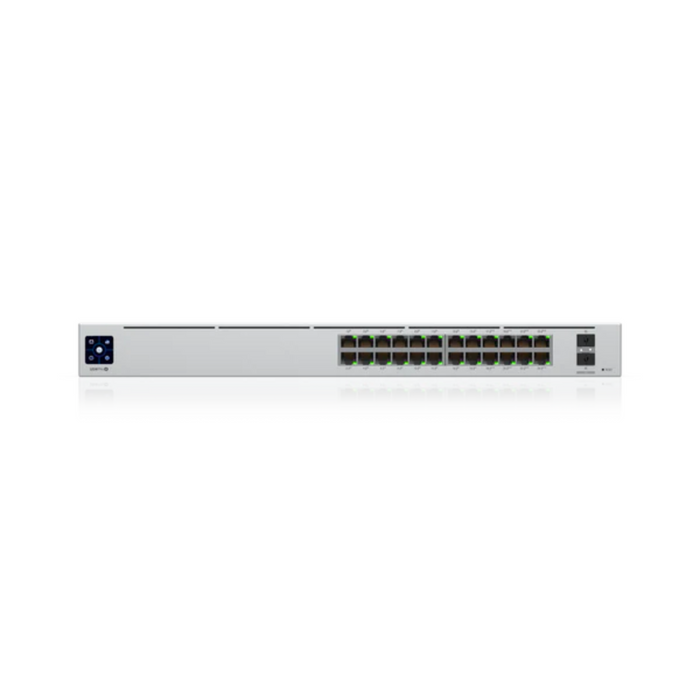

Ubiquiti UniFi Pro 24-Port 802.3at/802.3bt 2-Port SFP+ PoE++ Switch Gen2

USW-Pro-24-PoE by Ubiquiti Networks
Sold out
Original price $699.00 - Original price $699.00
Original price
$699.00
$699.00 - $699.00
Current price $699.00

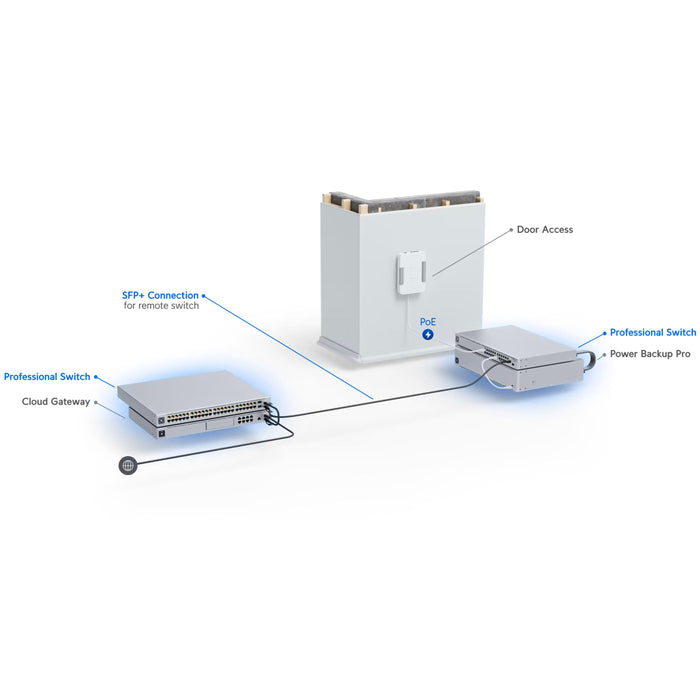

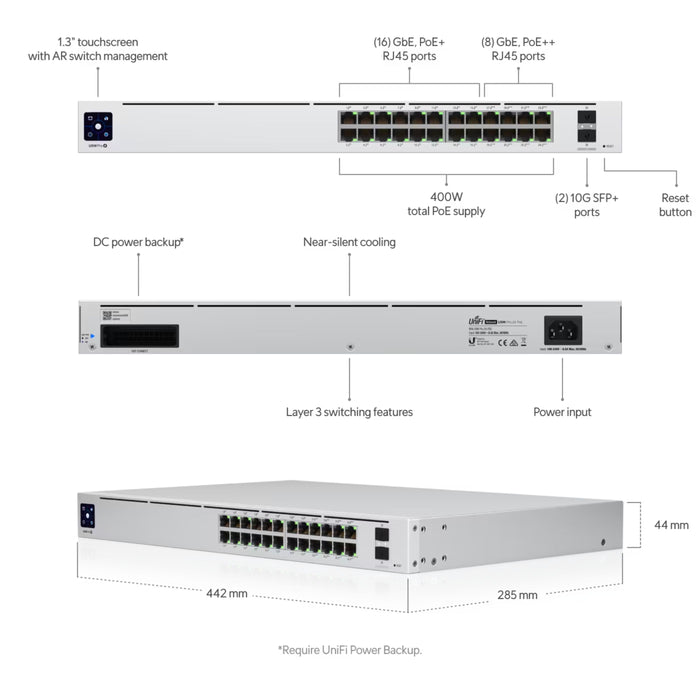

Ubiquiti UniFi Pro 24-Port 802.3at/802.3bt 2-Port SFP+ PoE++ Gen2 switch is a configurable gigabit layer 2 and layer 3(included in future firmware upgrade) switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE ++ RJ45 Ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.


Product Specifications:

  • Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
  • Weight: 4.30 kg (9.48 lb) with bracket 4.39 kg (9.68 lb)
  • Networking: (24) 10/100/1000 RJ45 Ports(2) 1/10G SFP+ Ethernet Ports
  • Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 44 Gbps
  • Switching Capacity: 88 Gbps
  • Forwarding Rate: 65.472 Mpps
  • Universal Input: 100-240VAC, 50/60 Hz
  • USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A
  • Power Supply: AC/DC, Internal, 450W
  • Voltage Range: 100 to 240VAC
  • Max Power Consumption (excluding PoE output): 50W
  • LEDs:
  • System: Status
  • RJ45 Data Ports: PoE; Speed/Link/Activity
  • SFP+ Data Ports: Link/Activity
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC
  • Total Available PoE: 400W
  • PoE Interfaces
  • Ports 1-16: PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • Ports 17-24: 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
  • Max PoE Wattage per Ports by PSE
  • Voltage Range:
  • 802.3af Mode
  • 802.3at/bt Mode

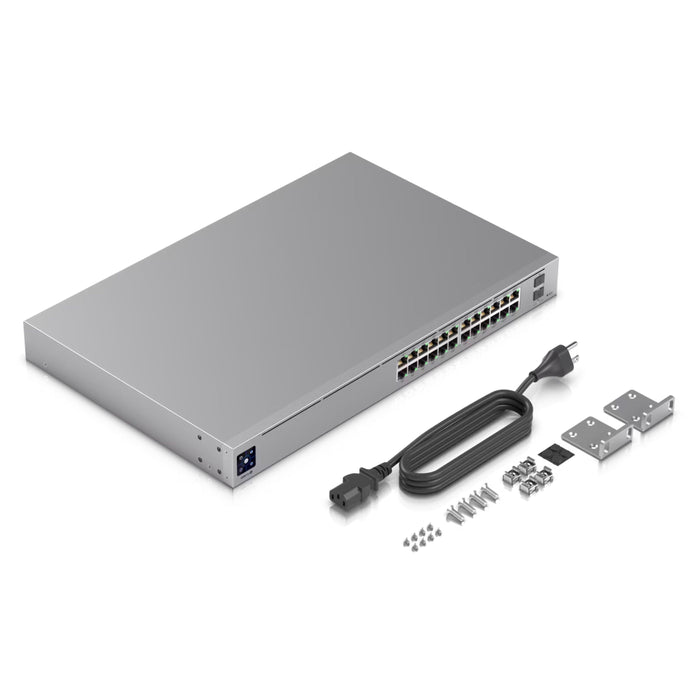

Product Includes:


(1) Ubiquiti UniFi Pro 24 Gen2 Switch

(1) Rack ears

(1) Power Cord


Product Documentation:
