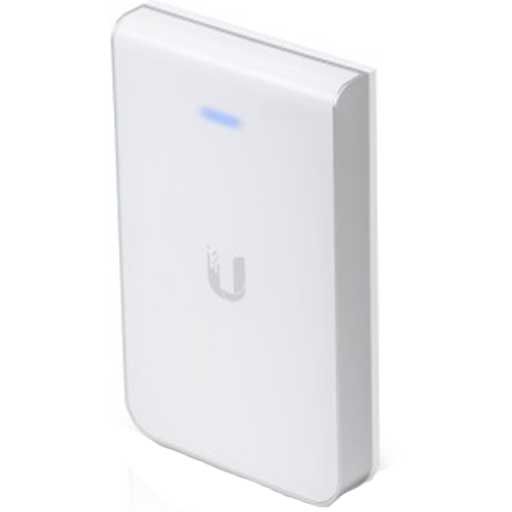

Ubiquiti UniFi In-Wall 2.4GHz / 5GHz AC Access Point (5-Pack)

UAP-AC-IW-5 by Ubiquiti Networks
Original price $489.00 - Original price $489.00
Original price
$489.00
$489.00 - $489.00
Current price $489.00

This product is a 5-pack and does not come with PoE injectors


Product Specifications:

  • Dimensions: 5.5"x3.41"x1.01" (139.7mmx86.7mmx25.75mm)
  • Weight: 200g (6.43oz)
  • Networking Interface: (3) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC
  • Power Supply: UniFi Switch (PoE)
  • Power Save: Supported
  • PoE Out: 48V Pass-Through (Pins 1,2+; 3,6-)
  • Maximum Power Consumption: 7W
  • Maximum TX Power:
  • 2.4GHz: 20dBm
  • 5GHz: 20dBm
  • Antennas: (1) Dual-Band Antenna, Single-Polarity
  • 2.4GHz: 1dBi
  • 5GHz: 2dBi
  • Wi-Fi Standards: 802.11 a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: 1-Gang Electrical Wall Box (Not Included)
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
Advanced Traffic Management:
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 250+
