Ubiquiti UniFi Directional Dual-Band Antenna for UAP-AC-M

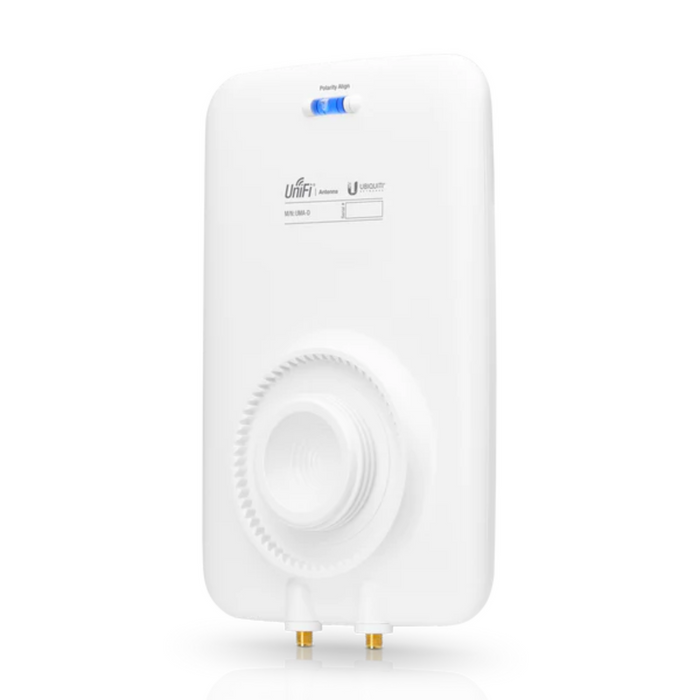

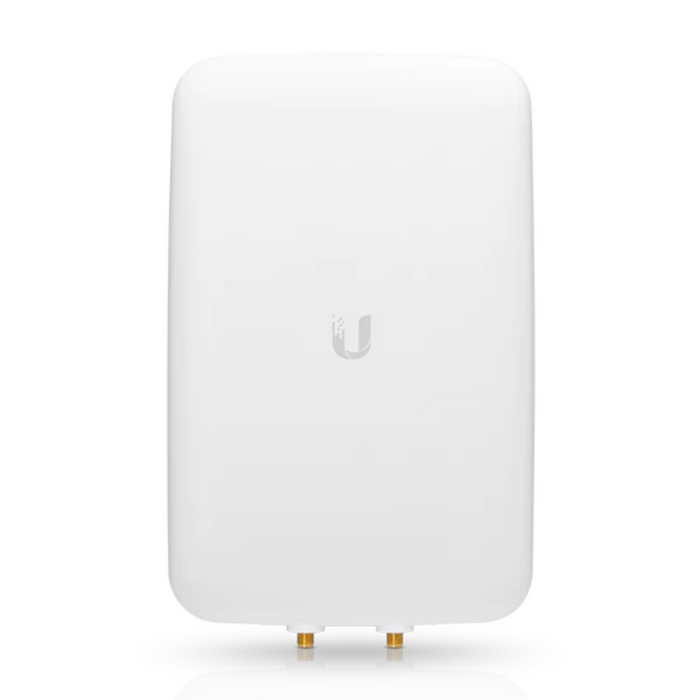

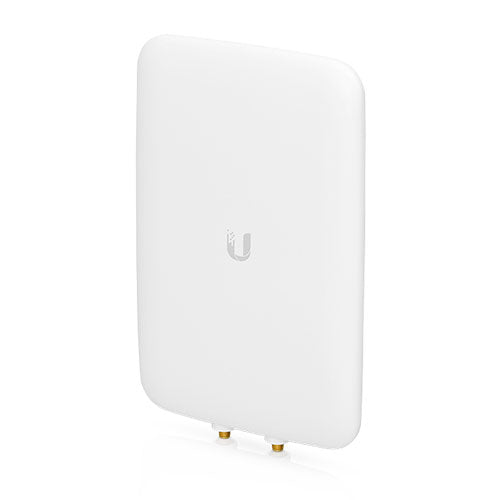

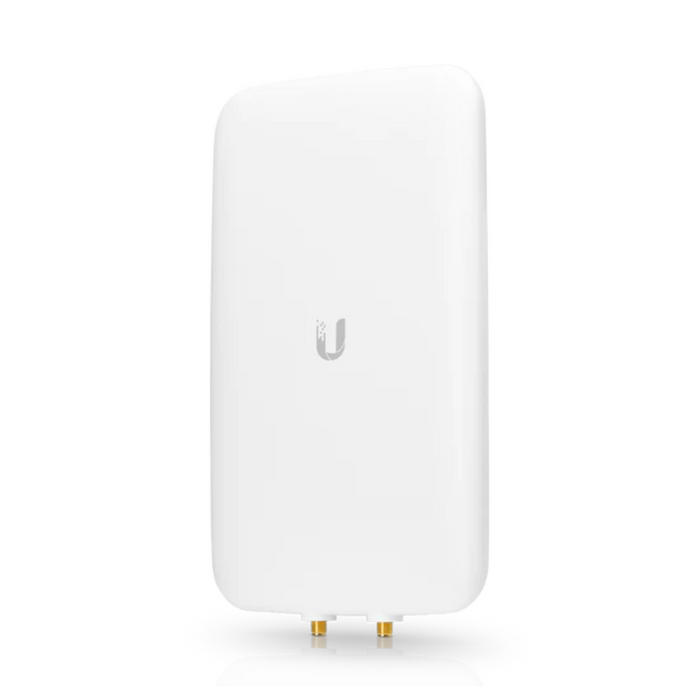

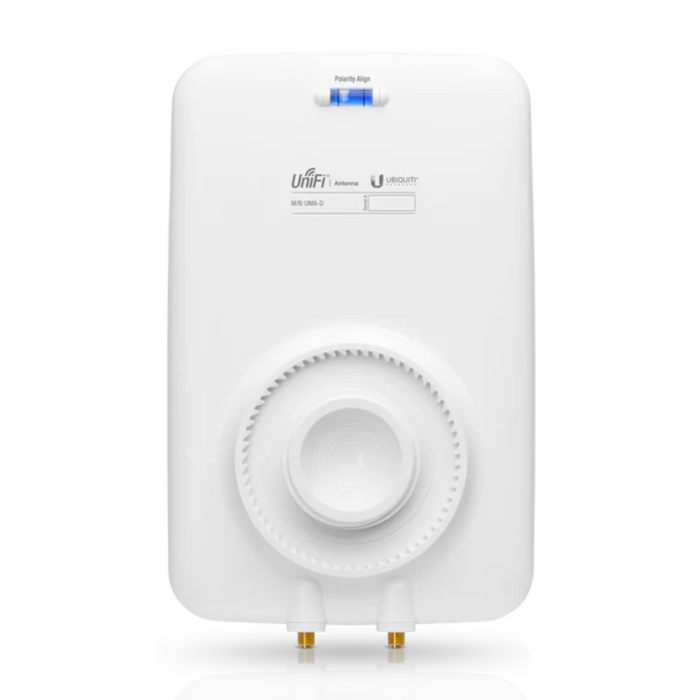

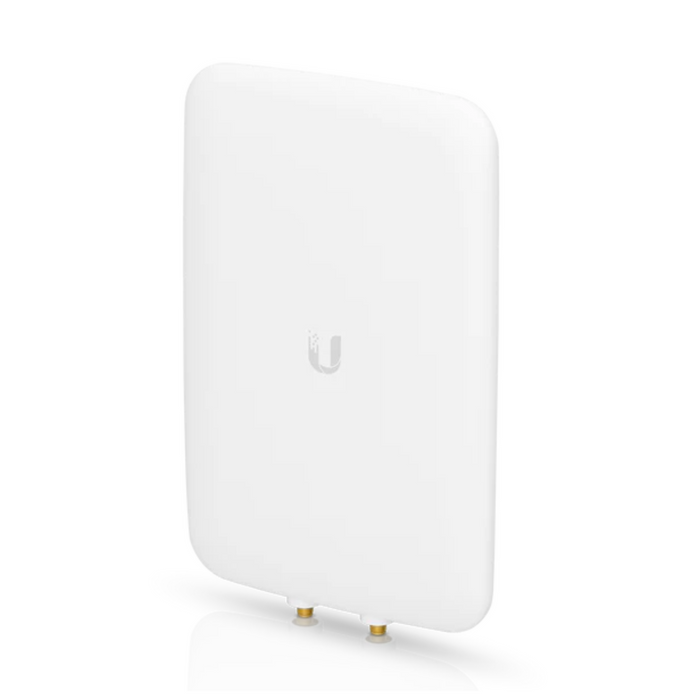

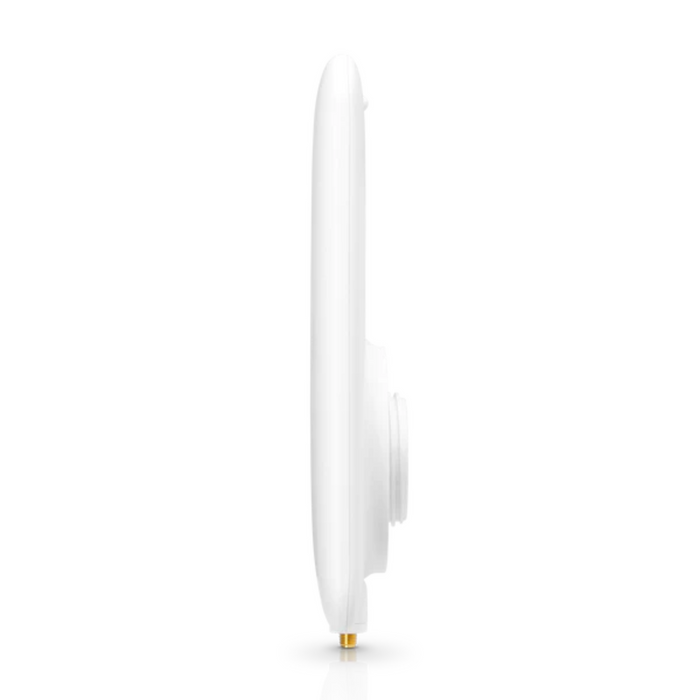

The Ubiquiti UniFi Antenna UMA-D, is an optional mesh antenna designed to work with the Ubiquiti UniFi AC Mesh AP, the UAP-AC-M. With dual-band support, the Ubiquiti UMA-D expands range coverage and provides customized pattern shaping. It is available in a single and 5-pack.
- Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
- Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
- Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
- Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
- Enclosure: Outdoor UV Stabilized Plastic

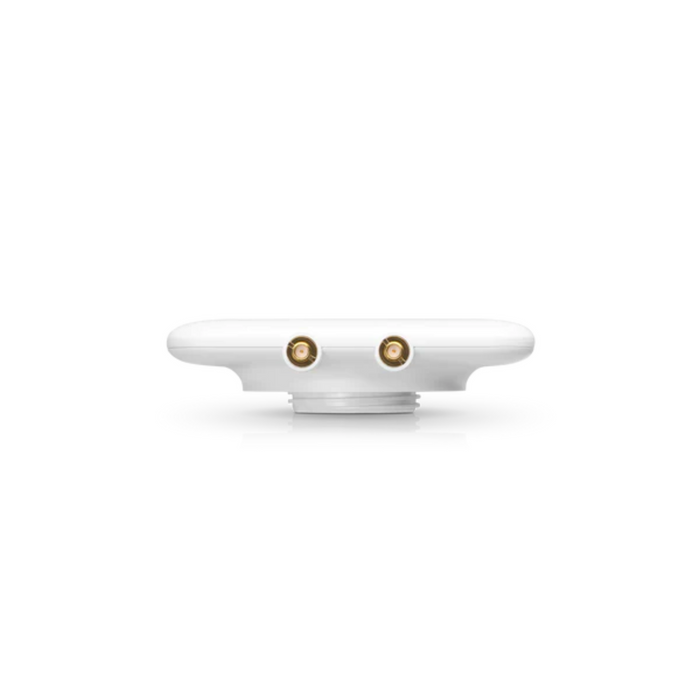

- RF Connections: (2) RP-SMA
- Supported Frequency Range: 2.4 - 2.5GHz, 5.1 - 5.9GHz
- HPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
- VPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
- Elevation Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
- Maximum VSWR: 2:1
- Polarization: Dual-Linear
- Cross-Pol Isolation: 2.4GHz - 25dB / 5Ghz - 30dB
- Antenna Gain: 2.4GHz - 10dBi / 5Ghz - 15dBi
- Mounting: Wall/Pole (kits included)
- Dimensions: 7.93 x 5.04 x 1.28"
(1) Wall-Mount Kit
(1) Lock Ring
(1) Ball Joint Mount
(1) Mount Assembly
