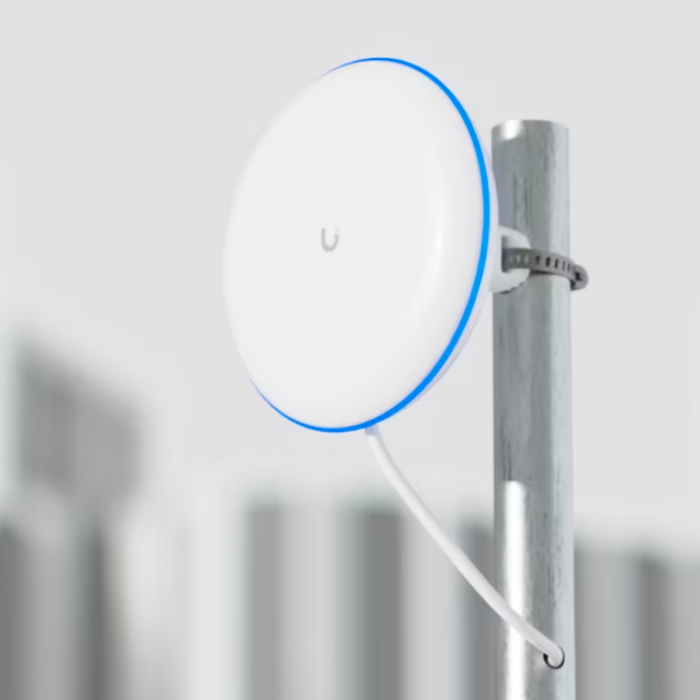

Ubiquiti UniFi Building-to-Building Bridge 1+Gbps 60GHz/5GHz Radio Redundancy 2-Pack

Ubiquiti UniFi Building-to-Building Bridge 1+Gbps 60GHz/5GHz Radio Redundancy 2-Pack

UBB-US by Ubiquiti Networks
Ubiquiti Networks UBB-US Datasheet
Sold out
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

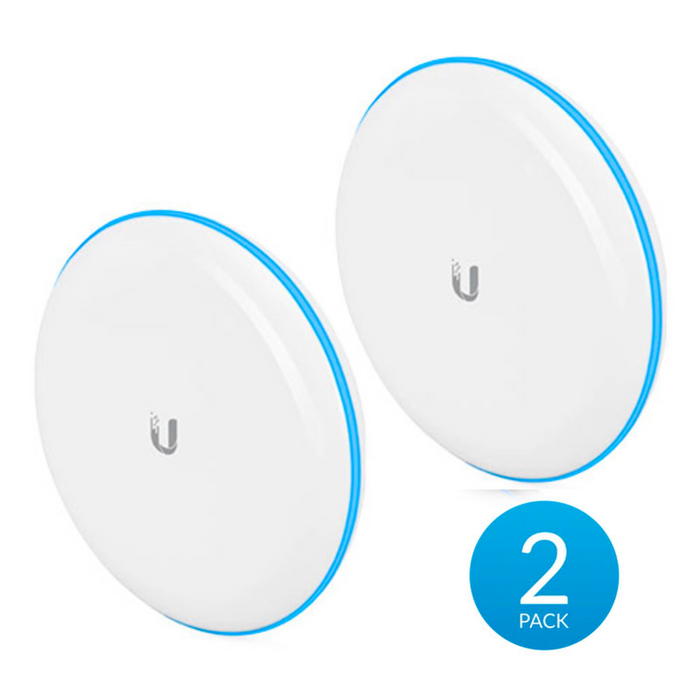

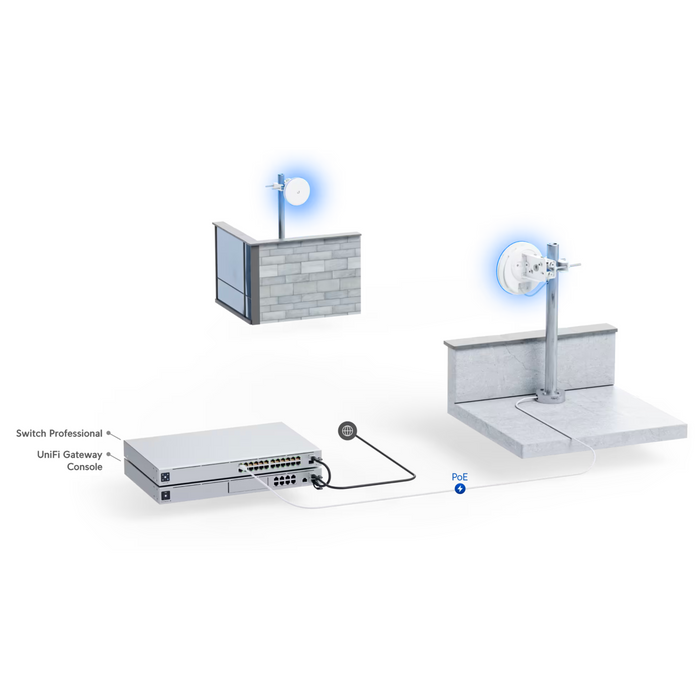

Ubiquiti UniFi Building-to-Building Bridge 1+Gbps 60GHz/5GHz radio redundancy is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere. 2-Pack

Product Specifications:

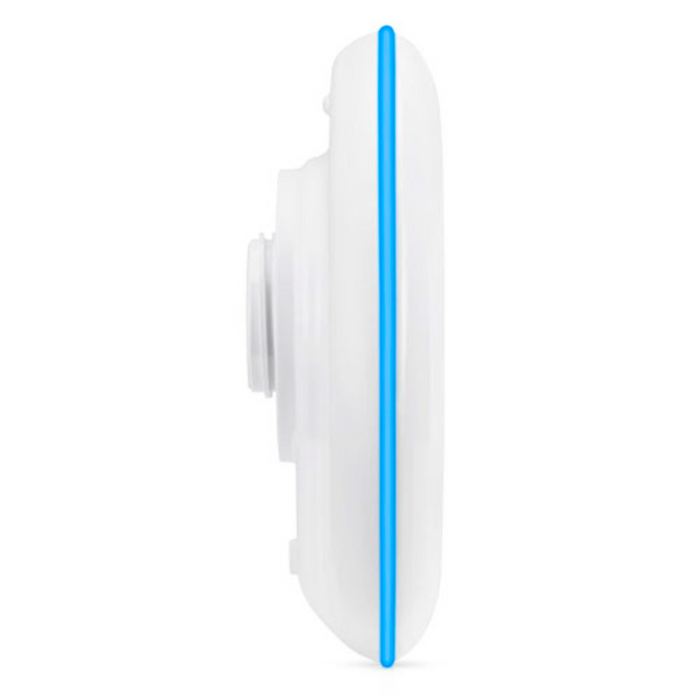

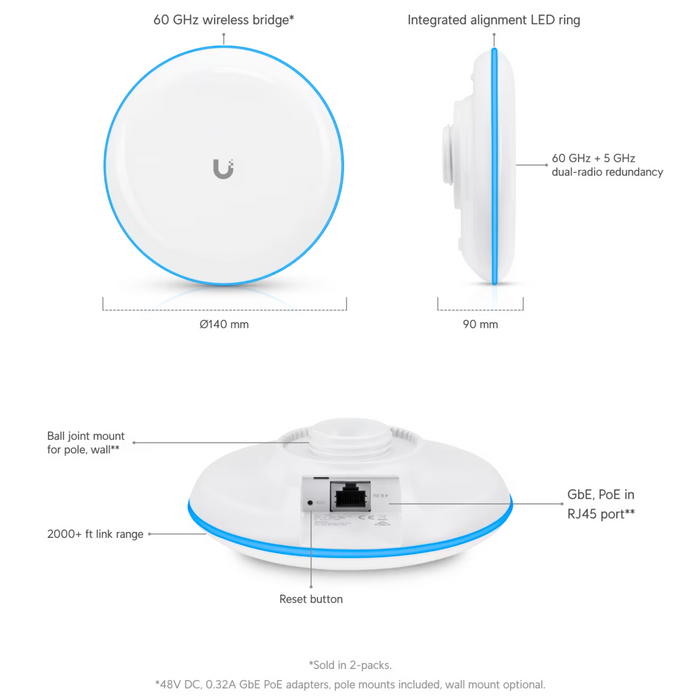

  • Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
  • Weight: 376 g (13.3 oz)
  • Antenna Gain: 2.4 GHz : 2dBi Bluetooth (worldwide), 5 GHz: 10 dBi, 60 GHz: 17.2 dBi,
  • GPS: Yes
  • Max. TX Power: 25 dBm (5 GHz)

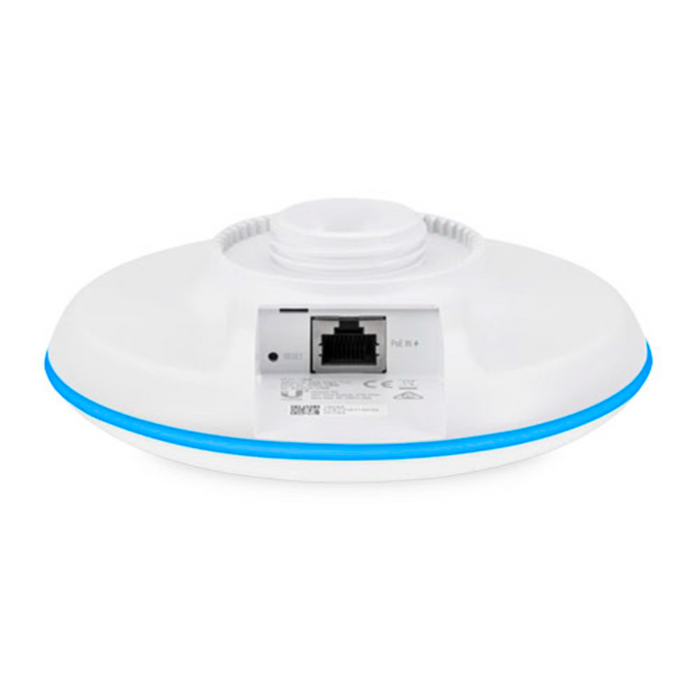

  • Interfaces Networking Management: (1) 10/100/1000 Ethernet Port Bluetooth
  • Enclosure: UV-Resistant Poly-carbonate
    • Power Method:
  • 802.3af Supported
  • Passive Power over Ethernet (48V)
  • Power Supply: 48V, 0.32A Gigabit PoE Adapter (Included)
  • Max Power Consumption: 11W
  • Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
  • Wind Survivable: 200 km/h (125 mph)

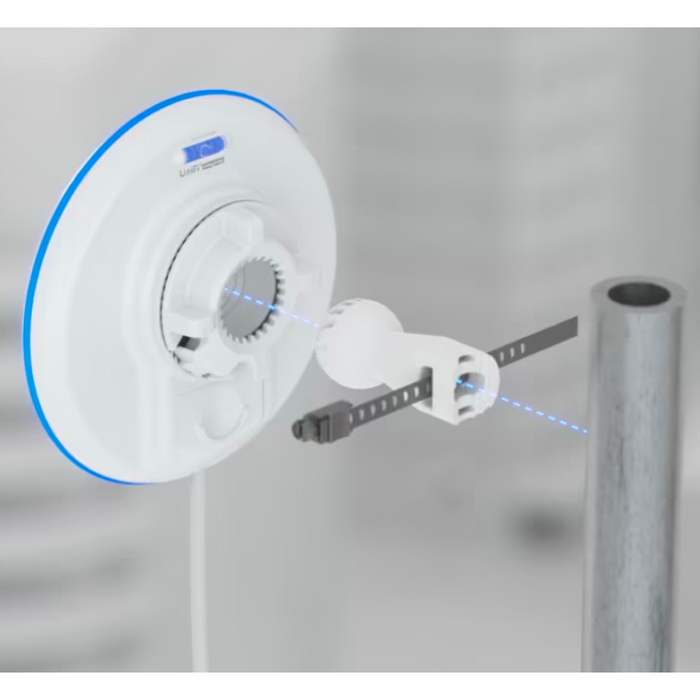

    • Mounting:
  • Pole-Mount (Kit Included)
  • Wall-Mount (Not Included)
  • ESD/EMP Protection: ± 24kV Contact/Air
  • Operating Temperature: -40 to 70° C (-40 to 158° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
  • Worldwide: 5150 - 5875, 57,000 - 66,000,
  • US/CU: U-NII-1: 5150 - 5250, U-NII-3: 5725 - 5850, 57,000 - 66,000
  • Worldwide: 2400 - 2483.5

    •

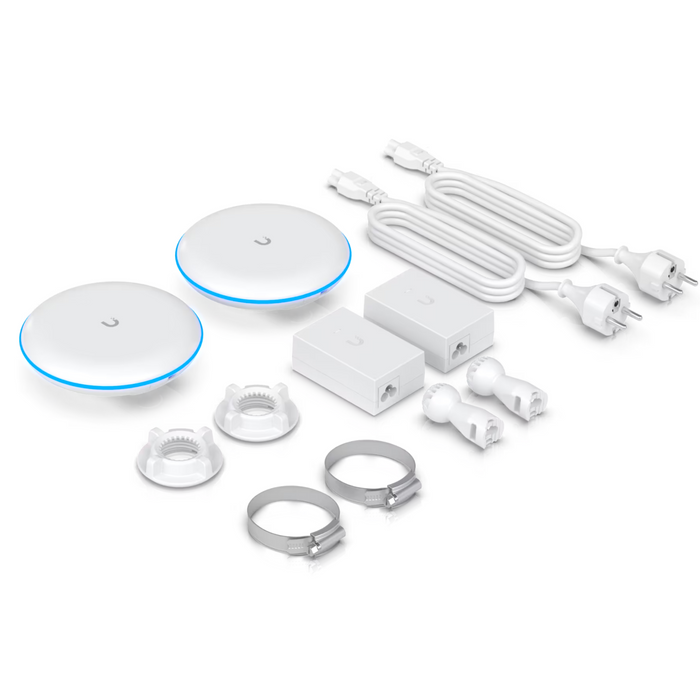

    Product Includes:
    (2) UniFi Building Bridge
    (2) Ball joint mount
    (2) Lock ring
    (2) Metal strap
    (2) Gigabit PoE (48V, 0.32A) with mounting bracket
    (2) Power cord
