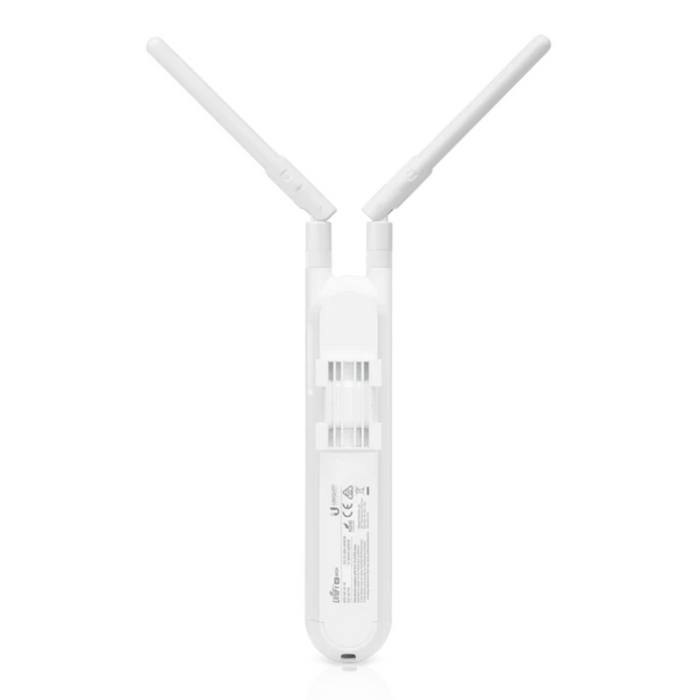

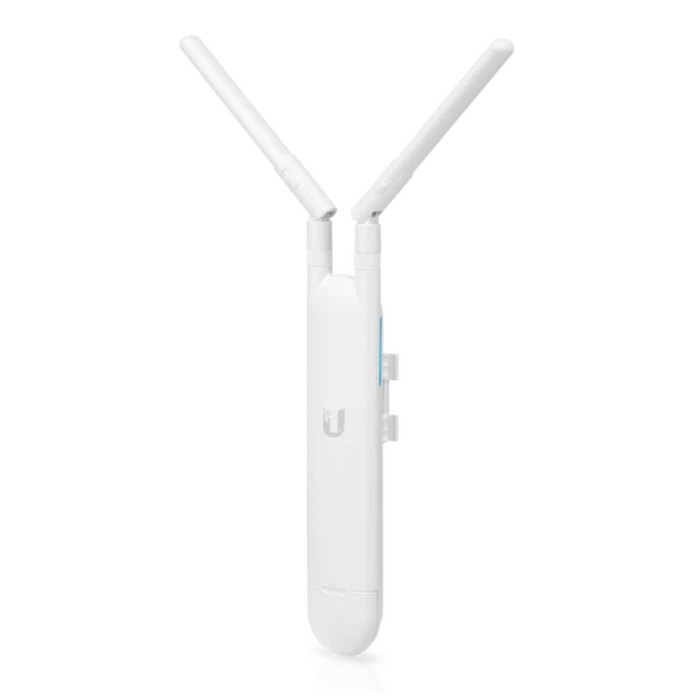

Ubiquiti UniFi AC Mesh Indoor/Outdoor Access Point US [UAP-AC-M-US]

UAP-AC-M-US by Ubiquiti
Sold out
Original price $99.00 - Original price $99.00
Original price $99.00
$99.00
$99.00 - $99.00
Current price $99.00

Outdoor-ready, dual-band WiFi 5 access point with detachable antennas.

  • 2.4/5 GHz WiFi 5 bands
  • 1.1 Gbps aggregate throughput rate

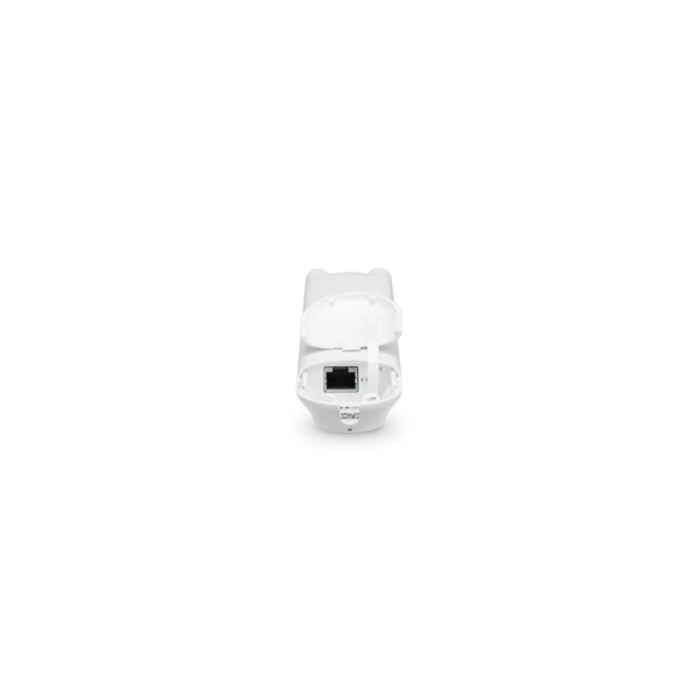

  • (1) GbE RJ45 port (PoE In)*

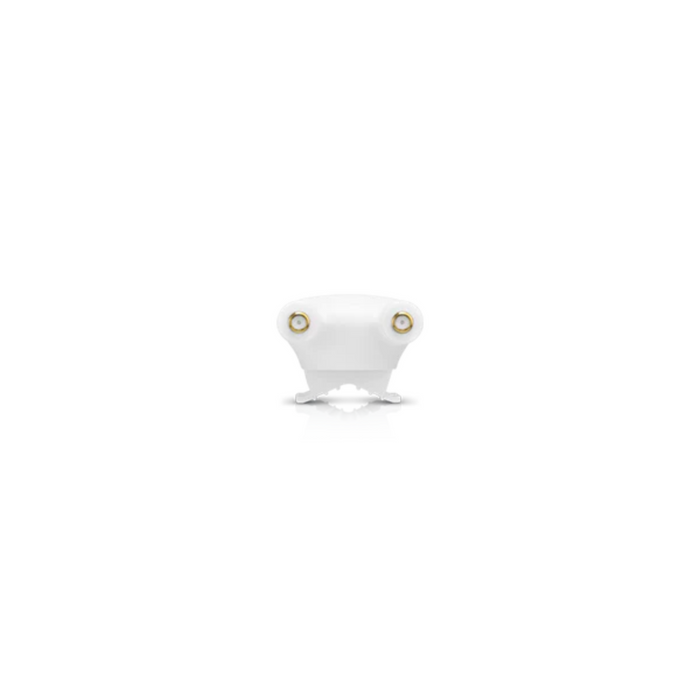

  • (2) RP-SMA connections for use with third-party antennas

Product Features:

  • Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
  • Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
  • LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
  • Versatile Mounting: UniFi AC Mesh AP can be mounted on a wall, pole, or fast mount of a Ubiquiti high-gain antenna. (all accessories are included).
  • Multiple Power Options: Compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative switch, EdgePoint EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter
  • Antenna Options: Use the included omni antennas,or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
Product Specifications:
  • Dimensions: 13.9"x1.81"x1.35 " (353mmx46mmx34.4mm)
  • Weight: 152g (5.36 oz) with Antennas
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Power Method: 24V Passive PoE (Pairs 4, 5+; 7,8 Return), 802.3af Alternative A (Pairs 1, 2+; 3,6 Return), (Supported Voltage Range: 44 to 57 VDC)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Save: Supported
  • Maximum Power Consumption: 8.5W
  • Maximum TX Power: 2.4GHz: 20dBm, 5 GHz: 20dBm
  • Antennas: (2) External Dual-Band Omni Antennas 2.4GHz: 3dBi, 5GHz: 4dBi
  • Wi-Fi Standards: 802.11 a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: Wall/Pole/Fast-Mount (Kits Included)
  • Operating Temperature: -30 to 70°C (-22 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Certifications: CE, FCC, IC
Advanced Traffic Management
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+
Supported Data Rates (Mbps)
  • 802.11ac: 6.5 to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
  • 802.11n: 6.5 to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
