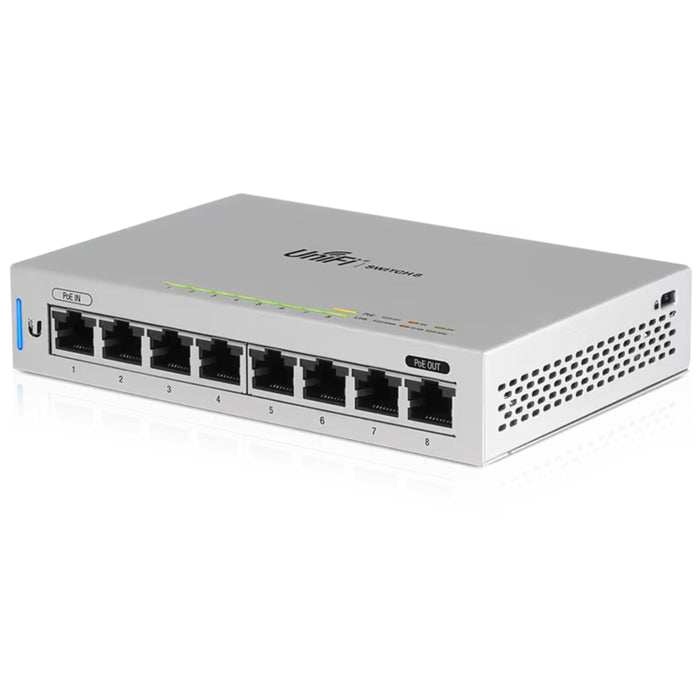

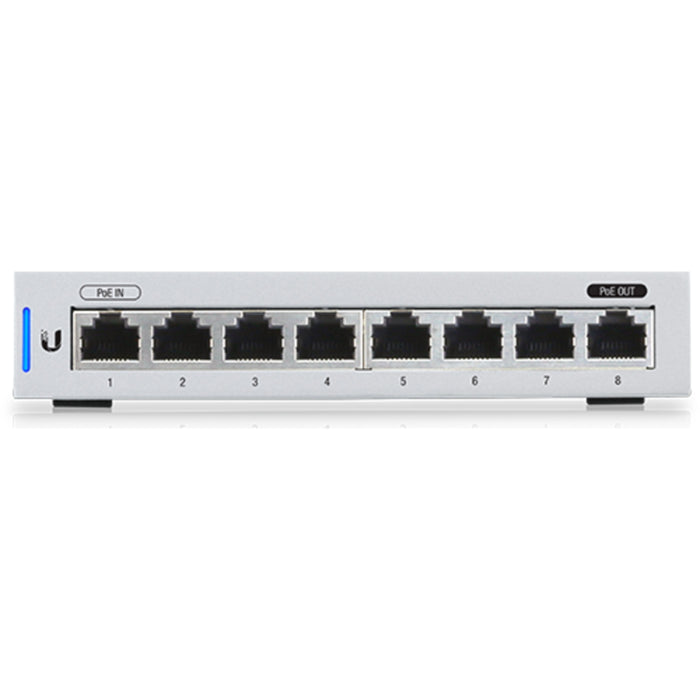

Ubiquiti UniFi 8-Port Managed Gigabit Switch

Sold out
Original price $109.25 - Original price $109.25
Original price
$109.25
$109.25 - $109.25
Current price $109.25

The Ubiquiti Networks UniFi US-8 model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has a PoE Passthrough port. It's output voltage and power rely directly on then power input.


Product Features:
  • (8) Gigabit RJ45 Ports
  • (1) PoE Passthrough Port
  • Non-Blocking Throughput: 8 Gbps
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Maximum Power Consumption: 12W
  • PoE or DC Input Option
Product Specifications:

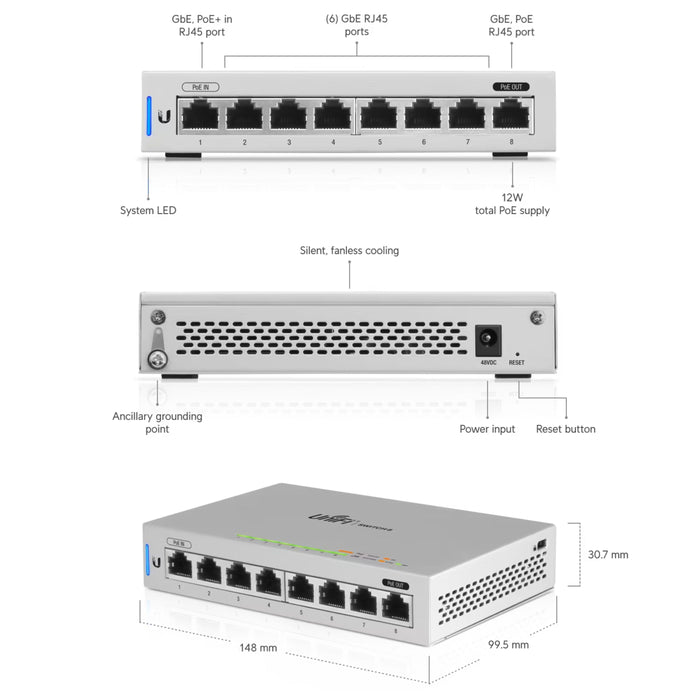

  • Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21 ")
  • Weight: 422 g (15.24 oz)
  • Enclosure Characteristics: SGCC Steel
  • Total Non-Blocking Throughput: 8 Gbps
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Max. Power Consumption: 12W (Excluding PoE Output)
  • Max. Passive PoE Wattage per Port:
        PoE Mode 1: 12W @ 802.3at
        PoE Mode 2: 12W @ 48V
        PoE Mode 3: 12W @ 24V
        DC Input Mode: 12W @ 48V or 12W @ 24V
  • Passive PoE Voltage Range: Depends on Power Source
  • Power Method:
        (1) DC 48V or 24V, Max. 1.25A
        (1) PoE Input, 802.3af/at (Pins +1,2; -3,6); Passive 24V (Pins +4,5; -7,8)
  • Supported Voltage Range:
        DC: 48V or 24V
        48V Mode: 56V to 40V
        24V Mode: 27V to 20V
  • Power Supply: External AC/DC Adapter, 48V, 0.5A
  • LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
  • Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
  • PoE Interface (Port 1):
        PoE Mode 1: 802.3af/at (Pins +1,2; -3,6)
        PoE Mode 2: Passive 24V or 48V (2-Pair Pins +4,5; -7,8)
        PoE Mode 3: Passive 24V (4-Pair Pins +1,2; -3,6 and +4,5; -7,8)
        DC Input Mode: DC Passthrough (Pins +1,2; -3,6)
  • Management Interface: Ethernet In-Band Management
  • ESD/EMP Protection:
        Air: ±24 kV
        Contact: ±24 kV
  • Operating Temperature: -5 to 45°C (23 to 113°F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Certifications: CE, FCC, IC
