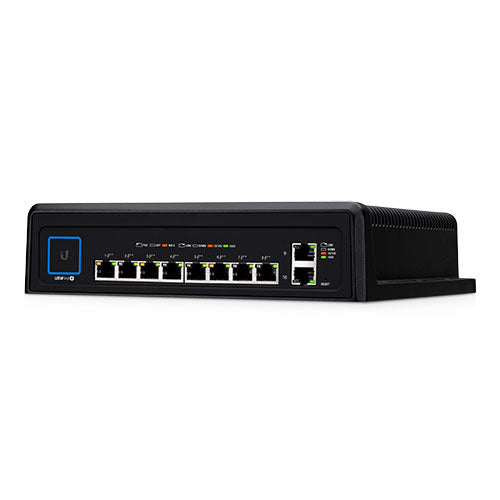

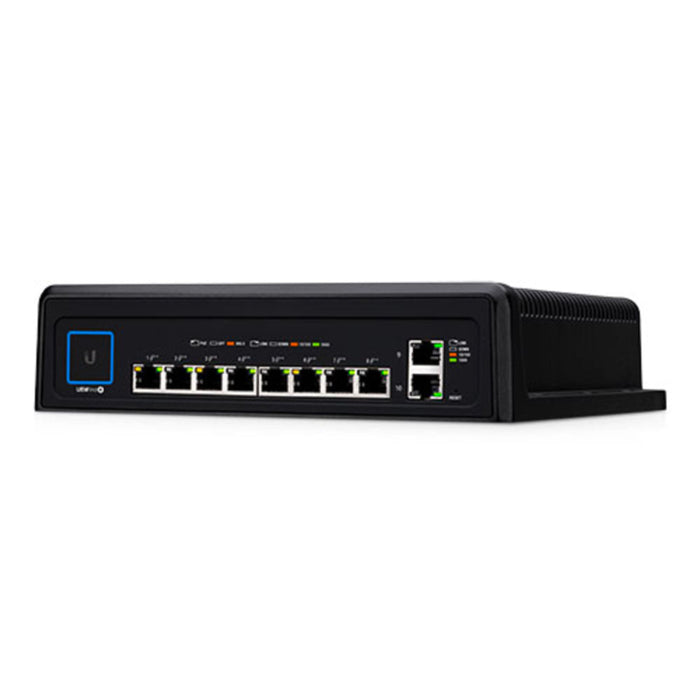

Ubiquiti UniFi 10-Port 802.3bt PoE++ Industrial Switch

USW-Industrial by Ubiquiti Networks
Sold out
Original price $525.00 - Original price $525.00
Original price
$525.00
$525.00 - $525.00
Current price $525.00

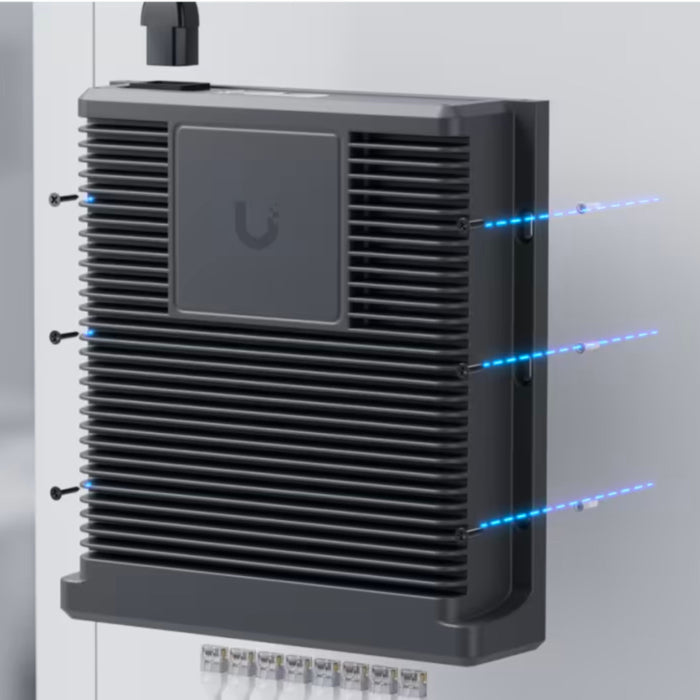

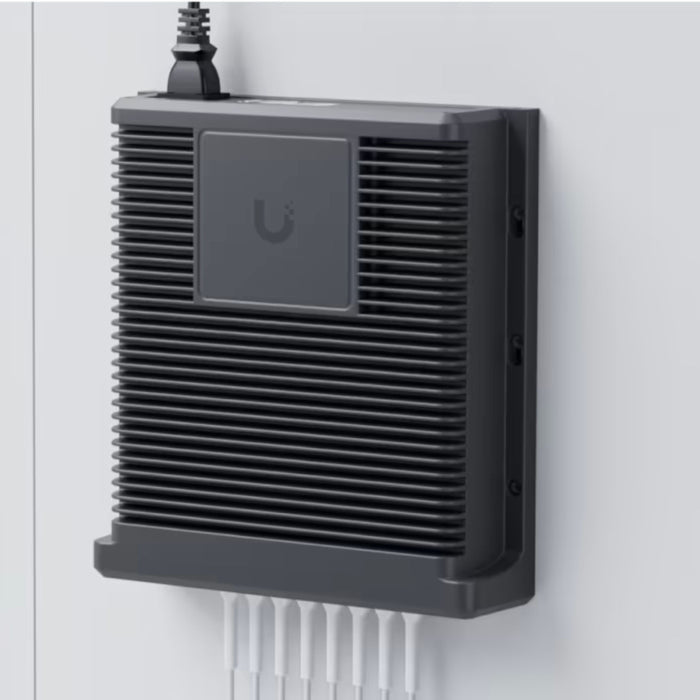

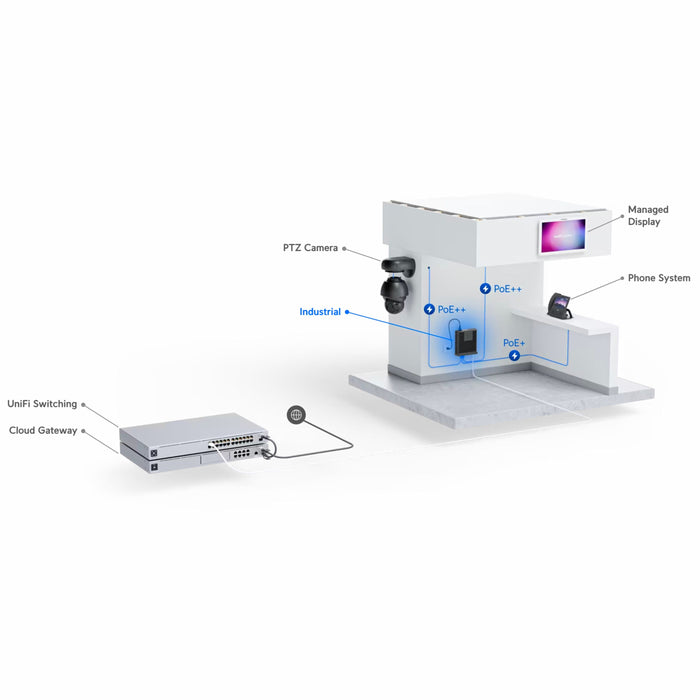

Ubiquiti UniFi 10-Port 802.3bt PoE++ Industrial Switch is a managed Gigabit Layer-2 switch with auto-sensing 802.3bt PoE++ support and it's plenum rated*. It has 10 RJ45 ports total, 8 of which offer PoE++ (up to 60W per port) which is great for powering devices like UniFi LED Panels. Other features include 2 Gigabit Ethernet ports for uplink/downlink use, a 450W power supply, fan-less operation, and a wall-mounted design.

*Plenum rated cabling is required for use in plenum spaces


Product Specifications:

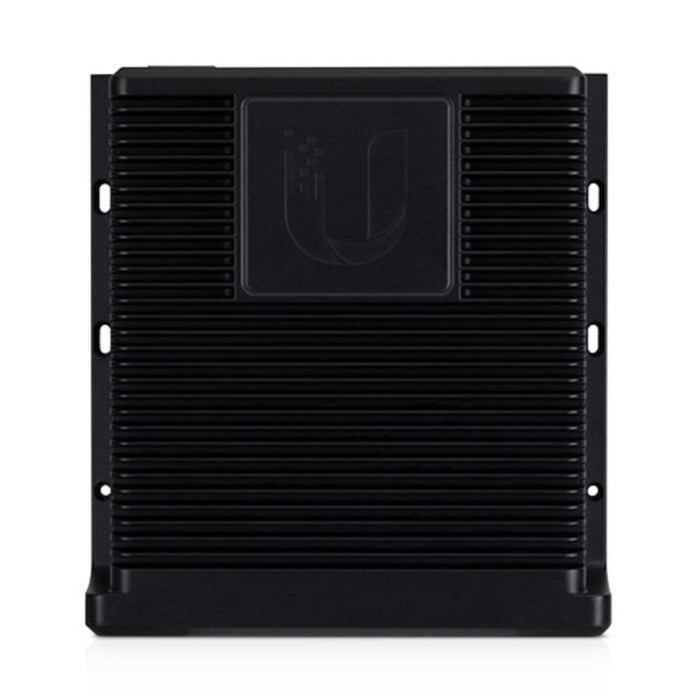

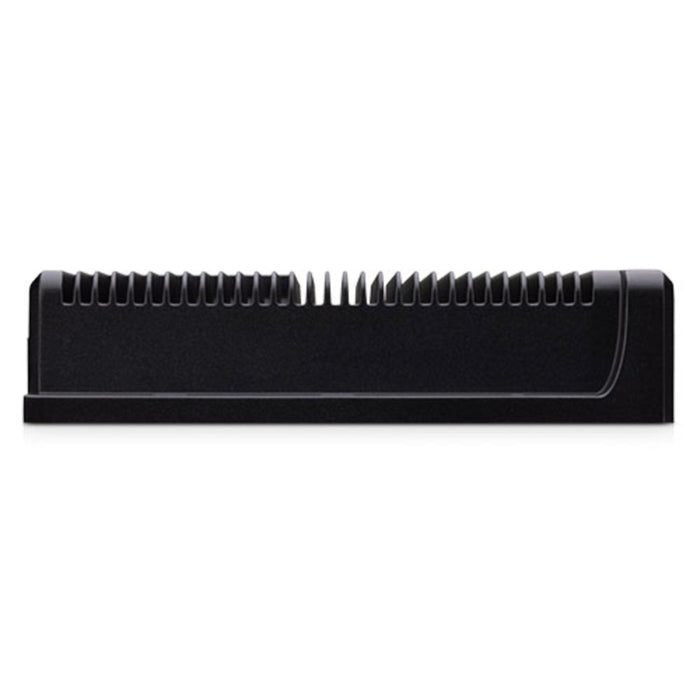

  • Enclosure Characteristics Die-Cast Aluminum (ADC12) with Black Powder Coated Finish

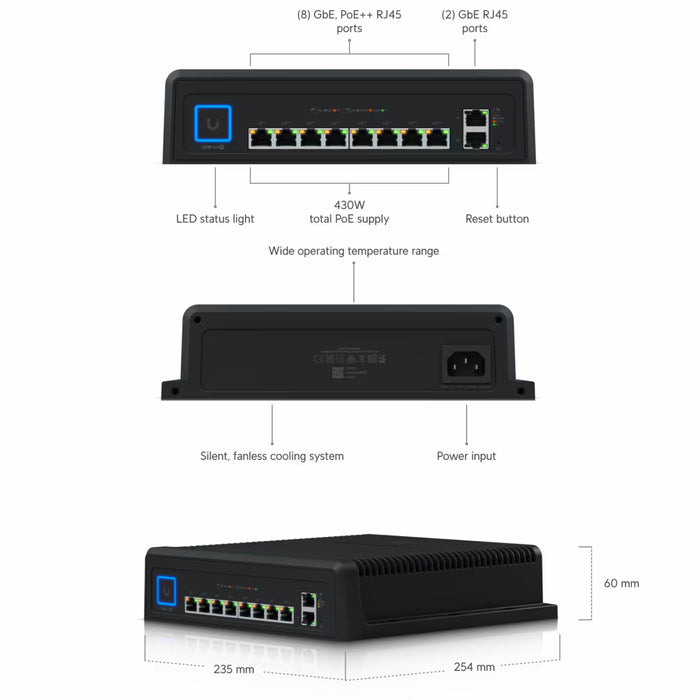

  • Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports , (2) 10/100/1000 RJ45 Ports
  • Management: Ethernet In-Band
  • Total Non-Blocking Throughput 10 Gbps
  • Switching Capacity 20 Gbps
  • Forwarding Rate 14.88 Mpps

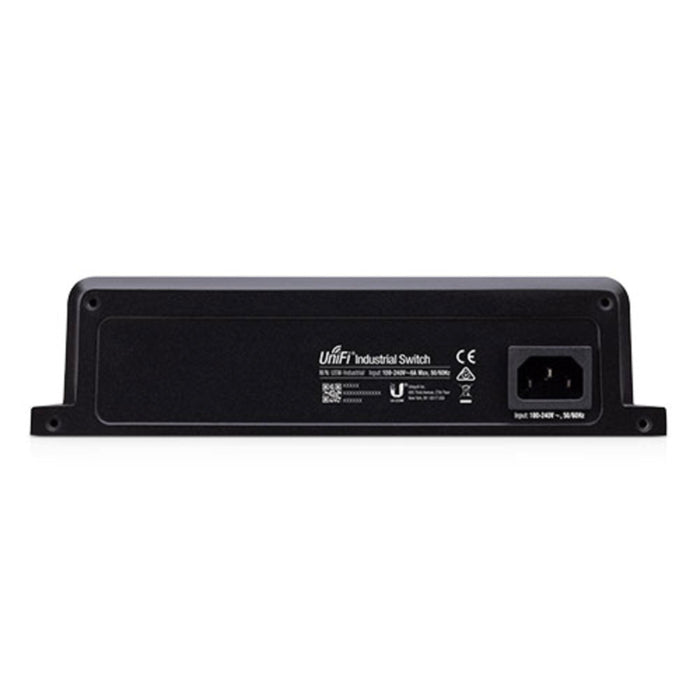

  • Power Method 100 - 240 VAC, 50/60 Hz Universal Input
  • Power Supply AC/DC, Internal, 450W DC
  • Supported Voltage Range AC Input: 100 to 240VAC, Max. 6A
  • Max. Power Consumption (Excluding PoE Output) 20W
  • LEDs: System: Status, RJ45 Ports PoE, Speed/Link/Activity
  • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
  • Shock and Vibration ETSI300-019-1.4 Standard
  • Operating Temperature: Internal AC/DC @ 450W -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W -40 to 60° C (-40 to 140° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Certifications FCC, IC
PoE
  • PoE Interfaces PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
  • Max. PoE Wattage per Port by PSE 802.3bt 60W
  • Voltage Range 802.3 PoE Mode 50-57V
  • Max. Total PoE Power Budget 430W

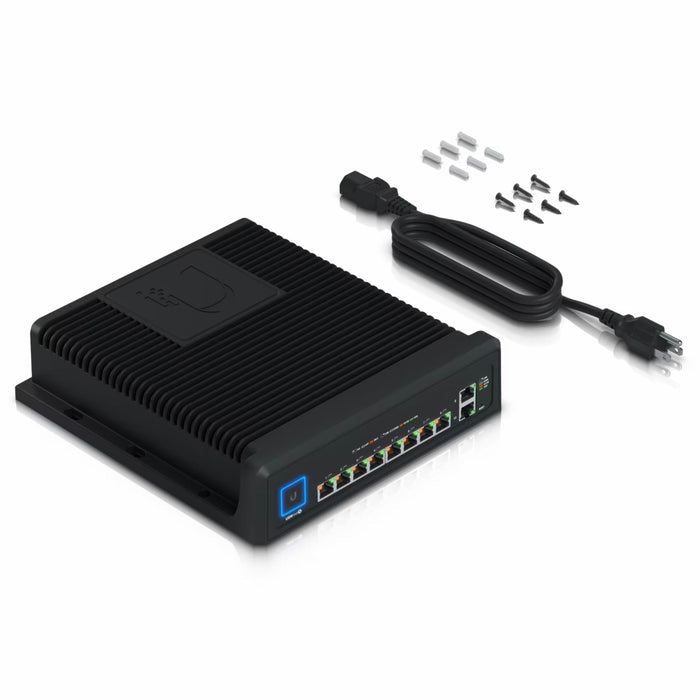

Product Includes:


(1) Ubiquiti UniFi Industrial Switch

(1) User Guide
