Ubiquiti UISP Switch Pro [UISP-S-Pro]

• (24) GbE RJ45 ports, including (16) with 27V passive PoE output
• (4) SFP+ ports
• 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
• Port isolation, speed limiting, and DHCP snooping functionality
• 1.3" LCM color touchscreen
• Additional Power TransPort input for DC redundancy
• Easy Bluetooth setup with the UISP Mobile app

Technical Specifications

Mechanical

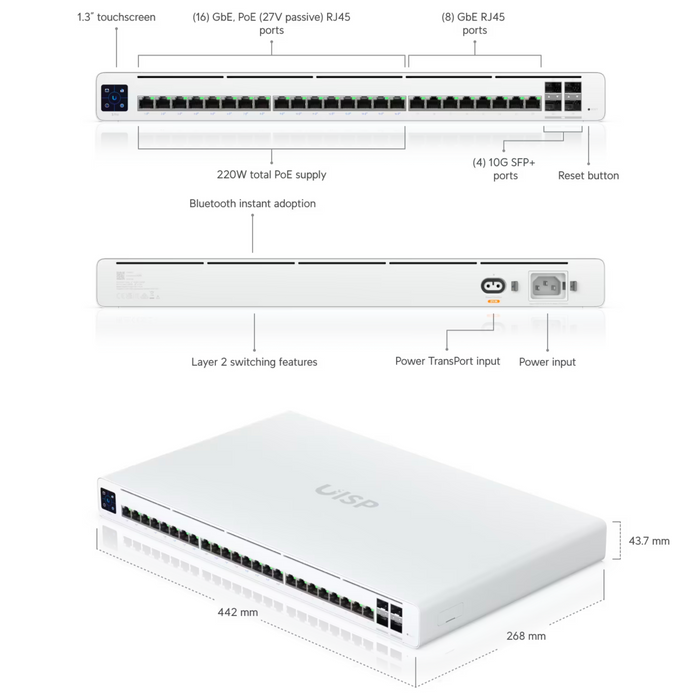

• Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
• Weight: 4 kg (8.8 lb)
• Enclosure materials: SGCC steel, polycarbonate/acrylonitrile butadiene styrene

Hardware

• Total non-blocking throughput: 64 Gbps
• Switching capacity: 128 Gbps
• Forwarding rate: 95.23 Mpps
• Networking interface:
  • (24) GbE RJ45 LAN ports
  • (4) 1/10G SFP+ ports
• Management interface:
  • Ethernet In-band
  • Bluetooth
• Power method:
  • (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
  • (1) Power TransPort DC input 27V DC, 9.3A
• Power supply: AC/DC, Internal, 250W
• Supported voltage range: 100—240V AC
• Max. power consumption:: 30W (Excluding PoE output)
• ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
• LCM display: (1) 1.3" touchscreen
• Operating temperature: -10 to 50° C (14 to 122° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

PoE

• PoE interface: (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
• Total available PoE: 220W
• Max. passive PoE wattage per port: 30W/27V DC
• Passive PoE voltage range: 27V DC

LEDs

• RJ45 data ports:
  • PoE
  • Speed/link/activity
• SFP+ data ports: Speed/link/activity

Software

• Management application: UISP: Version 1.5.7 and later
